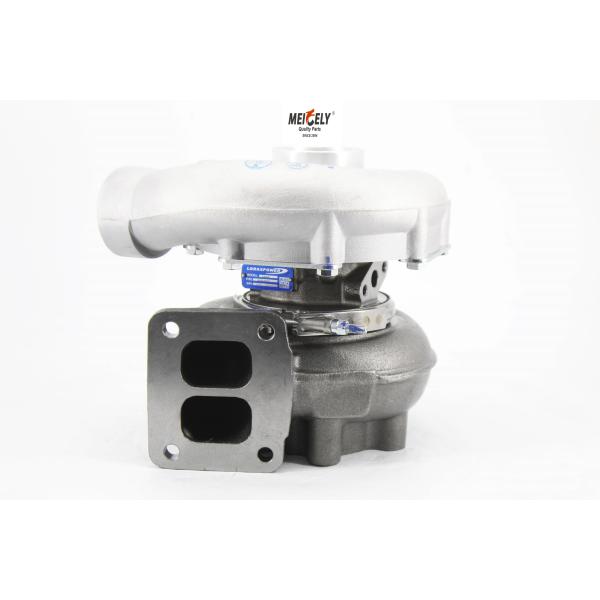

Use for rvi DG290 Truck TA4505 Diesel Engine Turbocharger 466200-0015
Specification:
| Specification As Follows | |
| OE No. | 466200-0015 |
| Material | Steel |
| Turbo Model | TA4505 |
| Engine | MIDR-062045 |
| Displacement | 9.8L, 9840 ccm, 6 Cylinder |
| RPM | 2200 |
| KW | 291 |
| Angle α (compressor housing) | 246º |
| Angle β (turbine housing) | 156º |
| Turbine Housing AR | 1.05 |
Description:
| Part Number | 466200-5015S |
| Previous Version | 466200-0015, 466200-0014, 466200-0019 |
| OE number | 5000670625, 5000670626 |
| Description | Truck |
| CHRA | 441398-0021 (441398-5021S) |
| Turbo Model | TA4505 |
| Engine | MIDR-062045 |
| Displacement | 9.8L, 9840 ccm, 6 Cylinder |
| RPM Max | 2200 |
| Fuel | Diesel |
| KW | 291 |
| Angle α (compressor housing) | 246º |
| Angle β (turbine housing) | 156º |
| Bearing Housing | 410310-0001 (410310-0004, 311548)(Oil Cooled)(1900011222) IN STOCK |
| Turbine Wheel | 441064-0001 (Ind. 82. mm, Exd. 71.60 mm, Trm 11.88, 11 Blades)(1100016046) IN STOCK |
| Comp. Wheel | 441029-0005 (Ind. 58.15 mm, Exd. 84. mm, Trm 48, 8+8 Blades, Superback) IN STOCK |
| Back plate | 442752-0001 (1300016014) IN STOCK |
| Heat shield Number | 410366-0003 (410366-0004, 410366-0007, 410310-0001)(2030016005) IN STOCK |
| Repair Kit | 468132-0000(5000010045B) IN STOCK |
| Turbine Housing | 441041-0004 |
| Compressor Cover | 443211-0005 |
| Turbine Housing AR | 1.05 |
| Gasket (turbine inlet) | 409123-0002(310694) |
| Gasket oil inlet | 210019 (409266-0004, 210019-0000, 201049, 129119, 409266-0003) |
| Gasket (oil outlet) | 210060 (409267-0003, 409267-0002, 210060-0000, 51914, 148062, 311585) |
| Replaced By | 312250, 311785, 43289886602, 312294, 352469S, 312233, 312583, 212232 |
| Manufacturer | Meicely |
Applications
Use for rvi DG290 Truck G260 with MIDR-062045 Engine
Other OE No.
| Other OE No. As Follows | |
| OE Number | Other OE No. |
| 466200-0015 | 5000670625 |
| 466200-0015 | 5000670626 |
| 466200-0015 | 466200-0014 |
| 466200-0015 | 466200-0019 |
|
