Plano Rod Lenses Rod Lens/Cylindrical Lens/Optical Cylindrical Lens For Medical Endoscopes

Categories Light Guide Rod
Brand Name: UNIFORM
Model Number: AUTC-GR-420
Certification: RoHS, ISO9001, CE, TUV
Place of Origin: CHINA
MOQ: 1000pcs
Price: negotiable
Payment Terms: T/T, Western Union
Supply Ability: 300-500pcs/day
Delivery Time: 7 days
Packaging Details: carton box and wooden box
material: N-BK7, UVFS, H-K50, H-F4, H-BAK7, H-LAF10L, N-SK15, H-ZK21, H-F1, H-ZF4
Size: 0.5-5mm
Transmittance: 92%
Shape: Rod shape
HS Code: 9001909090
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Plano Rod Lenses Rod Lens/Cylindrical Lens/Optical Cylindrical Lens For Medical Endoscopes

Plano Rod Lenses Rod Lens/Cylindrical Lens/Optical Cylindrical Lens For Medical Endoscopes

Rod Lenses for Rigid Endoscopes
Rod lens systems use special glass rods with optically finished ends, providing images with higher brightness, contrast and colour
reproduction than conventional lenses.
Commonly, rigid endoscopes have a series of high-resolution optical glass rod lenses. The endoscopes can be forward viewing (0
degrees) or angled (10–120 degrees) to allow visualization out of the axis of the telescope and increase the FOV by rotating the
instrument. The optical quality of lens-generated images of rigid endoscopes still surpasses that of the fiber-optic or digital
images produced by flexible scopes.
Why choose the sapphire?
1-Thinner and Stronger than Standard Glass Windows
2-Transmits Wavelengths Ranging From UV to Mid-Infrared
3-Features Extreme Surface Hardness and Chemical Resistance
Sapphire Windows are manufactured from single crystal sapphire, making them ideal for demanding applications (such as laser systems) because of their extreme surface hardness, high thermal conductivity, high dielectric constant and resistance to common chemical acids and alkalis. Sapphire is the second hardest crystal next to diamonds and, because of their structural strength, sapphire windows can be made much thinner than other common dielectric windows with improved transmittance. Chemically, sapphire is single crystal aluminum oxide (Al2O3), and is useful in a transmission range from 0.2 - 5.5µm.
Applications
Sapphire Washers, Sapphire Windows, Sapphire Bearings, Sapphire Rods, Sapphire Tubes, Ruby
sapphire wafer, dome sapphire, Sapphire insulation Film, Sapphire ball lens, Sapphire/ruby ball
Diameter Tolerance
Ø0.6mm or customization
Type
Flat/FlatPlano-Convex
Plano-Concave
Cemented
Flatness
N λ/4~λ/8 for flat surface
N<3, ΔN<0.5 for spherical surface
Surface Quality
20/10~60/40
Material
N-BK7, UVFS, H-K50,
H-F4, H-BAK7, H-LAF10L,
N-SK15, H-ZK21, H-F1, H-ZF4
Clear Aperture
>90%
Centering
<5’
Coating
Uncoated, or customized
Bevel
Protective bevel as needed
Material
Length
Dia 1
Dia 2
Dia 3
Dia 4
Dia 5
Dia 6
Dia 7
Dia 8
N-BK7,
UVFS,
H-K50,
H-F4,
H-BAK7,
H-LAF10L,
N-SK15,
H-ZK21,
H-F1,
H-ZF4
11.4
2.1
2
1.9
1.8
1.7
14.7
2.1
2
1.9
1.8
1.7
15
2.1
2
1.9
1.8
1.7
17.6
2.2
2.1
2
1.9
1.8
19.4
2.2
2.1
2
1.9
1.8
20.2
2.2
2.1
2
1.9
1.8
22.9
2.8
2.7
2.77
2.2
2.1
2
1.9
1.8
23
2.8
2.7
2.77
2.2
2.1
2
1.9
1.8
24
2.8
2.7
2.77
2.2
2.1
2
1.9
1.8
29
3.5
3.2
2.77
3
2.8
2.7
29.5
3.5
3.2
3
2.8
2.7
29.8
3.5
3.2
3
2.8
2.7
46
6.6
6.5
6
5.5

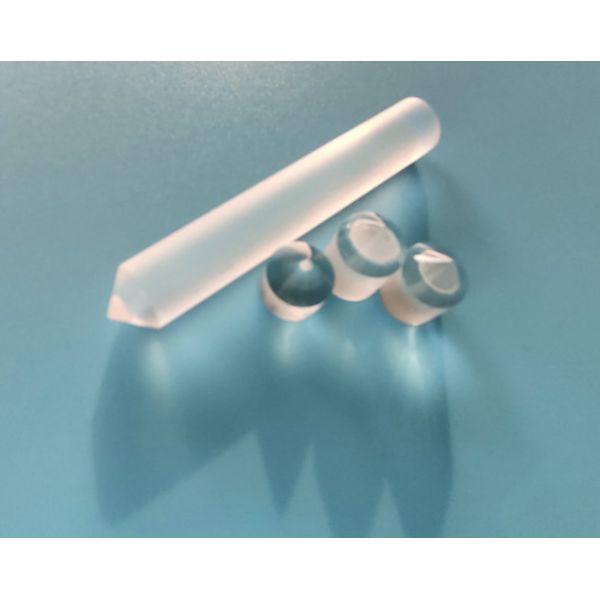

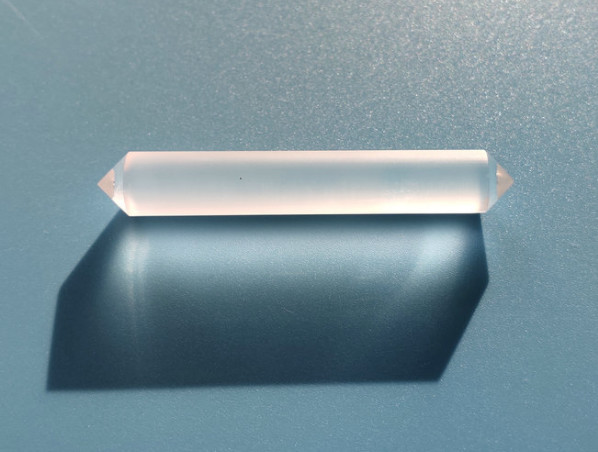

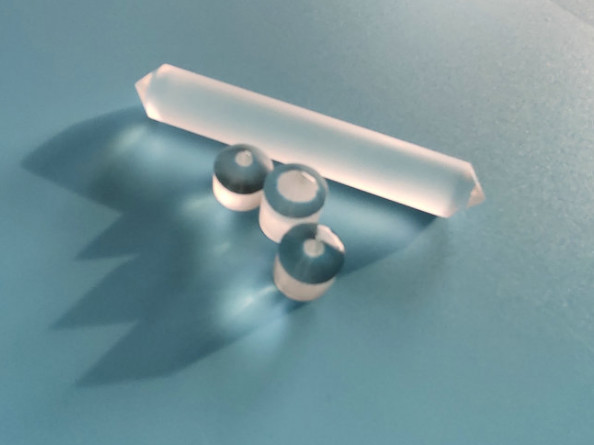

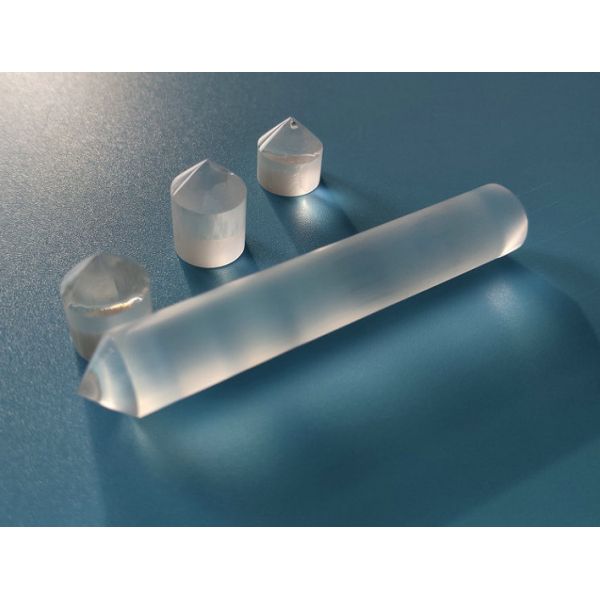

Micro Rod Lenses are available with flat, plano-convex, plano-concave, cemented etc which applied in medical endoscopes






FAQ:
1. . Could you send free samples?
Your samples fee will be returned when you plack bulk order.
2.What's the delivery time?
7 days, it is up to your quantity and soecification and our stock. If in stocks, once you make the payment, your products will be sent within 2 days.
5. Can you OEM or ODM?
Yes, we accept all OEM and ODM.
