SA18T / K Rod End Spherical Sliding Bearing - Forged Rod End Bearing Coated With White Zinc

Categories Rod Ends Bearing
Brand Name: SFT
Model Number: SA 5-30 T / K
Place of Origin: China
MOQ: negotiable
Price: negotiable
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000PCS/MONTH
Delivery Time: 20-45DAYS
Packaging Details: carton,pallet
Material: Steel, stainless steel, copper
Feature: loaded slot,heavy duty
Weight: 0.03KG
Cage: Steel Cage.copper Cage.nylon Cage
Operating Temperature Range(℃): -20~80
Surface Hardness: HRC60-62
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

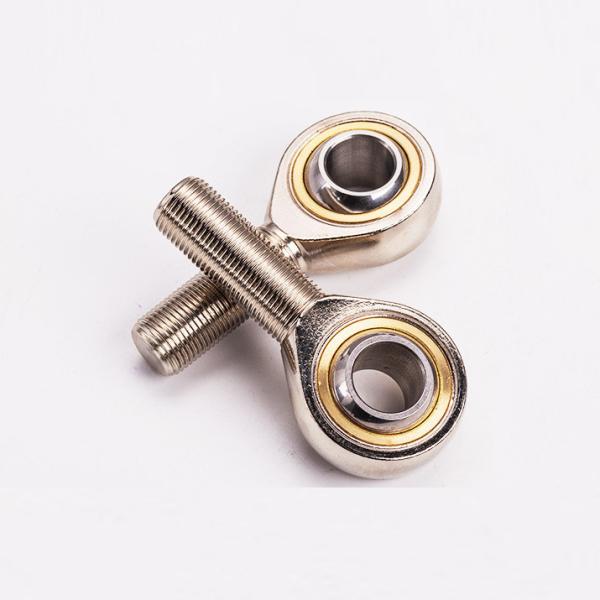

SA18T / K Rod End Spherical Sliding Bearing - Forged Rod End Bearing Coated With White Zinc

rod end spherical sliding bearing and forged rod end bearing

Product Introduction:

Joint bearing is a kind of spherical sliding bearing. Its sliding contact surface is an inner sphere and an outer sphere. When moving, it can rotate and swing at any angle. It uses a variety of special processes such as surface phosphating, fried mouth, pad, and spray. Made of. Joint bearings have the characteristics of large load capacity, impact resistance, corrosion resistance, wear resistance, self-adjusting heart, and good lubrication.

Feature:

1. Design – Elimination of the guide ring allowed for a design change that improves cage balance and strength.
2. Material Technology – HPS series is made from high-cleanliness Z steel. Special surface treatment of spherical roller bearing increases resistance to wear.
3. Offer advanced material options: Super TF and TL steel, depending on application requirements.
4. Advanced Technology - patented Molded Oil lubrication system is also available.
5. Bearings are also available with an oil groove and holes in the outer ring for re-lubrication purposes. Optional inner ring oil groove and holes available.


Application:

Joint bearings are widely used in engineering hydraulic cylinders, forging machine tools, engineering machinery, automation equipment, automobile shock absorbers, water Conservancy machinery and other industries.

supply all kinds of rod end bearings with all dimensions as customers require, such as: SI...E, SI...ES, SA...E, SA...ES, SI...T/K, SA...T/K, SI...B/K, SA...B/K. GIR...UK, GAR...UK, PHS...., POS...., SIZP...S, SAZP...S, SIZJ...., SAZJ...., GIHR...DO, GIHR...K...DO, SIQG...ES, GK...DO, GF...DO, ect. The material of the bearings can be steel/steel, steel/PTFE bronze composite, steel/bronze


StyleInner DiameterOutside DiameterThicknessWeight
SA5T5mm18mm8mm0.013kg
SA6T6mm20mm9mm0.02kg
SA8T8mm24mm12mm0.038kg
SA10T10mm28mm14mm0.055kg
SA12T12mm32mm16mm0.085kg
SA14T14mm36mm19mm0.14kg
SA16T16mm42mm21mm0.21kg
SA18T18mm44mm23mm0.29kg
SA20T20mm50mm25mm0.38kg
SA22T22mm54mm28mm0.48kg
SA25T25mm60mm31mm0.64kg
SA28T28mm66mm35mm0.8kg
SA30T30mm70mm37mm1.1kg
SA35T35mm81mm43mm1.64kg
