| Categories | Brushed DC Motor |
|---|---|
| Brand Name: | TYHE |
| Model Number: | TJP37RG |
| Certification: | CE/ROHS/ISO9001 |
| Place of Origin: | China |
| MOQ: | 500pcs |
| Price: | Negotiation |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000pcs per month |
| Delivery Time: | 15 working days after payment |
| Packaging Details: | Foam wrapped, carton packed |
| Size: | D37mm |
| Voltage: | 6v 24v or customize |
| Speed: | Customized |
| Torque: | 1.5N.m |
| Commutation: | Brush /brushes /brushed |
| Type: | Brushed dc motor, dc mini motor |
| Keywords: | Factory goods 37mm 12 volt 30v 12v 24v 16 volt 2nm torque high rpm 9000rpm 555 550 37gb 20 watt small dc gear reduction motor |
| Company Info. |
| Wenzhou Tyhe Motor Co., Ltd. |
| View Contact Details |
| Product List |
Products Description
rs545 low speed 1 rpm 3rpm high toruqe 8w 10w 15 watt 15kgcm dc gear motor for Smart mop
Specifications
| Model | Rated Voltage(V) | No-Load Parameters | Rated Parameters | Startup Parameters | |||||||||||||||
| Speed | Current | Speed | Current | Torque | Output | eff | Torque | Current | |||||||||||
| rpm | mA | rpm | A | mN.m | W | % | mN.m | A | |||||||||||
| RS545 | 6 | 3200 | 280 | 2560 | 0.81 | 11.20 | 3.00 | 61.65 | 33.60 | 4.70 | |||||||||
| RS545 | 12 | 2000 | 70 | 1600 | 0.20 | 8.95 | 1.50 | 63.54 | 26.85 | 1.10 | |||||||||
| RS545 | 24 | 6000 | 160 | 4800 | 0.60 | 17.50 | 8.80 | 61.25 | 52.50 | 4.30 | |||||||||
| RS545 | 24 | 8300 | 200 | 6640 | 0.88 | 19.30 | 13.42 | 63.90 | 57.90 | 6.90 | |||||||||

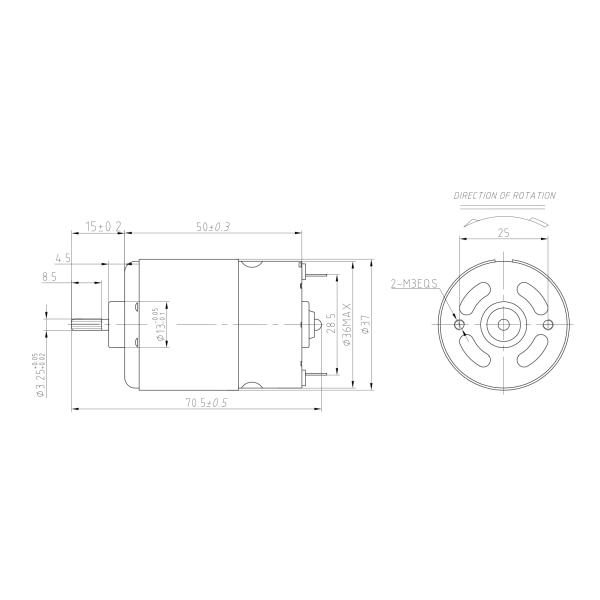

2D drawing
Please let us know your requirements and we will provide you with transmission solutions.
|
