| Categories | 24V DC Gear Motor |
|---|---|
| Brand Name: | TYHE |
| Model Number: | TJP37R3650BL |
| Certification: | CE/ROHS/ISO9001 |
| Place of Origin: | China |
| MOQ: | 500pcs |
| Price: | Negotiation |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000pcs per month |
| Delivery Time: | 15 working days after payment |
| Packaging Details: | Foam wrapped, carton packed |
| Size: | φ37mm size |
| Voltage: | 3V 12v 24v or customize |
| Speed: | 5000rpm or Customized |
| Torque: | 1.5N.m |
| Commutation: | Brushes brush |
| Type: | Brushed dc motor, micro motor |
| Keywords: | China Factory 37mm micro gearbox 40 50rpm 100 rpm 15w 10 watt 12v 12 volt 24 v high torque 2nm brushless dc gear motor |
| Company Info. |
| Wenzhou Tyhe Motor Co., Ltd. |
| View Contact Details |
| Product List |
Products Description

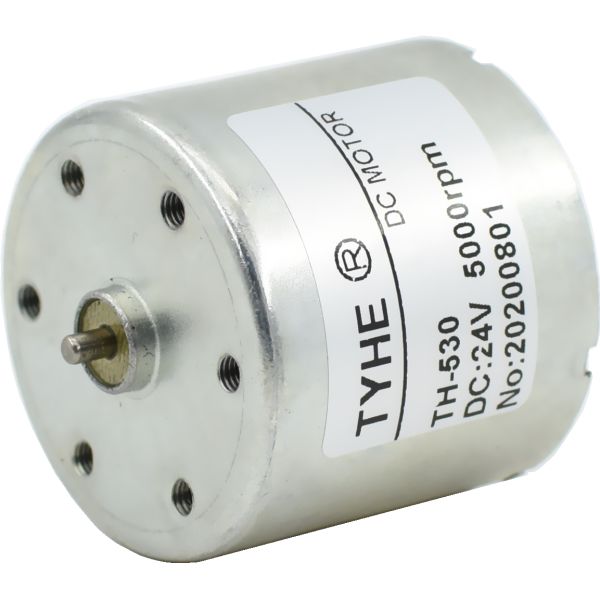

12v 24v 37v 50rpm 60 rpm 30kgfcm rs530 brushes dc planetary gear motor for led light with ce rohs
Specifications
| Model | Rated Voltage(V) | No-Load Parameters | Rated Parameters | Startup Parameters | |||||||||||||||
| Speed | Current | Speed | Current | Torque | Output | eff | Torque | Current | |||||||||||
| rpm | mA | rpm | A | mN.m | W | % | mN.m | A | |||||||||||
| RS530 | 12 | 3500 | 60 | 2800 | 0.21 | 5.30 | 1.55 | 61.91 | 15.90 | 1.43 | |||||||||
| RS530 | 12 | 5000 | 160 | 4000 | 0.49 | 8.90 | 3.73 | 62.86 | 26.70 | 3.05 | |||||||||
| RS530 | 12 | 6000 | 135 | 4800 | 0.68 | 9.90 | 4.98 | 61.20 | 29.70 | 5.7 | |||||||||
| RS530 | 12 | 6500 | 120 | 5200 | 0.70 | 9.80 | 5.34 | 63.83 | 29.40 | 6.2 | |||||||||
| RS530 | 12 | 7500 | 160 | 6000 | 0.80 | 9.50 | 5.97 | 62.30 | 28.50 | 6.7 | |||||||||
| RS530 | 24 | 3500 | 35 | 2800 | 0.12 | 5.90 | 1.73 | 62.68 | 17.70 | 0.75 | |||||||||
| RS530 | 24 | 5000 | 80 | 4000 | 0.25 | 9.12 | 3.82 | 62.83 | 27.36 | 1.6 | |||||||||
| RS530 | 24 | 7500 | 72 | 6000 | 0.37 | 9.25 | 5.81 | 64.63 | 27.75 | 3.2 | |||||||||

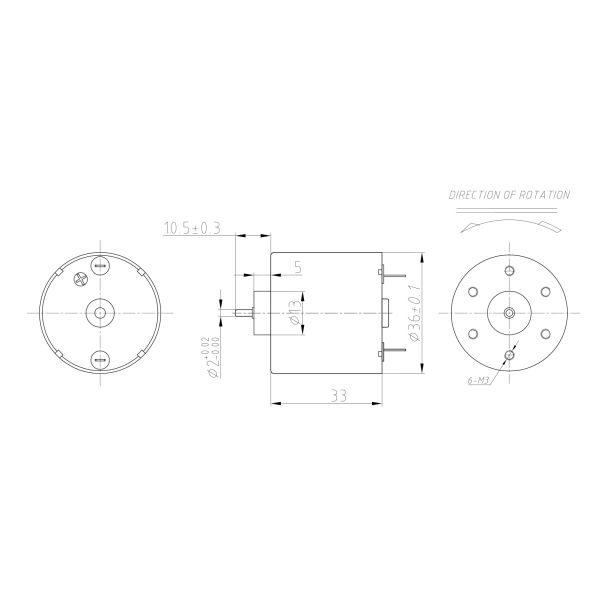

2D drawing
Please let us know your requirements and we will provide you with transmission solutions.
|
