Full Gigabit POE SFP Fiber Switch With 24 POE Ports 1 SFP Port 1 Uplink Port

Full Gigabit POE SFP Fiber Switch 24 POE Ports + 1 SFP Port + 1 Uplink Port

Technical Parameters

Product Overview
The AEO-824GP-1G1SFP is equipped with 24 10/100/1000BASE-T ports featuring 30-watt 802.3at Power over Ethernet Plus (PoE+) copper interfaces, 1 10/100/1000BASE-T ports RJ45 and 1 extra 1000BASE-X SFP slots with inner power system. With a total PoE power budget of up to 320 watts and non-blocking data switching performance, the AEO-824GP-1G1SFP fulfills the demand of sufficient PoE power for HD IP surveillance. It offers a rack-mountable, safe and reliable power solution for SMBs deploying Power over Ethernet networks.
The PoE in-line power following the IEEE 802.3at/af standard makes the AEO-824GP-1G1SFP able to deliver Gigabit speed data and up to 30 watts of power per port to 24 PoE compliant powered devices (PDs) with a combined power output budget of up to 320 watts. The AEO-824GP-1G1SFP provides more flexibility in power requirement for all kinds of PDs with affordable installation costs.

Product features

• 24-port 10/100/1000BASE-T Gigabit Ethernet RJ45 copper with POE function
• 1 1.25Gbps SFP interfaces
• 1-port 10/100/1000BASE-T Gigabit Ethernet RJ45 copper
• Complies with IEEE 802.3af/at Power over Ethernet end-span AEO
• Up to 24 ports of IEEE 802.3af/802.3at devices powered
• Supports PoE power up to 30.8 watts for each PoE port
• Each port supports 52V DC power to PoE powered device
• 320-watt PoE budget
• Auto detects powered device
• Circuit protection prevents power interference between ports
• Remote power feeding up to 100m in standard mode
• Hardware based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
• Flow control for full duplex operation and back pressure for half duplex operation
•  10 KB Jumbo frames support

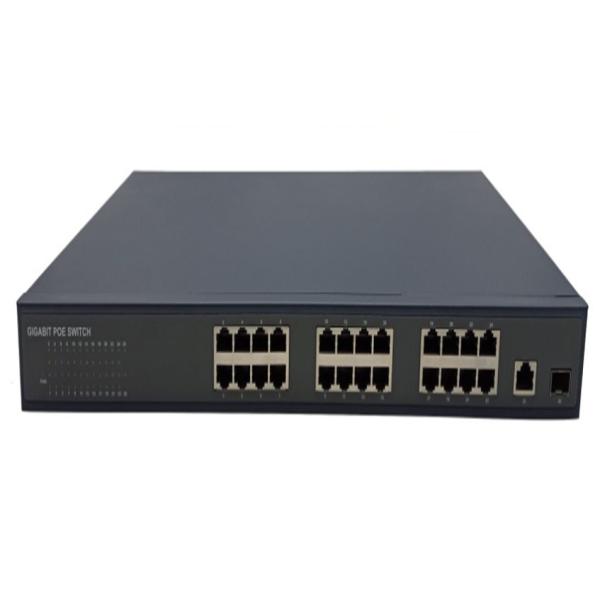

Product Picture

Packaging & Shipping

Shenzhen Qiutian Technology Co., Ltd is now one of the leading manufacturers of security transmission equipment in China with its own brand AEO. With network and high definition used more and more widely in security monitoring, AEO company gradually developed PoE switch, industrial PoE switch, Ethernet switch, industrial Din Rail supply, PoE injector, PoE extender, PoE splitter, media fiber converter, wireless bridge, and IoT intelligent box products. In a word, AEO company has worked out a very good high definition transmission solution for the security industry. As a member of the Shenzhen Security Association, AEO company owns many patented technology for video communication and has always taken technical research and independent innovation as the motive power of development. We are one of the leaders in technology industries like POE technology, fiber telecommunication systems, looped network technology, high definition video transmission systems. What is more, we pay high attention to quality and integrity as well as details and actual effect. Our products are of very high quality and have passed authentications like ISO9001, CE, FCC, RoHS, and so on. Besides, We have our own standard industrial factory of more than 1000 square meters, the whole sets of aging test equipment, complete producing crafts, strict quality control system, and enough stock, which ensures high stability for products and quick response to the market. Until now AEO POE products and optical transmission products have been widely used in systems like emergency command system, production safety management system, digital city system, emergency system against terrorism, special occasions integrated monitoring system, public traffic safety system, city integrated monitoring system, environmental and meteorological monitoring system, fire linkage system and so on, as well as fields like the highway, city security, railway, petroleum and petrochemical, army, electrical power, financial industry and so on. We always offer advanced transmission solutions, high-quality products, and the best aftersales service for our customers, and has won their high appreciation.
