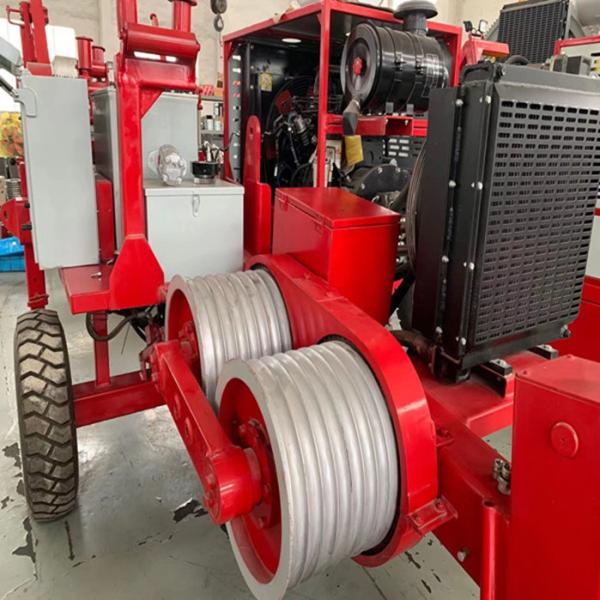

6Ton Hydraulic Puller Winch Transmission Overhead Line Pulling Equipment

6Ton Hydraulic Puller Winch Transmission Overhead Line Equipment

6Ton Transmission Overhead Line Equipment Description:

This 60KN 6Ton Hydraulic Puller Winch Transmission Overhead Line Equipment makes use of the spring applied hydraulically released brake which can act automatically.

If the motor suddenly turns off or other reasons lead to the hydraulic failure, our product can still ensure its safe operation.

Our 60KN hydraulic puller will show its overload automatic protection function. Both pulling speed and traction force can be

adjusted steplessly. Users can read the pull in the rope from the line pull gauge. They can also preset the maximum traction force for conductor stringing operation.

Finally, this puller contains the steel wire rope automatically winding device, which can arrange the rope by itself and also load and unload conveniently.

6Ton Transmission Overhead Line Equipment Performance:

6Ton Transmission Overhead Line Equipment Characteristics:

6Ton Transmission Overhead Line Equipment Engine:

6Ton Overhead Line Stringing Equipment Main configuration:

6Ton Overhead Line Stringing Equipment Configuration:

Hydraulic dynamometer with set-point and automatic control of maximum pull
Hydraulic oil cooling system
Control instruments for hydraulic system and diesel engine
On board reel winder with automatic level wind, suitable for standard reel mod. 1100 and 1200
Hydraulic front stabilizer
Grounding connection point

6Ton Overhead Line Stringing Equipment Hydraulic Transmission:

Closed hydraulic circuit for step less speed variation in both rotating directions. This machine is provided with

a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by

automatically adjusting the operation speed according to the friction and unexpected loads which may occur.

6Ton Overhead Line Stringing Equipment Application:

The hydraulic puller is used to pull pilot wire rope for overhead transmission line Stringing.

It is equipped with diesel engine and closed hydraulic system, it can be easily used and maintained
