| Categories | Hastelloy Plate |
|---|---|
| Brand Name: | Mittel |
| Model Number: | HASTELLOY C4 |
| Certification: | SGS ISO MTC |
| Place of Origin: | China |
| MOQ: | 100KGS |
| Price: | 35 USD/KG |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 80000KGS |
| Delivery Time: | 7 Working Days |
| Packaging Details: | Wooden Pallet BOX |
| Grade: | Nickel Base Alloy |
| Application: | Industry,construction,deep-drawn,used in chemical |
| Type: | Nickel Plate |
| Elongation (≥ %): | 40% |
| Resistance (μω.m): | 1.5,Stable,DIN,UNS |
| Ni (min): | 99.5%,Balance,Standard |
| Powder or not: | Not Powder |
| Ultimate strength (≥ mpa): | DIN,Standard |
| Standard: | ASTM,DIN |
| Material: | Hastelloy C22 C4 C276 |
| Thickness: | 1mm~30mm |
| Company Info. |
| JIANGSU MITTEL STEEL INDUSTRIAL LIMITED |
| Verified Supplier |
| View Contact Details |
| Product List |
HASTELLOY C4 DIN 2.4610 HASTELLOY ALLOY STRUCTURAL STEEL PLATE
Hastelloy C4 Coils is a nickel-chromium-molybdenum alloy with outstanding high-temperature stability as evidenced by high ductility and corrosion resistance even after aging in the 1200 to 1900 Degree F (649 to 1038 Degree C) range. In Inconel C4 Plates, the tungsten was totally omitted and the iron content was reduced to approximately 1%. The alloy also contains approximately 0.3% Ti. Haynes C4 Plates is used to manufacture chemical process equipment, especially for process use at high temperatures where stainless steels do not have adequate strength and/or corrosion resistance. Nickel C4 Plates resists the formation of grain-boundary precipitates in the weld heat-affected zone, thus making it suitable for most chemical process applications in the as-welded condition. Buy Alloy C4 Plates at reasonable price from us.
| Specifications | ASTM B575 / ASME SB575 |
| Standard | ASTM, ASME and API |
| Specialize | Shim Sheet, Perforated Sheet, B. Q. Profile. |
| Size | 0.5 MM TO 200 MM THICK IN 1000 MM TO 2500 MM WIDTH & 2500 MM TO 12500 MM LENGTH |
| Form | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) |
| Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Grade | Hastelloy C4 (UNS N06455) |
| STANDARD | WERKSTOFF NR. | UNS |
| Hastelloy C4 | 2.4610 | N06455 |
| Grade | Ni | Cr | Mo | Fe | C | Mn | Si | Co | Ti | S | P |
| Hastelloy C4 | Bal | 14.5-17.5 | 14.0-17.0 | Max 3.0 | Max 0.009 | Max 1.0 | Max 0.05 | Max 2.0 | Max 0.7 | Max 0.010 | Max 0.025 |
| Grade | Tensile Strength | Yield Strength RP0.2% | Elongation A5% | Mean Coefficient of Thermal Expansion |
| Hastelloy C4 | 690 N/mm² | 1335°C-1380°C | 275 N/mm² | 40% |
| Grade | Density | Melting Point | Electrical Resistivity | Mean Coefficient of Thermal Expansion | Thermal Conductivity | Specific Heat |
| Hastelloy C4 | 8.6g/cm3 | 1335°C-1380°C | 1.24 μΩ•m | 10.9(100°C) a/10-6°C-1 | 10.1(100°C) λ/(W/m•°C) | 408 J/kg•°C |
| Hastelloy C4 Plates | Hastelloy C4 Plates |
| C4 Alloy Plates | Hastelloy C4 Plate |
| Super Nickel alloy Hastelloy C4 Plate | Hastelloy UNS N06455 Bright plate |
| DIN 2.4610 Hastelloy Structural Steel Plates | Prime Hastelloy C4 Alloy Steel Plate manufacturer |
| Hastelloy Alloy C4 Cold Rolled Sheet | Corrosion Resistance Super Alloy Hastelloy C4 Plate |
| UNS N06455 Hastelloy Alloy Sheets | ASME SB 575 Hastelloy C4 Sheets |
| ASTM B575 Hastelloy C4 Sheet | Alloy C4 Sheets Stockiest |
| High quality C4 Hastelloy Alloy Plate | Hastelloy C4 Plates Suppliers |
| Hastelloy Alloy C4 Plates Dealer | C4 Hastelloy B575 Plates Exporter |
| Alloy C4 Plates Stockholder | Hastelloy Alloy SB 575 Plates Distributor |
Petrochemical Industries

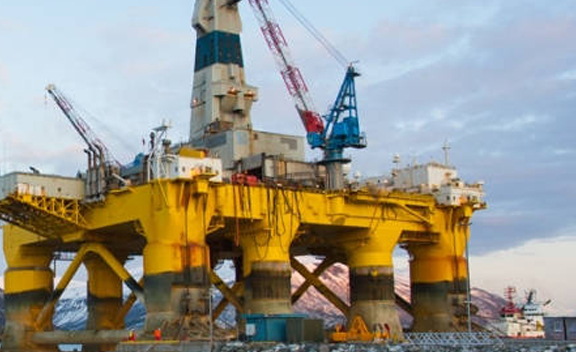

Marine Industries

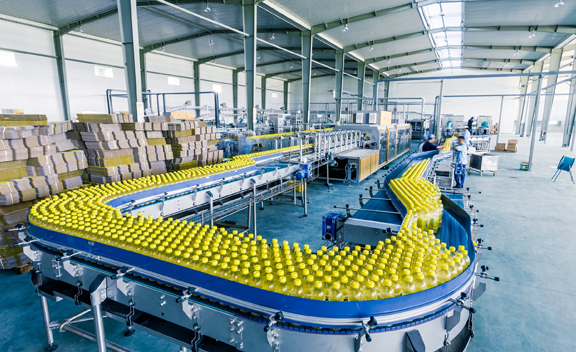

Food Processing Industries

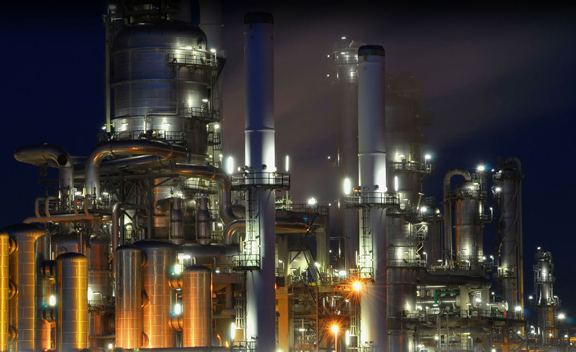

Oil & Gas Industries
|
