| Categories | Steel Flange |
|---|---|
| Brand Name: | YUHONG |
| Model Number: | ASTM B564 Monel400, UNS N04400 |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Place of Origin: | China |
| MOQ: | 1 Piece |
| Price: | Negotiable |
| Payment Terms: | T/T, L/C |
| Supply Ability: | According to Clients' Requirement |
| Delivery Time: | 5 - 90 Work Days |
| Packaging Details: | Ply-wooden Case / Pallet |
| Standard: | ASTM B564, ASME SB564 |
| Material Grade: | Monel400, UNS N04400 |
| Size: | 1/2" - 48" |
| Pressure: | Class150/300/600/9001500/2500 |
| Technics: | Froged |
| Surface treatment: | Heat treatment,Galvanized |
| Type: | Threaded Flange,Slip on Flange,Socket Weld Flange,Weld Neck Flange,LAP Joint Flange |
| Application: | Petroleum,Chemical,Fittings and Connection,Beer,Etc. |
| Company Info. |
| Yuhong Group Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

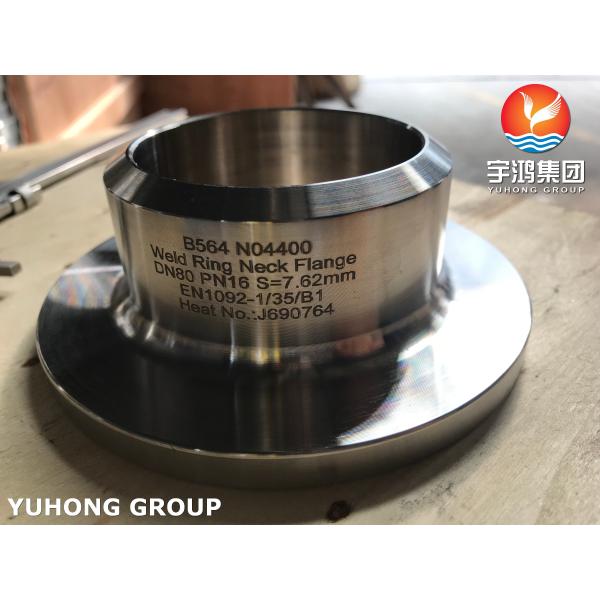

ASTM B564 Monel400, UNS N04400 Nickel Alloy Weld Ring Neck Flange,
Blind Flange
Monel400 Nickel Alloy Weld Ring Neck Flange is a type of flange which is an excellent high performance alloy
used in high pressure applications. It has high thermal
conductivity and good ductility. ASTM B564 UNS N04400 Nickel Alloy Flange is a steel flange that is made from Monel 400, a highly
corrosion-resistant alloy. It can withstand extreme temperatures
and corrosive environments. The UNS N04400 steel flanges are widely
used in various applications like sea water system, marine
equipment, chemical industry, and so on.
Specifications:
| Specifications | ASTM B564 / ASME SB564 |
| Size Range | 1/2″ (15 NB) to 48″ (1200NB) |
| Dimensions | ANSI/ ASME B16.5, B16.47 Series A&B, B16.48, BS4504, BS 10, EN1092, DIN |
| Standard | ANSI, AWWA, ASME, BS, DIN, EN, GOST |
| Pressure Class | 150#, 300#, 600#, 900#, 1500#, 2500# |
| Face Type | Raised Face (RF), Ring Type Joint (RTJ), Large Male-Female (LMF), Flat Face (FF), Small Male-Female (SMF), Lap-Joint Face (LJF), etc. |
| Flange Type | Weld Neck Ring Flanges (WNRF), Slip-On Ring Flanges (SORF), Blind Ring Flanges (BLRF), Socket Weld Ring Flanges (SWRF), Lap Joint Ring Flanges (LJRF), Ring Type Joint Flanges (RTJF), Large Diameter Flanges, Orifice Flanges |
Chemical Composition:
| Iron | ≤2.5 |
| Sulfur | ≤0.024 |
| Nickel | ≥63 |
| Carbon | ≤0.3 |
| Copper | 28-34 |
| Manganese | ≤2 |
| Silicon | ≤0.5 |
Mechanical Properties:
| Density | 8.8 g/cm3 |
| Melting Point | 1350 °C - 2460 °F |
| Tensile Strength | 80000Psi - 550MPa |
| Yield Strength (0.2%Offset) | 35000Psi - 240MPa |
| Elongation | 40 % |
Applications:
Marine Equipments
Sea Water Systems
Chemical Equipments
Aerospace Industries
Musical Instruments
Heat Exchangers
High Pressure Applications
Offshore Industries
Pressure Vessels
|
