| Categories | Heavy Duty Dump Truck |
|---|---|
| Brand Name: | CIVL |
| Model Number: | CIVL |
| Certification: | ISO,CCC |
| Place of Origin: | China |
| MOQ: | 1 |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000sets/ per year |
| Delivery Time: | Within 35 days |
| Packaging Details: | In nude |
| Brand: | Sinotruck |
| Condition: | New |
| Wheelbase (mm): | 1800+4200+1350 |
| Max speed(km/h): | 75 |
| Vehicle Curb weight(kg): | 15480 |
| Gross mass (kg): | 31000 |
Our company belong to SINOTRUK sales department and we have specialized in sinotruk trucks and spare parts for many years.The famous brand of sinotruk are HOWO series,HOWO A7 series,HOHAN series.We can supply tractor truck,dump truck,cargo truck,concrete mixer truck,fire tanker truck,water truck,fuel tank truck,bulk cement truck,sewage suction truck and also different types of semi trailers.
SINOTRUK is located in Jinan city and was founed in 1956.It once manufactured china’s first heavy duty truck.In 1960,sinotruk introduced the technology using on engine and axle from Austria.Later,sinotruk established cooperation with German man group and wobaco company.Today,sinotruk has developed into china’s largest heavy duty truck manufacturing base and made significant contributions to the development of china’s heavy duty truck industry and national economic growth.
If any interest ,welcome to enquire.

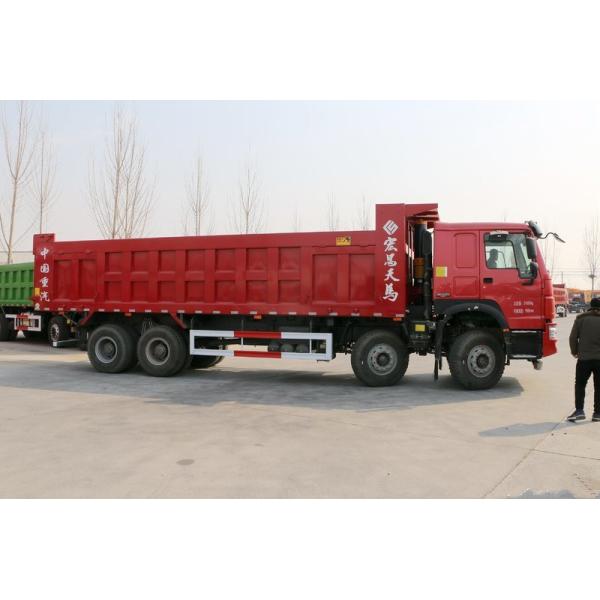

Sinotruck howo 8x4 12-wheel dump truck capacity 40ton
Product Description
| SINOTRUK HOWO 371HP 8x4 dump truck | ||||
| Truck Model | ZZ3317N4267A | |||
| Steering type | Left hand drive | |||
| Dimension of box (LxWxH) | 7800x2300x1500 mm | |||
| Thickness of box (mm) | Deck:8mm;side:6mm | |||
| Lifting Type of carriage | Front lifting,Chinese cylinder 180 | |||
| Overall dimensions (LxWxH) | 10820*2496*3450 mm | |||
| Approach angle/Departure angle(°) | 19/22 | |||
| front/rear suspension (mm) | 1500/1975 | |||
| Wheelbase (mm) | 1800+4200+1350 | |||
| Max speed(km/h) | 75 | |||
| Vehicle Curb weight(kg) | 15480 | |||
| Gross mass (kg) | 31000 | |||
Engine | Model | SINOTRUK WD615.47, 4-stroke direct injection diesel engine, 6-cylinder in-line with water cooling, turbo-charging and intercooling | ||
| Power, max(kw/rpm) | 371 HP | |||
| Emission | Euro2 | |||
| Transmission/Gear box | Model | HW19710, 10 speeds forward ,2 reverse | ||
Brake system | Service brake | Dual circuit compressed air brake | ||
| Parking brake | spring energy, compressed air operating on rear wheels | |||
| Auxiliary brake | Engine exhaust brake | |||
| Steering system | Model | 8118,hydraulic steering with power assistance | ||
| Front axle | HF 9,drum type | |||
| Driving axle | HC16,16ton double reduction | |||
| Tire | 12.00R20,radial tyres,13pcs (one spare) | |||
| Clutch | φ430 diaphragm spring clutch,hydraulic control air power assisted | |||
| Cab | HW76,one bed,with A/C. VOLVO technology ,comfortable cab. 4-point support floating suspension and shock absorbers, up/down and front/back adjustable steering wheel, VDO instrument and control module,safety belt , air horn,outer sun visor. | |||
Electric system | Battery | 2x12V/165Ah | ||
| Alternator | 28V-1500 KW | |||
| Starter | 7.5 Kw/24 V | |||
| Color | red,white,yellow. Optional as per customer’s requests. | |||
Packaging & Shipping
packaging for dump truck:nude.polish with wax before shipping
shipping for dump truck:bulk ship or RORO ship
|
