| Categories | Semi Trailer Trucks |
|---|---|
| Brand Name: | CIVL |
| Model Number: | CIVL |
| Certification: | ISO,CCC |
| Place of Origin: | China |
| MOQ: | 1 |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000units/month |
| Delivery Time: | Within 35 days |
| Packaging Details: | nude |
| COLOR: | RED ;WHITE ;BLUE |
| Material: | Q345 |
| warranty: | yes |
| logo: | option |

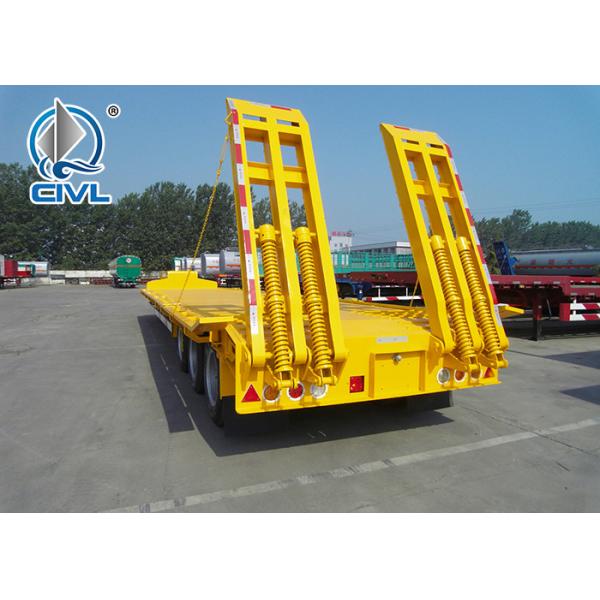

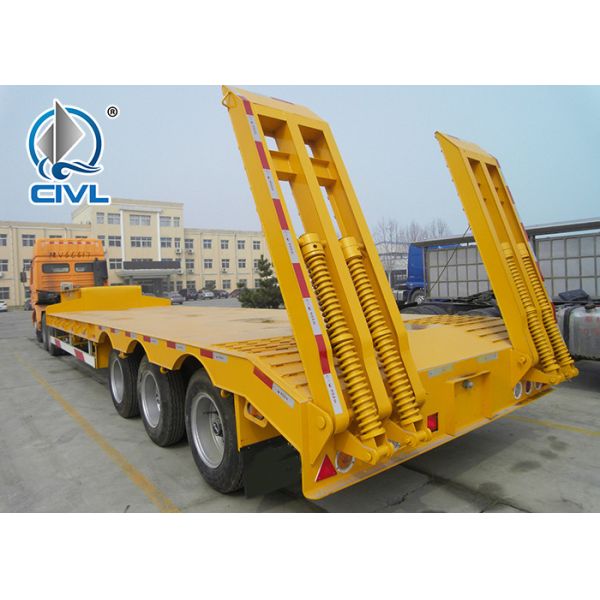

| Type: | Loebed Semi-Trailer |
| Max payload: | 70T |
| Function: | Transport Heavy Duty Machinery |
Specification:
| Length | 9m - 20m |
| Width | 2.5m - 3.6m |
| Height of platform | 600mm - 1300mm |
| Axle | 3 - 8 axles |
| Tire | 11.00R20, 12.00R20, 11R22.5, 12R22.5, 8.25R20 |
| Suspension | Mechanical suspension |
| Dimension | Total Length: 8,000 - 16,500 mm varies according to demand. Lowbed
can be extendable Total Width: 2,500 mm - 3,500 mm varies according to demand |
| Steel Structure | High strength steel, Q345, Q4600, Q550, S690 produced in welding construction with gas metal arc welding as “I” crossing from high resistant steel considering overloads proper to capacity and intended usage |
| Tare Weight | About 7 - 13 ton |
| Axle | 13 - 14 - 16 ton capacity axles, optional FUWA, BPW or other brand hub centric, with 10 wheel nuts, and automatic slack adjuster |
| Tire | 8.25R20 / 10.00R20 / 11.00R20 / 12.00R20 / 235/70 R17.5 / 315/80 R22.5 or etc |
| Rim | 6.5-20 / 7.5-20 / 8.00-20 / 8.5-20 or etc |
| Suspension | Mechanical leaf spring suspension or Pneumatic Air suspension It consists of automatic height adjustment system, Parabolic Z leaf springs Suspension bellows, shock absorbers restricting extensive shaft movements and vibrations |
| Spring Leaf | 90mm(Width)×13mm(Thickness)×10 layers or 100mm×12mm×12 layers |
| King Pin | JOST 2.0 or 3.5 inch (50", 90"), bolted or welded type |
| Landing Gear (support leg) | JOST 25 ton or Chinese brand 28 ton (Single action, Double speed) |
| Main Beam | Height: 450mm-520mm Upper plate: 14mm-25mm Middle plate: 8mm-12mm Lower plate: 16mm-25mm |
| Side Beam | 16mm - 30mm steel channel |
| Bottom Platform | 3 - 6mm thickness chequered plate |
| Loading Ramp (Ladder) | Mechanical manually operated or Hydraulic Ramp |
| Gooseneck | Optional different type as customized |
| Brake System and ABS | Optional WABCO RE 6 relay valve; T30/30+T30 spring brake chamber;
45L air tanks WABCO brand ABS or EBS brake system designed according to International Standards It consists of automatic brake ratchets, brake valves and brake bellows of 30 |
| Electric System | 24V illumination systems in conformity with the international
standards LED lamp with 7 functions, and 7 pins Sockets (7 wire harness) Traffic warning panels on the vehicles |
| Tools Box, Accessories | 1m × 0.5m × 0.5m tools box wrench, tire spanner, gudgeon sleeve, cranking bar tire and rim, air bag, hydraulic hose, steering valve, side lamp, tail lamp, washer, sealing parts |
| Painting | Vehicle frame is polished totally, anti-rust Zinc-rich primer and 2
layers top coats adopt Maritime painting for most stringent anti-corrosion RAL colours As desired |
| Twist Locks | Four ,Eight or Twelve pieces (lifting type or screw type) |
Applications:
Apply to transport longer larger parts, miscellaneous pieces of
cargo, large components and equipment.
Competitive Advantage:
1. All colors are available according to your choice.
2. Fast production period, and quick arrangement of delivery.
3. Professional team for spare parts and aftersales services.
4. Technique support and training.
5. Customization service, as per your request, we will customize
our production for you
|
