| Categories | Light Duty Commercial Trucks |
|---|---|
| Brand Name: | CIVL |
| Model Number: | CIVL |
| Certification: | ISO,CCC |
| Place of Origin: | China |
| MOQ: | 1 |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 sets / every month |
| Delivery Time: | Within 35 days |
| Packaging Details: | IN NUDE |
| Overall dimensions(L/W/H): | 5980*1950*2280 |
| Total weight(Kg): | 6495 |
| Approach/Departure angle: | 15/15 |
| Axle load: | 2625/3870 |
Oil Tanker Effective volume: 4.5 cubic meters, the size of the tank body4000 x 1500 x 1000
The tanker 's main parameters as the following

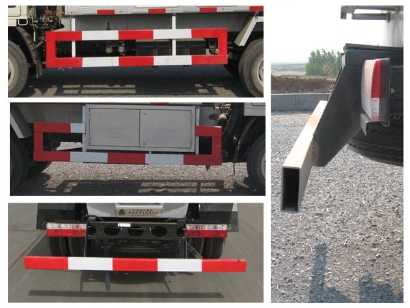

Effective volume: 4.5 cubic meters, the size of the tank body (long x axis X short axis) (mm): 4000 x 1500 x 1000, medium: gasoline, medium density: 700 kg / m3. Side and rear of the protective device for the lower part of the material for the Q235A, the connection is bolted connections, after the lower part of the protection device for the section size (width * height): 100mm x 50mm, from the ground height: 380mm. A traveling data recorder with a satellite positioning shall be installed with a front disc brake, a radial tire and a chassis fitted with a ABS.
| Vehicle name | Tanker | ||
| Vehicle type | Special vehicle | ||
| Vehicle model | SHMC5060GJY | ||
| Overall dimensions(L/W/H) | 5980*1950*2280 | Type of fuel | Diesel |
| Total weight(Kg) | 6495 | Payload capacity(kg) | 3 |
| Curb weight(kg) | 3265 | Permitted capacity(kg) | 3035 |
| Approach/Departure angle | 15/15 | Front passenger(person) | 3 |
| Wheelbase(mm) | 3300 | Front/Rear overhang | 1032/1648 |
| Axle nos | 2 | Axle load | 2625/3870 |
| Tyre nos | 6 | Max. drive speed (km/h) | 80 |
| Front wheel track | 1506 | Spring nos | 8/9+5,6/8+4 |
| Rear wheel track | 1466 | Tyre specification | 7.00-16,6.50-16,7.00R16,6.50R16 |
| Steering model | Steering wheel | ||
| Chassis standard | GB3847-2005,GB17691-2005EUROⅢ | ||
| Identification code | LGDCM81G****** | ||
