| Categories | Concrete Mixing Equipment |
|---|---|
| Brand Name: | CIVL |
| Model Number: | CIVL |
| Certification: | ISO,CCC |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | Negociable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 set / month |
| Delivery Time: | Within 35 days |
| Packaging Details: | nude |
| Condition: | New |
| Warranty: | 1 Year |
| Product type: | Mixer |

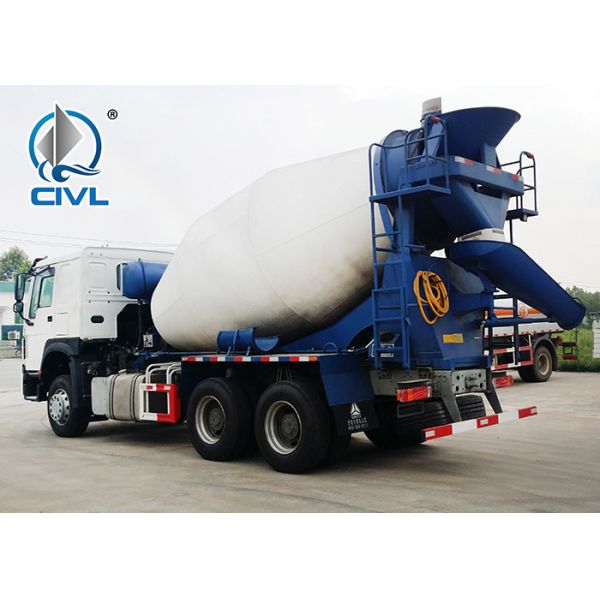

| name: | Concrete Mixer Truck |
| chassis: | 6x4 howo |
| tank capacity: | 8cbm |
| color: | option |
| size: | 9400x2500x3850mm |
Specifications:
| Overall parameter | |
| Overall dimension | 9400x2500x3850mm(for reference) |
| Mixing Drum parameter | |
| Mixing drum material | High quality wear-resistance steel |
| Model:Q345 | |
| Drum body Main parts thickness: 5mm, End cover thickness:6mm | |
| Agitating capacity | 8 M3 |
| Charging rate | ≥3 m3/min |
| Top feed hopper dimension | ≥650 mm |
| Discharging rate | ≥2 m3/min |
| Residual rate | ≤0.5% |
| Water supply | Baric water supply system |
| Water tank capacity | 450L |
| Radiator | 18L |
| Reduction gear | TOP T60 Reducer, Italy Brand |
| Hydraulic pump | ARK PV089,Italy Brand |
| Hydraulic motor | ARK MF089,Italy Brand |
| Accessory | Tool box |
| Chassis parameter | |
| Chassis Brand | SINO Truck |
| Chassis model | ZZ1257N3847D1 |
| Axle base | 3825+1350 |
| Driving type | Left hand drive(LHD) |
| Engine model | D10.38-40 |
| Rated power (HP) | 380HP |
| Emission standard | Euro IV |
| Fuel type | Diesel |
| Transmission(Gear box) | HW19710 |
| Front axle | HF9 Drum type |
| Rear axle | HC16 Driving axle |
| Tyre | 12.00R20(10+1) |
| Cab type | HW 76 (with air-conditioner) |
Photos:
