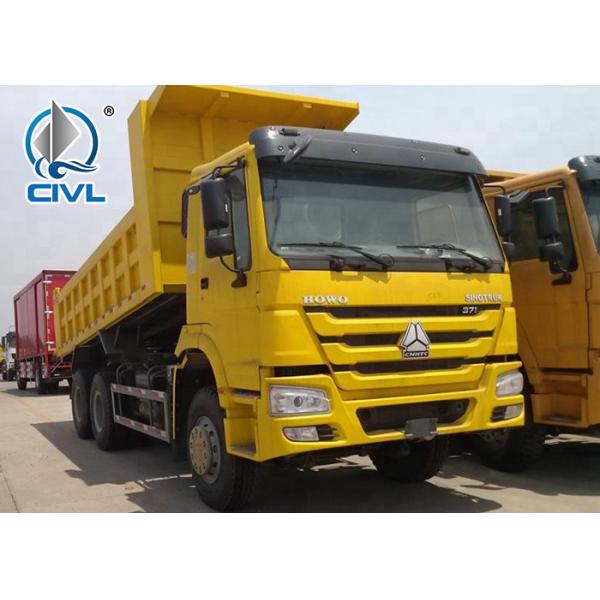

30t heavy Dump Truck 10 Wheel 336hp / 371hp tipper truck HOWO 6 x 4 Hyva Hydraulic Front lift yellow color

Specifications

Other Truck can be provide according to your request,

freely contact me for the informations and quotations.

Chassis Info:

Brand: Sinotruck HOWO.

Load capacity: 30T,35T,40T,45T,50T.

Diesel engine: 247kw / 336hp. HW,10-speed Manual Gearbox, Front / Rear axles HF 9T / HC 16T

Emission: EURO2,EURO3,EURO4 optional

Drive: left hand or right hand optional

Suspension Four horse bolts, Dual-circuit air brake, 24V.

Dump Cargo body:

Size: 5600/5800*2300*1500/1800mm ,18CBM Dump Truck,20CBM Dump Truck,23cbm Dump Truck/Tipper truck

Material: Carbon steel Q235,

Thickness: Side 6mm; bottom 8mm

Equipped with front hydraulic ram( HYVA optional) Single rear door.

Product Description

Products Technical Specification
Type	6*4 Dump truck
Brand	Sinotruk-HOWO
Cab	HW76, Half row,With A/C,sleeper
Vehicle Description
Overall dimensions(mm)	8580*2495*3400
G.V.W (kg)	25000
Curb weight(vehicle) (kg)	8060
Loading capacity (kg)	25000-50000
Max speed (Km/h)	85
Engine
Engine model	WD615.69
Maximum power	247kw / 336hp
Displacement (lit)	9.726
Engine Manufacturer	China Heavy Duty Truck Group Co., Ltd.
Chassis Description
Chassis Model	ZZ3257N3847A
Wheel base	3825+1350
F/R track base(mm)	2022/1830
F/R overhang(mm)	1500/900
Approach/Departure angle(°)	19/50
Spring plate	9/12
Front axle / rear axle	HF9/HC16
Type of fuel	Diesel
Transmission	HW15710,10-Speed
Brake System	Air braking
Operation control system	Power steering
Electric system	24V
Tire specification	12.00R 20
Up-parts Description
Van dimensions(mm)	5600/5800*2300*1500/1800
Van description	Equipped with material of carbon steel, side 6mm thickness;bottom 8mm thickness Equipped with middle hydraulic ram, single door.
Optional Configuration
Cargo body thickness,side door,and HYVA brands hydraulic cylinder,etc.
