| Categories | Heavy Duty Dump Truck |
|---|---|
| Brand Name: | CIVL |
| Model Number: | CIVL |
| Certification: | ISO,CCC |
| Place of Origin: | China |
| MOQ: | 1 |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 set / every month |
| Delivery Time: | Within 35 days |
| Packaging Details: | IN NUDE |
| Vehicle name: | van truck |
| engine Number of cylinder: | 6 |
| Displacement: | 9.726L |
| Engine oil filling quantiy: | 40L |

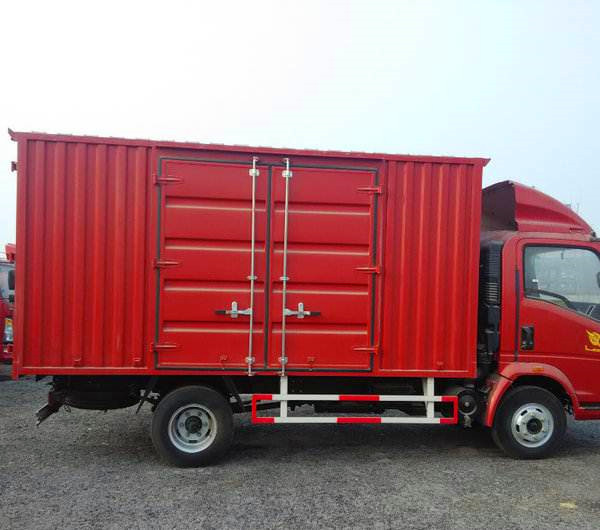

The van truck 's main feature as below
| Model | ZZ1167M4617 | ||
| Engine | Vehicle name | van truck | |
| Diesel | 4-stocks | ||
| Engine model | WD615.62, Euro II or Euro III (EGR); | ||
| WD615.92E, emission standard | |||
| 6-cylinder in-line with water cooling, turbo-charging and intercooling | |||
| Maximum output | 266hp (196KW) at 2200 rpm | ||
| Maximum torque | 1100Nm at 1100-1600 rpm | ||
| Number of cylinder | 6 | ||
| Displacement | 9.726L | ||
| Bore | 126mm | ||
| Stroke | 130mm | ||
| Compression ratio | 17.5:1 | ||
| Specific fuel consumption | 198g/KWh | ||
| Engine oil filling quantiy | 40L | ||
| Clutch | Single-plate dry coll-spring clutch, diameter 420mm, hydraulically operating | ||
| with air assistance | |||
| Transmission | 8JS100B, synchromesh, 6 forward & 1 reverse | ||
| Front Axle | Steering with double T-cross section beam | ||
| Rear Axles | Pressed axle housing, single reduction with hub reduction and differential lock | ||
| Chassis | Frame | U-profile parallel ladder frame with section | |
| of 300x80x8 mm, all cold riveted cross | |||
| members | |||
| Front Suspension | 9 semi-elliptic leaf springs with hydraulic | ||
| telescopic double-action shock absorbers | |||
| and stabilizer | |||
| Rear suspension | 15 leaf semi-elliptic leaf springs with hydraulic | ||
| telescopic double-action shock absorbers | |||
| Steering | ZF8089, hydraulic steering with power asssistance | ||
| Ratio: 22.2-26.2 | |||
| Braking System | Service brake | Dual circuit compressed air brake | |
| Parking brake | Spring energy, compressed air operation | ||
| (emergency brake) | on rear wheels | ||
| Auxiliary brake | Engine exhaust brake | ||
| Option | ABS | ||
| Wheel & Types | Rims | 8.5-20, 10 hole-steel | |
| Tyres | 12.00-20 tube | ||
| Option | 12R20 tube, 12.00-24 tube, | ||
| 12R22.5 tubeless | |||
| Cab | Standard cab | ||
| Electrical Syetem | Operating voltage | 24 V, negative grounded | |
| Starter | 24 V, 7.5 Kw | ||
| Alternator | 28 V, 1500W | ||
| Batteries | 2 X 12 V, 165Ah | ||
| Dimensions | Wheel base | 4600 | |
| Front wheel track | 2022/2041 | ||
| Rear wheel track | 1850 | ||
| Front overhang | 1500 | ||
| Rear overhang | 2277 | ||
| Approach angle (°) | 23 | ||
| Departure angle (°) | 15 | ||
| Overall length | 8377 | ||
| Overal width | 2496 | ||
| Overall heigth | 3048 | ||
| Cargo body size | 6066x2300x600 | ||
| Weight | Loading capacity | 8010 | |
| Chassis dead weight | 7860 | ||
| Gross vehicle weight | 16000 | ||
| Front axle loading capacity | 7000 | ||
| Rear axle loading capacity | 13000 | ||
| Performance | Maximum driving speed | 102 | |
| Maximum gradeability | 39 | ||
| Minimum ground clearance | 298 | ||
| Minimum turning circle | 18.6 | ||
| Fuel consumption | 26 | ||
