HOWO 6 X 4 Heavy Duty Dump Truck , Single Row Cab LHD Tipper Truck

Categories Heavy Duty Dump Truck
Brand Name: CIVL
Model Number: CIVL
Certification: ISO,CCC
Place of Origin: China
MOQ: 1
Price: Negotiable
Payment Terms: LC/TT
Supply Ability: 300 units per week
Delivery Time: Within 35 days
Packaging Details: Nude
color: all
Email: helen@road-machine.com
Steering: LHD,RHD
Cab: HW76 NEW STYLE
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

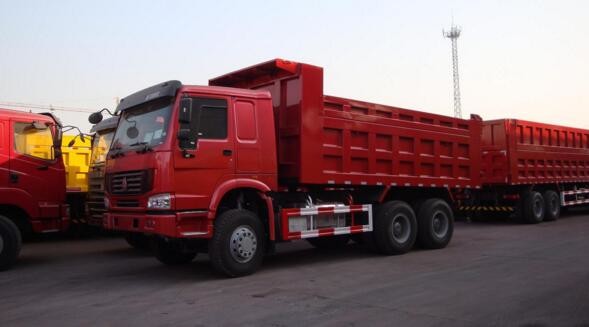

HOWO 6 X 4 Heavy Duty Dump Truck , Single Row Cab LHD Tipper Truck

SINOTRUK TECHNOLOGY HOWO 6 X 4 HEAVY DUTY DUMP TRUCK SINGLE ROW CAB LHD TIPPER TRUCK


Description:

SINOTRUCK HOWO series trucks own the elegant appearance, strong operation system and excellent safety.


Sino Heavy Machinery Co,Ltd is the authorized company of SINOTRUK(CNHTC), and mainly deal with heavy duty trucks /all spare parts and service We supply HOWO, , KING, GOLDEN PRINCE, HOHAN series 4X2, 6X4, and 8X4 dump trucks, tractor trucks, cargo trucks, garbage trucks, oil tank trucks, water tank trucks, log trailers tractors, terminal tractors, etc. Our products arrange from 190 horse power to 410 horse power, and loading capacity cover from 5 tons to 50 tons.


Truck Model No:ZZ3257M3247N1
Gross weight kg25000
curb weight kg11950
Rated load quality kg12920
Max. Speed (Km/h)78
Cabwith one sleeper, with air conditioner

Engine

Make : SINOTRUK

Diesel: 4-stroke direct injection diesel engine

Engine model : WD615.87, EURII emission , new design on intake & exhaust system, power and fuel economy get improved

6-cylinder in-line with water cooling, turbo-charging and intercooling

Max. output : 336Hp (221 Kw ) at 2200 rpm

Displacement : 9.726L


Transmission

HW15710 ,10gear transmission SINOTRUK 10 forward & 2

Ratio:14.28

Torque: 1900Nm

clutchSINOTRUK Φ430 C size clutch

Driving Axle

AC16

Strengthen widen whole steel-cast 16T off road axle with double decelerator and double tires

Ratio:4.77

Front axle

HF9

steel-cast 9T font axle,stick brake


Braking system

Service brake: dual circuit compressed air brake

Parking brake: spring energy, compressed air operating on rear wheels

Auxiliary brake: engine exhaust brake

Option:ABS

Electrical SystemOperating voltage:24V, negative grounded
SteeringZF8098 German Hydraulic steering with powder assistance
Wheel & Tyres

12.00-20

No.of Tyres:10+1

No. of Spring10/12
Front/ Rear axles loading capacity (kg)7000 /18000
No. of axles3
Wheel base mm3225+1350
Front/ Rear wheel track mm2041/1830
Front/Rear hanging mm1540/1550
Approach/ Departure angle (°)20 /29
Dimensions(L×W×H) (mm)7665*2496*3490
Van dimension mm

4800*2300*1500 F style lifting cylinder

Thickness: floor 8mm side 6mm


Package&Shipping:



Company Introduction:
SINO HEAVY MACHINERY CO.,LTD. Is a professional supplier of various SINOTRUK brand trucks with more than 30 years manufacturing and exporting experience.
We mainly focus on various trucks' R&D,Producing and sales kinds of trucks with different function,such as heavy duty/medium duty/light duty truck,mining tipper,tractor truck,various construction project equipment etc...
Our all products with world-known brands spare parts,such as ZF steering and oil pump;WABCO braking system;VOSS braking connectors made in Germany;MANN+HUMMEL fuel filer system and air filter;VOD instrument and electric control block;German BEHR cooling system etc...Those high quality parts supplying ensure our products the first-class quality level and excellent driving performance.
Till now we have exported more than 30 countries and areas including Asia,Southeast Asia,Africa,South Africa etc..
We are committed to help more countries customer's engineering construction, make the world more harmonious and beautiful!
Quality Inspection:

Service:


Pre-service:

  1. Inquiry and Consulting support.
  2. Sample testing support.
  3. View our factory.
  4. Design various solutions as buyer's requirement.


After-sale service:

  1. Training how to use and maintain the truck.
  2. Our engineers supply the support of technology.
  3. 12 months warranty for 3 key spare parts(Engine,Transmission,Axle)
  4. Parts supply on time.
  5. 24 hours service and technology support.
