| Categories | Heavy Duty Dump Truck |
|---|---|
| Brand Name: | CIVL |
| Model Number: | CIVL |
| Certification: | ISO,CCC |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 units per week |
| Delivery Time: | Within 35 days |
| Packaging Details: | Nude |
| color: | white |
| material: | Q345 |
| warranty: | yes |
| logo: | option |
| spare parts: | option |
| Drive wheel: | 6x4 |
| Engine capacity: | > 8L |
| Fuel type: | Diesel |
| Condition: | New |
Quick Details
| Drive Wheel: | 6x4 | Capacity (Load): | 31 - 40t | Horsepower: | 251 - 350hp |
| Condition: | New | Transmission Type: | Manual | Emission Standard: | Euro 2 |
| Fuel Type: | Diesel | Engine Capacity: | > 8L | Gross Vehicle Weight: | 25000 |
| Place of Origin: | Shandong China (Mainland) | Brand Name: | SINOTRUK | Model Number: | ZZ3257M3247N |
| Dimensions (L x W x H) (mm): | 7665*2496*3490 | color: | as you like | keywords: | howo a7 dump truck 6x4/howo a7 dumper |
Description:

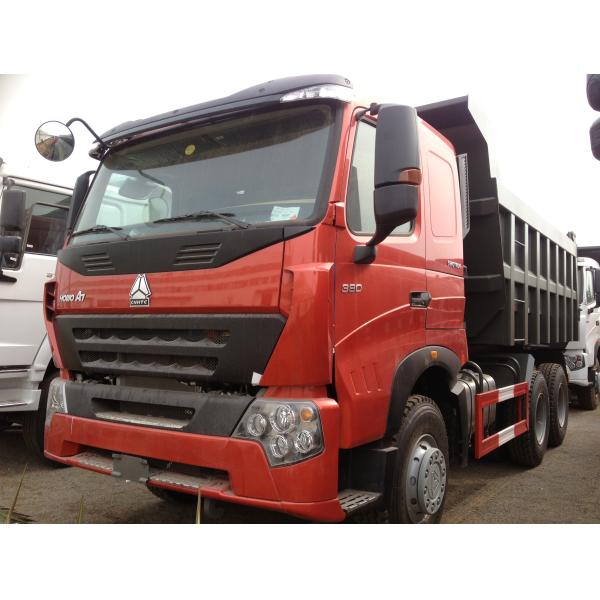

1.SINOTRUCK HOWO A7 series trucks own the elegant appearance, strong operation system and excellent safety.
2.Sino Heavy Machinery Co,Ltd is the authorized company of SINOTRUK(CNHTC), and mainly deal with heavy duty trucks /all spare parts and service We supply HOWO, , KING, GOLDEN PRINCE, HOHAN series 4X2, 6X4, and 8X4 dump trucks, tractor trucks, cargo trucks, garbage trucks, oil tank trucks, water tank trucks, log trailers tractors, terminal tractors, etc. Our products arrange from 190 horse power to 410 horse power, and loading capacity cover from 5 tons to 50 tons.
Application:
It is suitable for in harsh environments, unloading and transport ore and others.
Specifications:
1. howo a7 6X4 380 hp dumper trucks
2. MAN technologhy
3. large loading capacity
4. large power
wo a7 6X4 380 hp dumper trucks
| Truck Model No: | ZZ3257M3247N1 A7E/300/K32/6*4WA |
| Gross weight kg | 25000 |
| curb weight kg | 11950 |
| Rated load quality kg | 12920 |
| Max. Speed (Km/h) | 78 |
| Cab | A7-W low floor board long cab with one sleeper, with air conditioner |
Engine | Make : SINOTRUK Diesel: 4-stroke direct injection diesel engine Engine model : WD615.87, EURII emission , new design on intake & exhaust system, power and fuel economy get improved 6-cylinder in-line with water cooling, turbo-charging and intercooling Max. output : 336Hp (221 Kw ) at 2200 rpm Displacement : 9.726L |
Transmission | HW15710 ,10gear transmission SINOTRUK 10 forward & 2 Ratio:14.28 Torque: 1900Nm |
| clutch | SINOTRUK Φ430 C size clutch |
Driving Axle | AC16 Strengthen widen whole steel-cast 16T off road axle with double decelerator and double tires Ratio:4.77 |
| Front axle | HF9 steel-cast 9T font axle,stick brake |
Braking system | Service brake: dual circuit compressed air brake Parking brake: spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake Option:ABS |
| Electrical System | Operating voltage:24V, negative grounded |
| Steering | ZF8098 German Hydraulic steering with powder assistance |
| Wheel & Tyres | 12.00-20 No.of Tyres:10+1 |
| No. of Spring | 10/12 |
| Front/ Rear axles loading capacity (kg) | 7000 /18000 |
| No. of axles | 3 |
| Wheel base mm | 3225+1350 |
| Front/ Rear wheel track mm | 2041/1830 |
| Front/Rear hanging mm | 1540/1550 |
| Approach/ Departure angle (°) | 20 /29 |
| Dimensions(L×W×H) (mm) | 7665*2496*3490 |
| Van dimension mm | 4800*2300*1500 F style lifting cylinder Thickness: floor 8mm side 6mm |
TAG: tipper/ dumper/ isuzu tipper/ tipper trailer /tipper truck /dump truck /dump tipper/ tipper truck/ Special Dump Truck
Package&Shipping:
Quality Inspection:
Service:
Pre-service:
After-sale service:
|
