| Categories | Heavy Duty Dump Truck |
|---|---|
| Brand Name: | CIVL |
| Model Number: | CIVL |
| Certification: | ISO,CCC |
| Place of Origin: | China |
| MOQ: | 1 |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000units/month |
| Delivery Time: | Within 35 days |
| Packaging Details: | nude |
| color: | yellow |
| material: | Q345 |
| drive hand: | lhd or rhd |
| emission stander: | Euro2 ,3 |
| condition: | new |
| Drive wheel: | 6x4 |
| Fuel type: | Diesel |
| Capacity (load): | 31 - 40t |
| Emission standard: | Euro 3 |

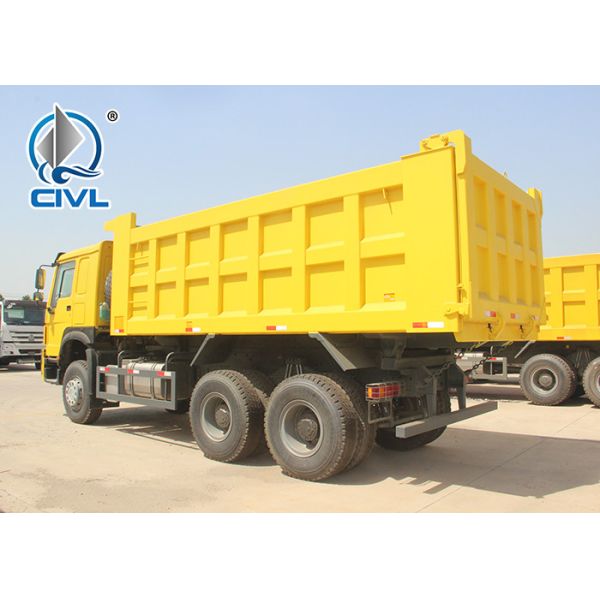

Sinotruk howo7 dump truck 6x4 30-40T 16m3 capacity hw76 cabin
1. About our howo dump trucks :The main product we have is tipper trucks, tractor trucks, conceret mixers,cargo trucks, dry cement transport truck,fire fighting truck ,all-wheel driving wheel ,oil/water/fuel tanker truck,mining dump truck,port terminal tractor truck ,semi-trailer truck head , special trucks for army and so on.
2. About CNHTC howo dump truck : Be comprehensive with Euro2 and Euro3 engine equipped. Driving type: 4×2, 4×4 6×2, 6×6 ,6×4, 8×4 and 10×4 etc. Power range:
266PS -420PS.howo Leader In Heavy Duty Truck Industry Driving King On The Road New HOWO dump truck, High Quality , More Lighter 1.High Level Comfortable:Cabin 4
point full -floating air suspension ,adjustable steering wheel with various heightsand angles.air suspension
3.High Security :The key parts adopt the world's top products
4.Top configration :Discal brakes +EVB,ABS+ASR+EBL+TPM,More Powerful electronic management system. 4.High Quality :CNHTC's base on Strong technical support
and top level technology
| DESCRIPTION & SPECIFICATIONS | |||||||
| Item | HOWO 6×4 dump truck | ||||||
| Model | zz3257n3847A | ||||||
| Gross Weight | 25000kg | ||||||
| Overrall Dimensions | 8545×2496×3360(mm) | ||||||
| Engine | WD615.47, 371HP, 273kw/2200rpm, EURO II Emission, 9726cc capacity Turbo-charging, inter-cooling, 6 cylinder in line | ||||||
| Emission standard | EURO II | ||||||
| Transmission | HW19710,10forward&2reverse,HOWO brand | ||||||
| Steering | ZF, hydraulic steering with power assistance(left hand drive) | ||||||
| Cab | HW76 one sleeper, with A/C, German VDO instrument and electronic controlled system, four-point support fully floating spring suspension +shock absorbers with transverse stabilizer, both the drive seat and the co-driver seat have the double locking organization safety belts, exterior sun visor, inner side sun shield, the alarming system of the alternator when there is something wrong. | ||||||
| FrontAxle | HF9 with drum brake | ||||||
| RearAxle | HC16 x2 32000kg payload capacity | ||||||
| Suspension | front: 10 multi-leaf spring; back: 12 multi-leaf spring | ||||||
| Rim|Tyres | 13R22.5 Radial tubeless tire,11units(10tires and 1spare tire), | ||||||
| Lift of cargo box | ventral lift strenghened T type | ||||||
| Cargo box internal dimensions | 5800x2300x1500mm 20cbm, 35tons payload capacity | ||||||
| Thickness of cargo box | Floor:8mm,Side:6mm. Option: both can be thicken according to clients requirements. | ||||||
| Oil Tank | 300L aluminum material oil tank | ||||||
| Color | white,yellow,green,red(optional) | ||||||
| Note: Some of the configuration can be changed according to your special requirement. | |||||||
Other products:
Truck series:
1. Dump trucks; cargo trucks (1-120ton)
2. Tractor trucks; (1-120 tons)
3.Tanker trucks,( 54873020, 54798871, 54798867, 54633157, 54622108,
54621778, 54621524, water tanker and oil tanker)
4. Mixer trucks and concrete pump truck
5. Mine dump trucks( 30 tons off-road mine tipper, 50tons/70tons
mine dump truck, 6x6 articualted dump trucks)
6. Off-road drive trucks( 4x4. 6x6 and 8x8 Trucks)
7. Garbage trucks( garbage compactor truck, suction trucks)
8. Truck mounted cranes(normal road truck crane, truck mounted
crane)
9. Special trucks( wrecker trucks, military trucks...)
10.Semi trailers( container semi-trailer, low-bed semi-trailer,
tanker trailer, dumper trailer...)
11.Truck spare parts
Machine series:
1.Wheel loader,Backhoe loader
2.Roller
3.Motor Grader
4.Bulldozer
5.Excavator
6.Crane(truck crane,crawler crane,truck mounted crane,self erecting
crane)
7.Forklift and 45t contain reach stacker
8.Paver and so on
9. Spare parts
|
