| Categories | Heavy Duty Dump Truck |
|---|---|
| Brand Name: | CIVL |
| Model Number: | CIVL |
| Certification: | ISO,CCC |
| Place of Origin: | China |
| MOQ: | 1 |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000units/Year |
| Delivery Time: | Within 35 days |
| Packaging Details: | nude |
| material: | Q235 |
| Color: | Option |
| Warranty: | year |
| Tire: | Triangle |
| Drive wheel: | 6x4 |
| Fuel type: | Diesel |
| Condition: | New |
| Capacity (load): | 51 - 60t |
Description:

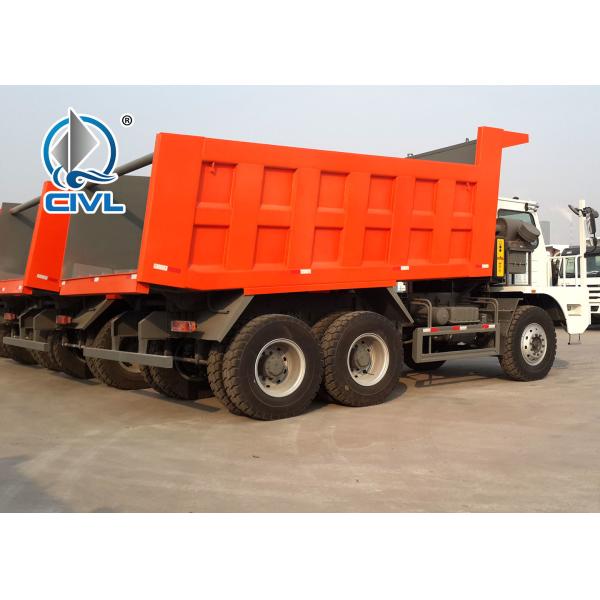

The Mine Overlord adopts a cab with high strength framework covered with protective materials. The cab is set with one side door. A high-power diesel engine is used. The heating device adopted makes it easier for the vehicle to start and provides heat to the cab in cold days. The cost-effective chassis brings customers with good economic efficiency and social effectiveness.
Specifications:
| Engine | Model | WD615.47/ D12.42 |
| Horsepower | 371/420 | |
| Maximum output Kw/r/min | 1460/1300-1600; 1820/1100-1500 | |
| Type | 6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection | |
| Displacement | 9.726L/ 11.596L | |
| Make SINOTRUCK (CNHTC), Euro II emission standard, Rigid fan | ||
| Cab | SINOTRUK HW7D single side cab,no bunk,left driving,air conditioner | |
| Clutch | SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance | |
| Transmission | SINOTRUK HW19712 / HW20712 transmission ,12 forward and 2 reverse | |
| Front Axle | SINOTRUK HF12 Front Axle,HOWO 12-ton front axles of equipped with drum brakes. | |
| Steering | German ZF8118 Steering Gear Box ,hydraulic steering with power assistance | |
| Rear Axles | SINOTRUK AC26 Heavy reduction drive axle,STR hub-reduction with differential locks between wheels and axles, enforced STR axle. | |
| Brake System | Service brake:dual circuit compressed air brake | |
| Parking brake (emergency brake):spring energy,compressed air operating on rear wheels | ||
| Auxiliary brake:engine exhaust valve brake | ||
| Tyres | Rims:10.0-25,12 hole-steel ;Tyres:14.00-25 Mining tyre with 1 Spare tire.Option:14.00R25 Mining radial tyre | |
| Electrics | Operating voltage:24V,negative grounded | |
| Starter:24V,7.5 Kw | ||
| Alternator:3-phase,28V,1500 W | ||
| Batteries:2x12 V,180 Ah | ||
| horn,headlamps,fog lights,brake lights,indicators and reverse light | ||
| Oil Tank | D type-500L Aluminum alloy fuel tank | |
| Dimensions | Overall length x width x height 8634x3296x3770 | |
| Wheel base 3800+1500 | ||
| Carriage | Internal Dimensions(mm) | 5800x3100x1800 |
| Steel thickness of Carriage(mm) | Floor:16mm/Side:12mm | |
| Hydraulic Lift of Carriage | Front lift | |
| Weight (kg) | curb weight 20000 | |
| Gross vehicle weight 70000 | ||
| Performance | Maximum driving speed (km/h) 57 | |
| Fuel consumption (1/100 km) 50 | ||
Competitive Advantage
1. Large loading capacity: 60tons to 70tons
2. Low fuel consumption: Best engine combined with good gearbox and
advanced tridem axles is the
best powertrain matching.
3. Front axles steering system can increase the steering capacity
at low speed. Real meet the mining
area's demand.
4. Rear steering system reduce the turning radius which make the
flexibility increased. Meanwhile,
it can reduce tire wear. To reduce customers' cost.
5. Hydro pneumatic suspension system of rear 2 axles make it more
comfortable for driver. Also, the
axles can be protected better due to the perfect vibration reducing
performance of the hydraulic system. This also can extend the
service time of the trucks.
6. Horizontal regulator make it safer when unloading the goods.
Usage of Patents
| Patent Name | Type | Patent Number | |
| 1 | One-side-door cab which can be flipped | New type | ZL200820233338.1 |
| 2 | Cab for mine heavy-duty vehicle | New type | 201020300571.4 |
| 3 | Radiator cover for heavy mining vehicles | New type | 201020101426.3 |
| 4 | Right side platform assembly for heavy mining vehicles | New type | 201020101325.6 |
| 5 | Instrument sets of heavy duty truck cab | Appearance | 201030140919.3 |
| 6 | New suspension system | New type | ZL200920017240.7 |
| 7 | New front leaf spring rear bracket | New type | ZL200820026501.7 |
| 8 | Heavy duty truck cab rear-view mirror | Appearance | 200830354794.7 |
| 9 | Brake cooling device | New type | ZL200820016846.4 |
| 10 | Transmission | New type | ZL200720027568.8 |
| 11 | Pull-type diaphragm spring clutch assembly for heavy-duty vehicle | New type | 200920019097.5 |
| 12 | Cross beam assembly | Appearance | 200930261302.4 |
| 13 | New sliding ball joint assembly | New type | 200820226455.5 |
| 14 | Dump truck exhaust | New type | 200920239701.5 |
| 15 | Dump truck frame assembly | New type | 200920281955.3 |
| 16 | Baseboard heating device | New type | 200920312761.5 |
|
