260t/h Heavy Construction Machinery 750x1060 Jaw Crusher 110kw Engine

Categories	Heavy Construction Machinery
Brand Name:	CIVL
Model Number:	CIVLC106
Certification:	ISO,CCC
Place of Origin:	China
MOQ:	1
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100 Units per month
Delivery Time:	Within 35 days
Packaging Details:	In nude
Weight:	20 tons
Whole size:	180025003500mm
Bearing model:	23060 x2 stes
Belt model:	5v-5400 x11 units
Size of feed inlet:	750x1060mm
Condition:	New
Process-ing voume:	180-260t/h
Motor power:	110kw
Color:	Customer's Requiement

Contact Now

Add to Cart

Company Info.

SINO VEHICLE & EQUIPMENT COMPANY LTD

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

260t/h Heavy Construction Machinery 750x1060 Jaw Crusher 110kw Engine

750x1060 Jaw Crusher 110kw Engine /Crushing Machinery20 Tons Weight /Primary Crushing Equipment

Description:
The jaw crusher is mainly used for crushing mining, construction, chemical industry, metallurgy and other industries. The jaw crusher is mainly used in the first crushing of various crushing equipment. The jaw crusher is an indispensable equipment for bulk crushing.

This series of crushers are of curved extrusion type.

The working principle is:

The motor drives the belt and pulley, and the movable jaw moves up and down through the eccentric shaft.

When the movable jaw rises, the angle between the toggle plate and the movable jaw becomes larger, thereby pushing the movable jaw to approach the fixed jaw, and at the same time the material is crushed or chopped to achieve the purpose of crushing;

When the movable jaw goes down, the angle between the elbow bushing and the movable jaw becomes smaller, the movable jaw plate leaves the fixed jaw plate under the action of the pull rod and the spring, and the crushed materials are discharged from the lower opening of the crushing cavity.

With the continuous rotation of the motor, the operation cycle of the crushing jaw belongs to crushing and discharging materials, and mass production is realized.

Specification

Model	Size of feed inlet	Maximum feed granularity	Trimming scope of discharge oping	Process-ing voume	Revolution of eccentrid shaft	Motor power	Weight

C106	750x1060	＜1000	50-150	180-260	250	110	20

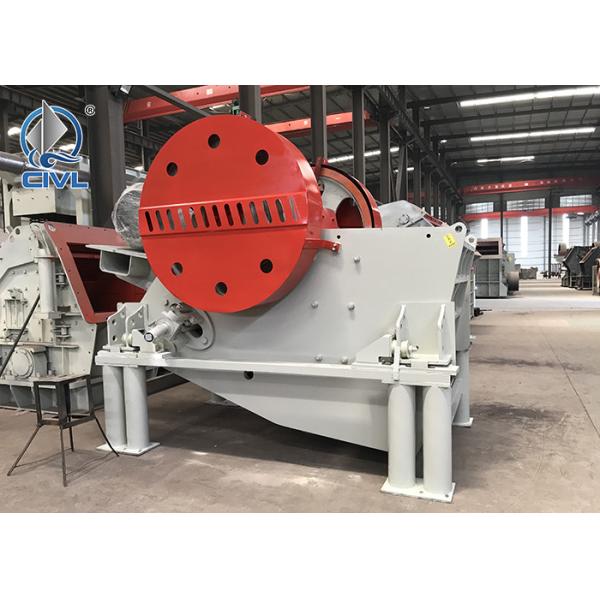

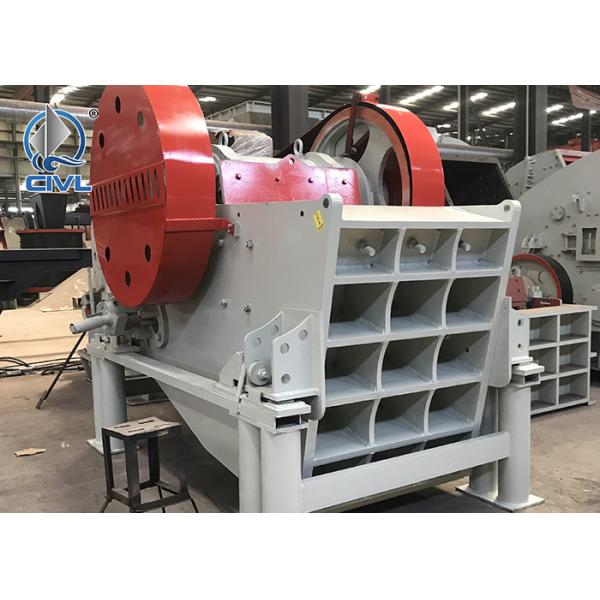

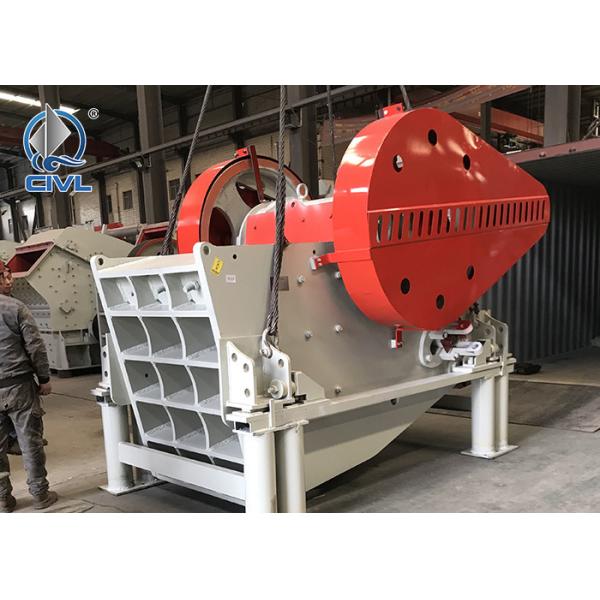

Photos:

Features:

"V" symmetrical crushing cavity
Simple structure and low investment cost
Large crushing ratio, quality assurance

Application range:

It is mainly used for medium-sized crushing of various ores and bulk materials.
Widely used in mining, smelting, building materials, highways, railways, water conservancy and chemical industries.

Scope of application:

Feed particle size: 120-1500mm
Production capacity: 1-2200t/h

Applicable materials:

River pebble, granite, basalt, iron ore, limestone, quartz stone, coal gangue, construction waste, etc.

A complete set of pebble sand making equipment usually includes :
vibrating feeder, jaw crusher, impact crusher, cone crusher, river pebble sand making machine

(VSI sand making machine, impact sand making machine, etc.), vibration Screens, sand washing machines, dust collectors, etc.
