| Categories | Sewage Suction Truck |
|---|---|
| Brand Name: | CIVL |
| Model Number: | CIVL |
| Certification: | ISO,CCC |
| Place of Origin: | China |
| MOQ: | 1 |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 units per year |
| Delivery Time: | Within 35 days |
| Packaging Details: | In nude, marine anti-corrosion packaging |
| Drive type: | 4X2 |
| Wheel base(front/rear) (mm): | 4700 |
| Gross Weight(kg): | 16000kg |
| Engine: | wd615.62 |
| Horse Power(HP): | 196kw/266HP |
| Fuel type: | Diesel |
| Condition: | New |
| Gross vehicle weight: | 16000 |
| Product name: | Sewage Vacuum Tank Trucks |

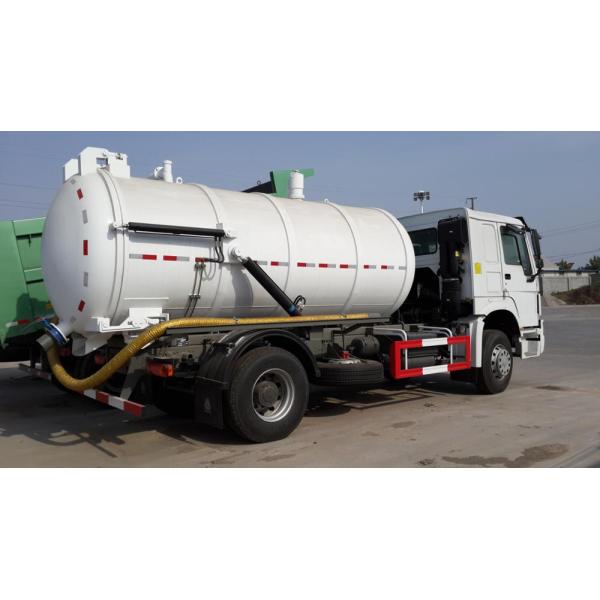

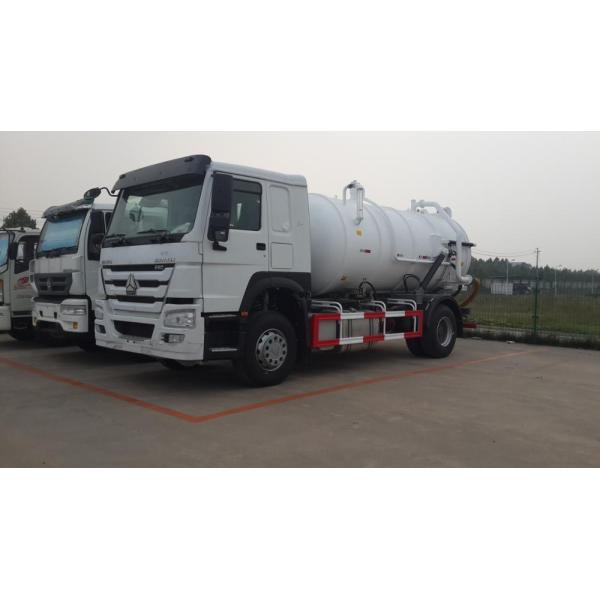

Sinotruk HOWO 12,000 Liter Vacuum Sewage Suction truck
Customerized is acceptable ,pls kindly advise details as below:
a.Tanker capacity :from 1m3 to 22m3 could be choosen;
b.Material of tanker : We could supply carbon steel like Q235 ,or stainless steel SS304
c.Emission standard of engine in your Country
d.If you have your prefer brand ,pls tell us : We could supply Sinotruk ,Dongfeng ,Shacman ,JAC,FOTON ,I-SUZU , etc
e.You can choose left hand drive or right hand drive
Based on these details ,we would choose right style for you !
I.Specification of Sinotruk HOWO 12,000 Liter Vacuum Sewage Suction Truck
| Brand | CIVL | ||
| Drive type | 4x2 | ||
| Vehicle Main Dimensions | L×W×H(mm) | 8310*2500*3200 | |
| Wheel base(front/rear) (mm) | 4700 | ||
| Approach/Departure angle(°) | 19/20 | ||
| Weight in KGS | Gross Weight(kg) | 16000 | |
| Rated Weight(kg) | 8300 | ||
| Curb Weight(kg) | 7505 | ||
| Engine | Model | wd615.62 | |
| Type | 6-cylinder in-line with water cooling; | ||
| 4-stroke direct injection; | |||
| supercharged cold | |||
| Horse Power(HP) | 196kw/266HP | ||
| Emission Standard | Euro II | ||
| Gearbox | HW15710, 10 speed forward with 2 reverse, manual | ||
| Front/Rear Axle Load(KG) | 6000/10000 | ||
| Brake | Air brake | ||
| Tire | 12.00R20,6+1 pcs | ||
| Sewage Suction System | |||
| Tank Volume(L) | 12000Liter | ||
| Tank shape | Cylindrical | ||
| Tank Material | 6mm thickness carbon steel | ||
| Vacuum pump | Brand /Model | Yifeng brand Using Double vacuum pump | |
| Rotating speed | 500r/min | ||
| Vacuum degree | 400Pa(99.6%) | ||
| Pumping speed | 68L/S x2 | ||
| Suction Depth(m) | More than 6 meter ,with 25m hose | ||
| Tank Tipping angle(°) | More than 45 | ||
| Rear door | Open and closed by hydraulic cylinders | ||
