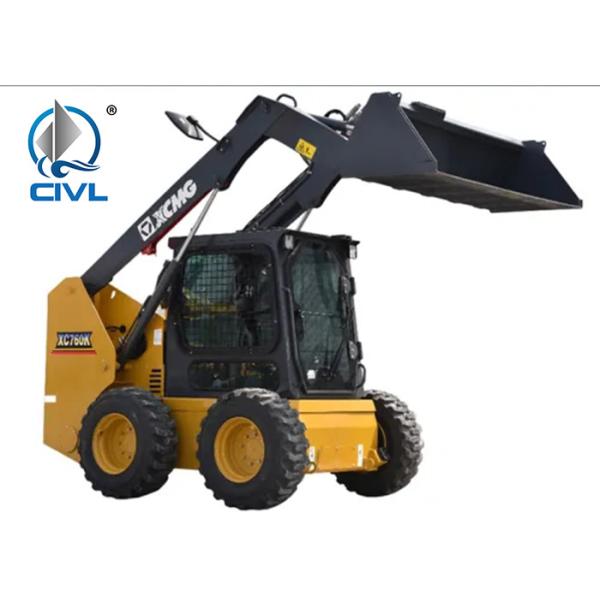

New Wheel Skidsteer Loader Xc760K Chinese Mini-SkidSteer Loade

Product Description

1,The renowned brand engine equipped features strong power, ultra-low emission, and higher fuel efficiency.
2,Compact structure, low turning radius, and strong site adaptability.
3,The international interchangeable quick-change coupling enables the change of tens of attachments, including sweeper, planer, breaking hammer, and ditcher, rapidly and conveniently.
4,The ROPS&FOPS cab and the seat belt, bumper, fire extinguisher, and safety hammer equipped guarantee the personal safety of the operator.
5,The cab can be tilted backward for a large angle to make the repair and maintenance portions more accessible.

Main Parameter

Description	Unit		Parameter value
Rated load	kg		1080
Tipping load	kg		2160
Operating weight	kg		3450	3700	3650
Maximum breakout force	kN		22
Engine	Manufacturer		YANMAR	Weichai
	Model		4TNV98T	WP4G80E231	WP4.1G82E301
	Rated power	Hp/kw	82.2/61.3	80/60	80/60
	Rated speed	rpm	2500	2300	2400
	Cooling mode		Water-cooling
Performance parameter	Operation mode		Pilot hydraulic control & multi-function electronic control
	Tire standard		12-16.5
	Maximum speed	Km/h	12.5
Hydraulic system	Hydraulic flow rate	L/min	95	87.4	91.2
	Optional large flow		142.5	131	136.8
	Hydraulic pressure	bar	210
Maximum operating height	mm		4180
Bucket hinge pin height	mm		3205
Cabin top height	mm		1960
Maximum horizontal height of bucket bottom	mm		2997
Length without bucket	mm		2660
Length with bucket	mm		3610
Toppling angle	°		40
Maximum unloading height	mm		2450
Ground-bucket angle	°		30
Rotating angle of bucket at highest point	°		83
Unloading distance	mm		570
Wheel base	mm		1188
Departure angle	°		25
Ground clearance	mm		205
Front radius of turning circle (without bucket )	mm		1320
Front radius of turning circle (with bucket)	mm		2230
Rear radius of turning circle	mm		1715
Length of tail	mm		1055
Wheel track	mm		1500
Tire edge width	mm		1807
Bucket edge width	mm		2000
Bucket capacity (stacking height)	m³		0.6
Bucket capacity (tiling)	m³		0.47
Diesel tank capacity	L		95
Capacity of hydraulic oil tank	L		70

We supervise the process from the factory to the port designated by the customer to ensure that the customer's products arrive at the destination accurately and safely.
