16T Road Motor Graders GR200 with D6114 ZG14B Engine Road Machinery

Categories Motor Graders
Place of Origin: CHINA
Brand Name: XCMG GR200
Certification: ISO CCC
Model Number: GR200
MOQ: 1 unit
Price: usd40000-usd50000 per unit
Packaging Details: Nude
Delivery Time: Within 20-30 days after the receipt of the deposit
Payment Terms: T/T, L/C
Supply Ability: 100 units per week
Certificate: ISO
Color: Yellow
Engine model: D6114|ZG14B
Model: GR200
Operating weight: 16000kg
Product Name: Motor Graders
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

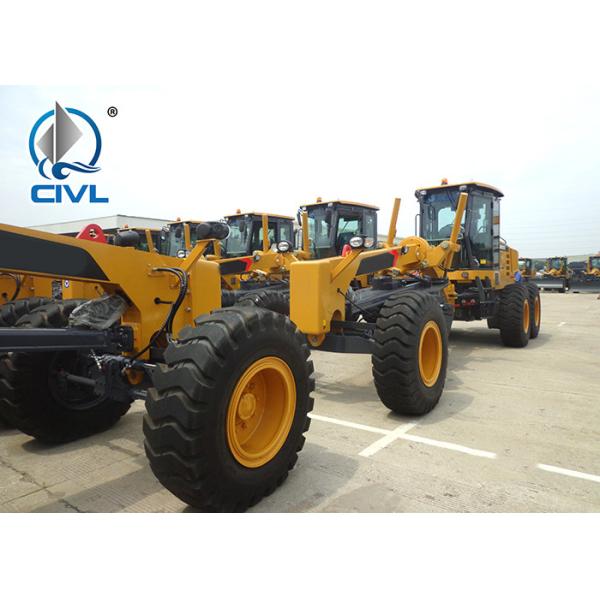

16T Road Motor Graders GR200 with D6114 ZG14B Engine Road Machinery


16T Road Motor Graders GR200 with D6114 ZG14B Engine , ISO Approval


Description:


Sino Heavy Machinery Co., Ltd., is the distributor of , HOWO, and all SINOTRUK series trucks made by China National Heavy Duty Truck Corp. (CNHTC). We are a group corporation that combines industry and trade. Our products involve dump trucks, dump trailers, concrete mixers, semi-trailers and hauling trucks.


Our main products are:


1. HOWO dump truck, HOWO tractor, HOWO concrete mixer, HOWO parts, water tank, semi-trailers, etc.
2. XCMG truck cranes, XCMG wheel loaders and spare parts.
We markets products in more than 50 countries and districts all over the world, including Russia, Iran, Indonesia, Vietnam, Saudi Arabia, Algeria, Sudan, Angora, Turkey, Brazil, Peru, and Cuba.
We believe that our warm and professional service will bring you pleasant surprises as well as fortune.
Cooperate with us, You can get harmonious service like family.


Specification:


Basic specification

Engine model

D6114 ZG14B

Rated power/speed

147kW/2200rpm

Dimension(LxWxH)

8932×2625×3470mm

Operating weight(Standard)

16000kg

Performance specification

Travelling speed ,forward

5/8/11/19/23/38 km/h

Travelling speed ,reverse

5/11/23 km/h

Tractive force(f=0.75)

82KN

Max. gradeability

20%

Tire inflation pressure

260 kPa

Working hydraulic pressure

16 MPa

Transmission pressure

1.3-1.8MPa

Operating specification

Max. steering angle of front wheels

±50°

Max. lean angle of front wheels

±17°

Max. oscillation angle of front axle

±15°

Max. oscillation angle of balance box

15

Frame articulation angle

±27°

Min. turning radius using articulation

7.3m

Biade

Maximum lift above ground

450mm

Maximum depth of cutting

500mm

Maximum blade position angle

90°

Blade cutting angle

28°_70°

Circle reversing rotation

360°

Moldboard width X height

4270×610mm


Basic specification

Engine model

D6114 ZG14B

Rated power/speed

147kW/2200rpm

Dimension(LxWxH)

8932×2625×3470mm

Operating weight(Standard)

16000kg

Performance specification

Travelling speed ,forward

5 /8 / 11 /19 /23/ 38 km/h

Travelling speed ,reverse

5/ 11/ 23 km/h

Tractive force(f=0.75)

82KN

Max. gradeability

20%

Tire inflation pressure

260 kPa

Working hydraulic pressure

16 MPa

Transmission pressure

1.3 - 1.8MPa

Operating specification

Max. steering angle of front wheels

±50°

Max. lean angle of front wheels

±17°

Max. oscillation angle of front axle

±15°

Max. oscillation angle of balance box

15

Frame articulation angle

±27°

Min. turning radius using articulation

7.3m

Biade

Maximum lift above ground

450mm

Maximum depth of cutting

500mm

Maximum blade position angle

90°

Blade cutting angle

28°_70°

Circle reversing rotation

360°

Moldboard width X height

4270×610mm
