| Categories | Sinotruk Spare Parts |
|---|---|
| Brand Name: | SHMC |
| Model Number: | 1E series |
| Certification: | CE ISO EPA |
| Place of Origin: | China |
| MOQ: | 1 |
| POWER: | Gasoline |
| Apply: | model & small machine |
| type: | air-cooled 4-stroke |
| Cylinder: | Single Cylinder |
| IndexProject | Specifications |
|---|---|

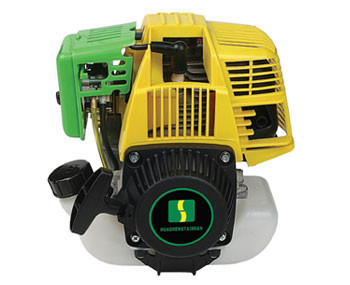

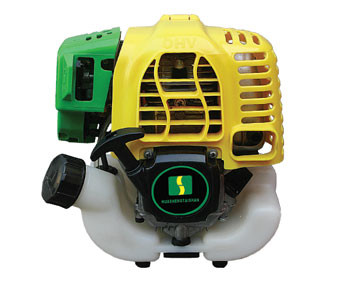

| Model | 134F-HS |
| Engine Type | Single Cylinder Air-Cooled 4-Stroke |
| Discharging Capacity(mL) | 24.5 |
| Max Power/Speed(kW/r/min) | 0.55/7000 |
| Fuel Consumption Rate(g/kW.h) | ≤560 |
| Fuel | 93# |
| Spark Plug Gap(mm) | 0.5～0.6 |
| Starting Way | Hand Starting |
| Carburettor Type | Diaphragm Type |
| Ignition Mode | CDI |
| Fuel tank volume(ml) | 640 |
| Oil volume Main technical parameters(ml) | 75 |
| Rotation Direction | Levorotatory |
| Net weight(kg) | 3.2 |

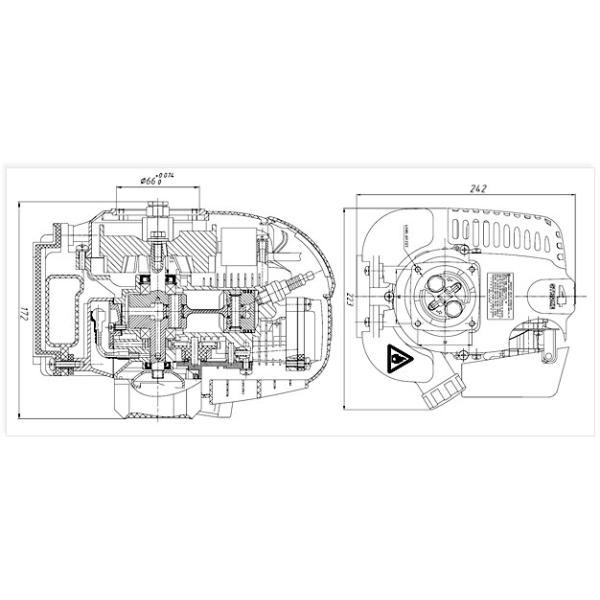

| Outline Dimensions(mm) | 223×172×242 |
| IndexProject | Specifications |
|---|---|
| model | 139F |
| Engine Type | Single Cylider,Air-Cooled,2-Stroke |
| Discharging Capacity(mL) | 31 |
| Max Power/Speed(kW/r/min) | 0.7/6500 |
| Fuel Consumption Rate(g/kW.h) | ≤560 |
| Fuel | 93# |
| Spark Plug Gap(mm) | 0.6～0.7 |
| Starting Way | Hand Starting |
| Carburetor Type | Diaphragm Type |
| Ignition | CDI |
| Engine package dimension(ml) | 900 |
| Oil volume(ml) | 100 |
| Rotation Direction | Levorotatory (look from the output side) |
| Net Weight(kg) | 4.3 |
| External Dimension(mm) | 213×254×251 |
| model | 160FLA |
|---|---|
| Type | Air-cooled 4 stroke OHV Single Cylinder Vertical Shaft |
| Bore × Stroke(mm×mm) | 60×42 |
| Displacement(mL) | 118 |
| Compression Ratio | 8:1 |
| Engine package dimension(L) | 1.4 |
| Eccentric distance(mm) | 21 |
| External Dimension(mm) | 410×360×390 |
| Net Weight(kg) | 11.5 |
| 12hPower(kW/r/min) | 2.0/4000 |
| Max Power/Speed(N·m/r/min) | 5.0/3000 |
| model | HS168F |
|---|---|
| Type | Air-cooled 4 stroke OHV Single Cylinder Vertical Shaft |
| Bore × Stroke(mm×mm) | 68×45 |
| Displacement(mL) | 163 |
| Compression Ratio | 8.3:1 |
| Engine package dimension(L) | 3.6 |
| Eccentric distance(mm) | 22.5 |
| External Dimension(mm) | 400×330×375 |
| Net Weight(kg) | 14.5 |
| 12hPower(kW/r/min) | 3.2/3600 |
| Max Power/Speed(N·m/r/min) | 8.5/2800 |
| model | 170FLC |
|---|---|
| Type | Air-cooled 4 stroke OHV Single Cylinder Vertical Shaft |
| Bore × Stroke(mm×mm) | 70×45 |
| Displacement(mL) | 173 |
| Compression Ratio | 8:1 |
| Engine package dimension(L) | 1.54 |
| Eccentric distance(mm) | 22.5 |
| External Dimension(mm) | 450×400×430 |
| Net Weight(kg) | 15 |
| 12hPower(kW/r/min) | 3.5/4000 |
| Max Power/Speed(N·m/r/min) | 8.5/3000 |
|
