| Categories | Shantui Bulldozer |
|---|---|
| Brand Name: | shantui |
| Certification: | iso ccc |
| Place of Origin: | china |
| MOQ: | 1 unit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000units/month |
| Delivery Time: | 20-30days |
| Packaging Details: | nude |
| engine: | cummins |
| color: | yellow |
| brand: | shantui |

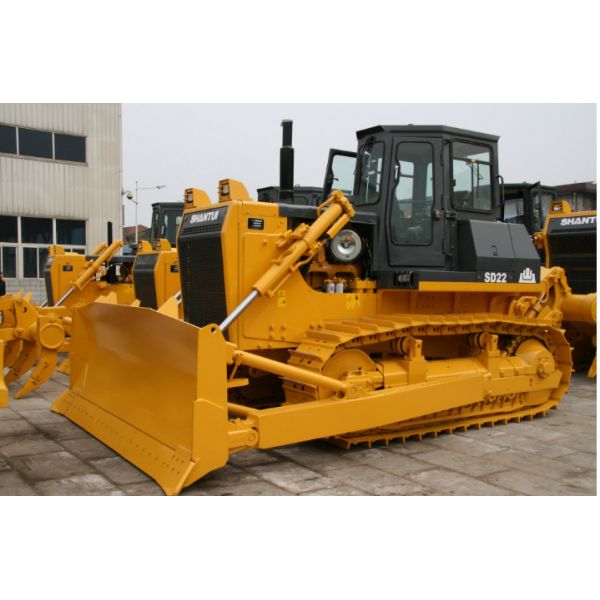

cummins engine shantui dozer sd32 / sd22 / sd16
| 130 HP SD13 Technical specifications: | Blade Type | Straight-tilt | Angle | |
| Min. ground clearance: | 320 mm | 320 mm | ||
| Ground pressure: | 0.064 MPa | 0.064 MPa | ||
| Minimum turning radius: | 4.466 m | 4.545 m | ||
| Gradeability: | 30° | 30° | ||
| Track gauge: | 1880 mm | 1880 mm | ||
| ENGINE | Model & type | Shangchai SC8D143G2B1; Water-cooled, in-line, 4-cycle, direct injection and turbocharged | ||
| Rated power | 95.5 kW | |||
| Number of cylinders | 6—114 x 135 mm (bore x stroke) | |||
| Piston displacement | 8.27 L | |||
| Min. fuel consumption | 228 g/kW·h | |||
| Maximum torque | 674 N·m@1300 rpm | |||
| POWERTRANS MISSIONSYSTEM | Torque converter | 3-element, 1 stage, 1 phase | ||
| Transmission | Forced connected, planetary gear | |||
| Main drive | Spiral bevel gear, splash lubrication | |||
| Steering clutch | Wet, multidisc, spring loaded, hydraulic helping operation, mechanical separating, linking steering brake | |||
| Steering brake | Wet, floating, band type foot stepping brake with hydraulic helping | |||
| Final drive | 2-stage speed reduction of spur gear, splash lubrication | |||
| TRAVELSPEED | Gear | 1st | 2nd | 3rd |
| Forward | 0~3.2 km/h | 0~5.9 km/h | 0~9.8 km/h | |
| Reverse | 0~3.9 km/h | 0~7.1 km/h | 0~11.9 km/h | |
| UNDERCARRIAGE SYSTEM | Type | Swing type of sprayed beam, suspended structure of equalizer | ||
| Carrier rollers | 2 each side | |||
| Track rollers | 6 each side | |||
| Track type | Single grouser, dry type | |||
| Width of track shoes | 460 mm | |||
| Pitch | 190 mm | |||
HYDRAULIC SYSTEM | Maximum pressure | 14 MPa | ||
| Pump type | Gear pump | |||
| Discharge | 180 L/min | |||
Bore of working cylinder × no. | 90 mm × 2 | |||
| BLADE | Blade type | Straight-tilt | Angle | |
| Dozing capacity | 3.7 m3 | 3.4 m3 | ||
| Blade width | 3185 mm | 3745 mm | ||
| Blade height | 1090 mm | 915 mm | ||
Maximum drop below ground | 590 mm | 590 mm | ||
| RIPPER(OPTIONAL) | Maximum tilt adjustment | 400 mm | ||
Maximum digging depth of 3-shank ripper | 467 mm | |||
| Weight of 3-shank ripper | 1421 kg | |||
|
