| Categories | Road Maintenance Machinery |
|---|---|
| Brand Name: | CIVL |
| Model Number: | XTF1405 |
| Certification: | CCC ISO |
| Place of Origin: | China |
| MOQ: | 1 UNIT |
| Price: | Negotiation |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1300 units per day |
| Delivery Time: | 25-30 work days |
| Packaging Details: | Nude |
| Maximum seal width (m): | 4 |
| Asphalt spreading amount (kg/㎡): | 0.2-3.0 |
| Amount of gravel spread (L/㎡): | 3-22 |
| Application: | Road Maintenance |
| Color: | Customized |
| Condition: | New |
| total mass kg: | 31000 |
| Dimensions mm: | 12000×2550×3900 |

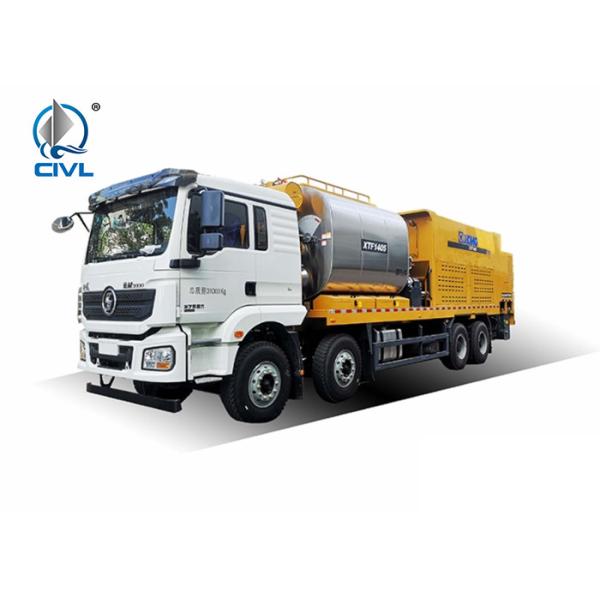

New XTF1405 Synchronous Gravel Sealer Truck Road Maintenance Machinery
Description:
XZJ5311TFCTBS (XTF1405) Asphalt and gravel synchronous sealing
truck can realize the simultaneous distribution of asphalt and
gravel to improve and improve the quality of road sealing;
It can spray rubber asphalt, base asphalt, modified asphalt,
emulsified asphalt and other asphalt;
It is suitable for the construction of the lower sealing layer and
the upper sealing layer of the road surface and the bridge deck,
the construction of the new and old pavement with the wear layer,
the layered construction of the asphalt pavement, and the separate
spraying of the asphalt gravel under special circumstances;
It can be used for interlayer treatment and mid-term maintenance
construction of high-grade highways.
Specification:
| project | Unit | parameter |
| parameter item | - | XTF1405 |
| Maximum seal width | m | 4 |
| Asphalt spread | kg/㎡ | 0.2-3.0 |
| Amount of gravel spread | L/㎡ | 3-22 |
| Asphalt distribution accuracy | % | ±1 |
| Asphalt tank volume | L | 8 |
| Crushed stone silo volume | m³ | 14 |
| Gravel particle size | mm | 3-25 |
| Working speed | km/h | 3-10 |
| Engine power kW/ | r/min | 276/1900 |
| total mass | kg | 31000 |
| Dimensions | mm | 12000×2550×3900 |
Photos:
of Fiber chip selaer
Features
1. Belt conveying silo, the height of the whole vehicle is not
increased during construction, the center of gravity of the whole
vehicle is low, and the construction adaptability of bridges,
culverts and ramps is good
2. The conveyor belt is a drawer design. There are rollers below
the conveyor belt, which can slide on the frame track. The conveyor
belt is easy to replace.
3. Hydraulic telescopic gravel spreader, the stone falls
vertically, and the spreading uniformity is good
4. The automatic folding asphalt spray beam is driven by a
hydraulic motor, which is easy to operate
5. Double diesel burner asphalt tank, fast heating speed and good
thermal insulation performance; paddle-type stirring device,
stirring evenly, can effectively solve the problem of rubber
asphalt precipitation and segregation
6. Adopt chassis full power PTO, high reliability and easy
maintenance
