VOE14713821 EC200D EC210D Excavator Travel Gearbox Travel Motor Reducer Final Drive Parts

EC200D EC210D Travel Gearbox Travel Motor Reducer Final Drive Parts VOE14713821

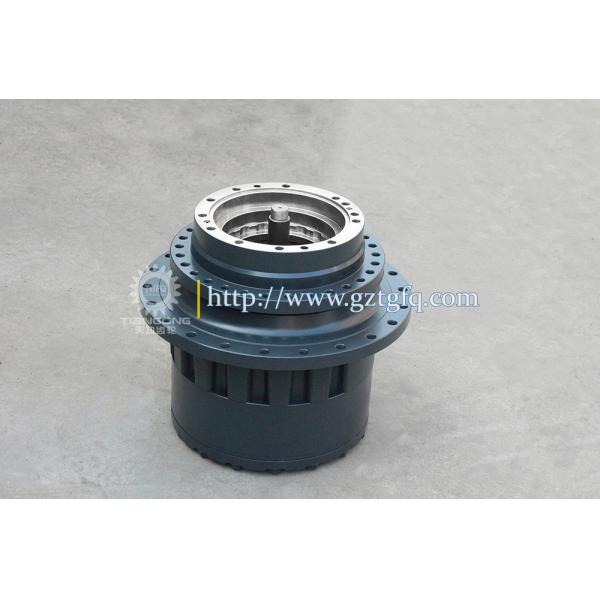

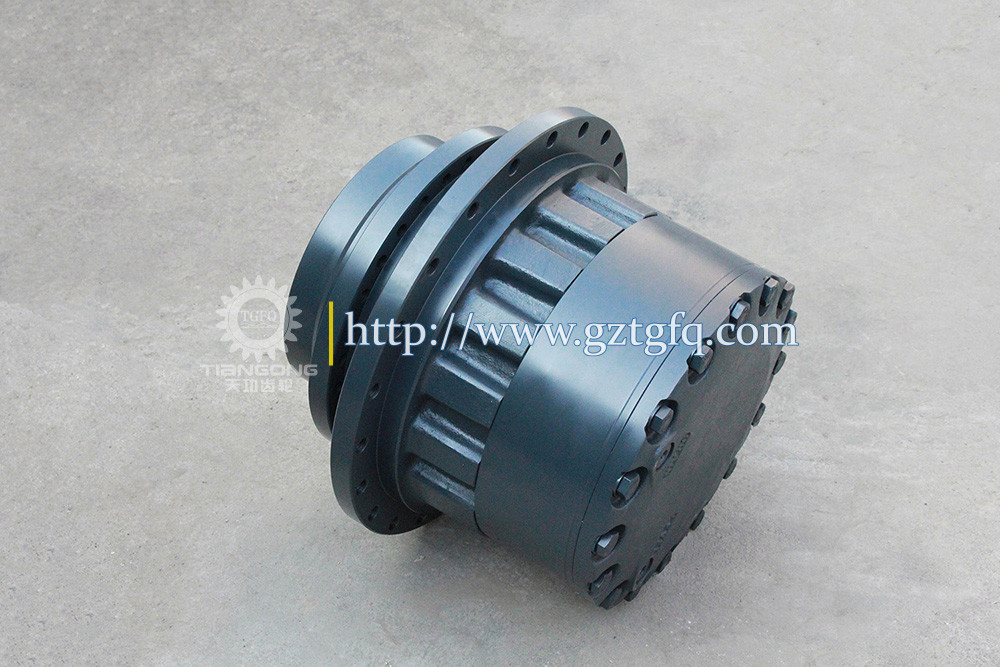

EC200D Final Drive Photo:

EC200D Final Drive Drawing:

Pos.	Part No	Qty	Parts Name	Comments
	VOE14713821	[2]	Travel gearbox
1	VOE14713822	[1]	Housing
2	VOE14693033	[2]	Bearing
3	VOE14713823	[1]	Seal
	VOE14730966	[2]	Sealing ring
	VOE14730967	[2]	O-ring
4	VOE14712551	[3]	Collar	THICK = 10,8 mm
4	VOE14726582	[3]	Collar	THICK = 10,9 mm
4	VOE14726583	[3]	Collar	THICK = 11,0 mm
4	VOE14726584	[3]	Collar	THICK = 11,1mm
4	VOE14726585	[3]	Collar	THICK = 11,2 mm
4	VOE14726586	[3]	Collar	THICK = 11,3 mm
4	VOE14732107	[3]	Collar	THICK = 11,4 mm
5	SA9324-21212	[2]	Pin
6	VOE14713825	[1]	Gear
	VOE14713826	[1]	Planet carrier
7	VOE14713827	[1]	Planet carrier
8	SA1036-00290	[1]	Thrust ring
9	VOE14713828	[4]	Gear
10	VOE14713829	[4]	Needle roller bearing
11	VOE14718296	[8]	Thrust washer
12	VOE14713830	[4]	Pin
13	SA9325-06012	[4]	Spring pin
14	VOE14713831	[1]	Gear
15	VOE948341	[1]	Snap ring
	VOE14713832	[1]	Planet carrier
16	VOE14713833	[1]	Planet carrier
17	VOE14713834	[3]	Gear
18	VOE14713835	[3]	Needle roller bearing
19	VOE14713836	[6]	Thrust washer
20	VOE14713837	[3]	Pin
21	SA9325-06012	[3]	Spring pin
22	VOE14505753	[1]	Ring
23	VOE14713838	[1]	Gear
24	SA7117-15230	[1]	Pad
25	VOE14713839	[1]	Cover
26	VOE60113872	[16]	Plain washer
27	VOE997473	[16]	Hexagon screw
28	VOE983505	[2]	O-ring
29	VOE14577793	[2]	Plug
30	VOE914515	[1]	Retaining ring

Performance:

Final Driving Installation Precautions:

Check the piping and flexible hose is correctly installed. Ensure correct direction of rotation of the motor is achieved. Check for leakage from all motor parts. Ensure the system is operating within the specified working temperature. Check the pressure is operating within specified range.

Diagnosis & Maintenance:

• If motor is running with an unusual sound, unscrew the plug from the case drain and check whether the oil level is present. add the oil level if required and ensure to bleed the trapped air from the circuit. also check the oil quality, if have impurities, need replace the oil and keep it clean. to keep the life of the Track Drive Motor.

• If you still experience abnormal operation of the motor, check the pressure throughout the work circuit to assess whether or not the motor is breakdown.
