Bimetallic Nitrided Conical Twin Screw Barrel For WPC PVC PE Industry

Bimetallic Nitrided Conical Twin Screw Barrel For WPC PVC PE Industry

1.Product Introduction

Conical twin-screw extruder is composed of barrel, screw ,gear transimission system,measurable feeding,vacuum system,heating,cooling and electronic control components.

It is mainly used in plasticizing,extruding and forming PVC pipe ,plate,sheet,film,profile,and granule,etc

2.Main Advantages

1– Low shearing rate, uneasy degradation,plasticization uniform and agglomeration.

2– Reliable quality ,wide application range and long servicing life.

3– Automatic temperature control, vacuum gas exhaustion, oil cooled screws.

4— forced feeding and self-cleaning mechanism.

3.Main Specification

4.Bimetallic Conical Screw Parameter

Basic Steel: 38CrMoAIA

Heat treatment hardness: HB260°~320°

Nitriding hardness:HV950°~1000°

Nitriding depth: 0.50~ 0.7mm

Nitriding brittleness:≤ grade 2

Roughness:Ra0.4

Screw straightness:0.015mm

Chrome plating hardness:≥950HV

Chrome thickness: 0.05～0.10mm

Bimetal depth: 1.0～2.0mm

Bimetal hardness:HRC56°~65°

5.Bimetallic Special Materials

hot processed steel: 1.2344,H13,W360,SKD61,

cold processed steel: 1.2379,K340,D2,DC53,SKD11,W110

HSS:1.3343,1.3243, SKH51,SKH55,

HIP Powder HSS:CPM9V,SK739,SK726,SK742,GH113

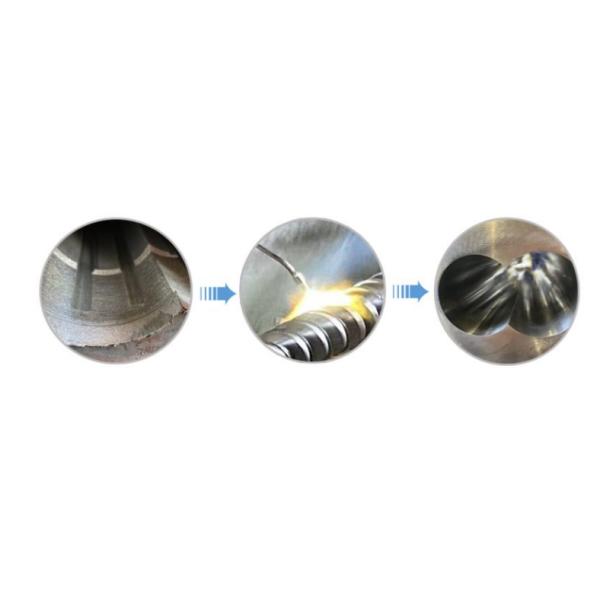

Screw flight top use Stellite plasma alloy welding, alloy types: cobalt base,nickel base, iron base alloy.

We use special alloy powders being sprayed and welded on the screw’s ridge,
and we use different alloy and welding methods for the screw of different functions.

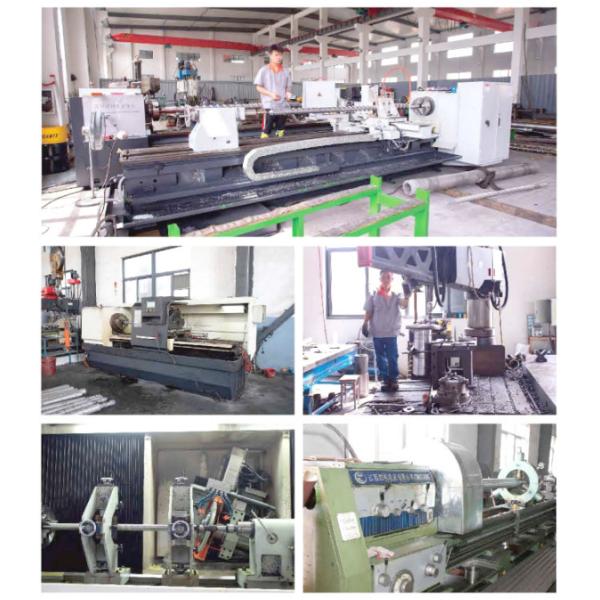

6.Production Show

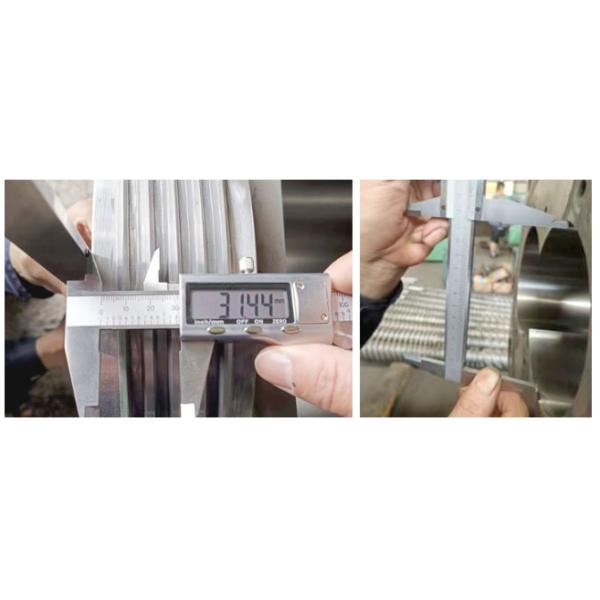

7.Quality Control

We always adhere to the principle of quality first and service first, and strictly control the quality of every product that leaves the factory to ensure the interests of customers to the greatest extent possibly.

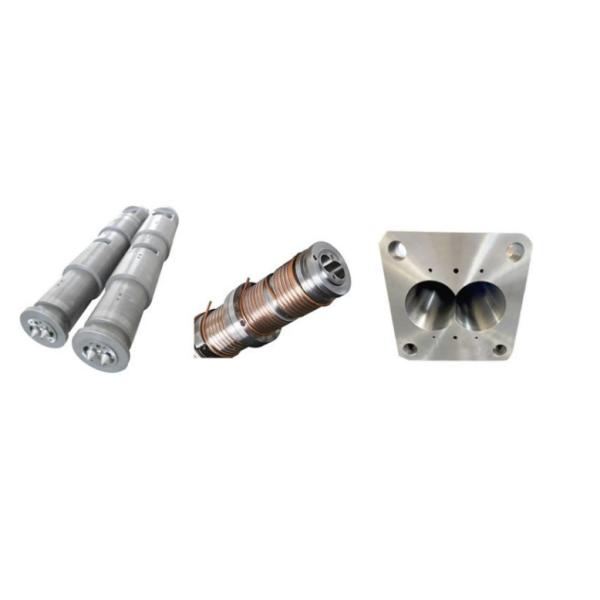

8 . Other Similar Products We Can Offer

Single screw extruders’ screws and cylinders: with diameter 15-940mm; Length-diameter ratio 1:8-1:60

Injection molding machines’ screws and cylinders: 15G-25000G series

Twin-screw extruders’screws and cylinders:diameter 25-200mm

Single screw categories: screen type, separated type, exhausting type, dowel type, double-end type, pelleting type, and chemical fiber screws.

Twin screw categories: ordinary type, cone type, hypercone type, and pelleting type.

9 . Export Experience
Our main business is foreign trade, and currently we have served over 30 customers in over 10 countries. With excellent products, strict quality control, and first-class service, we are having more and more high-quality customers now.
Choose Bloom, Choose A Qualified Supplier!
Welcome for Inquiry at Any Time.

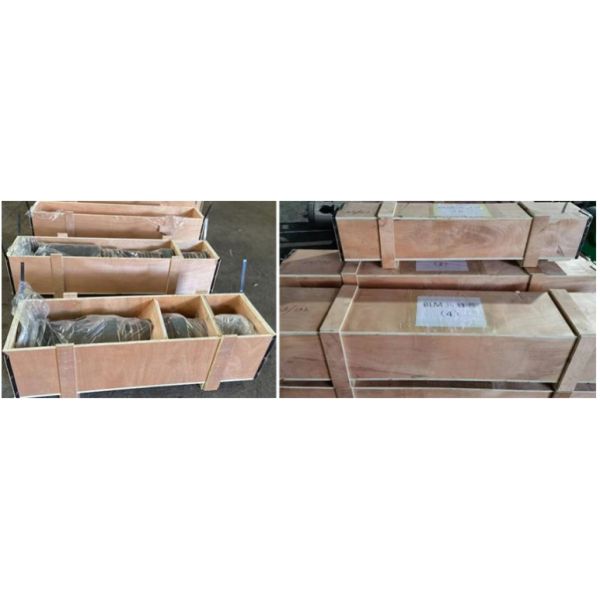

Our Export Packing pictures:

Bloom(Suzhou) Materials Co., Ltd ，which located in the beautiful city of Zhangjiagang , Suzhou,China.
Bloom Company is a technology research and development enterprises which integrats technology research and development, production and trade.It mainly dealing two types of products based on the alloy materials. Spot welding accessories and twin extruder spare parts.

With independent research and development team, Bloom focuses on technological innovation. It has provided super wear resistance, corrosion resistance, high temperature resistant core parts for many twin screw extruder users both at home and abroad and blending modification of enterprises. With continuous pursuit of technological innovation, we committed to providing customers with high quality products and services. In the global market, Our products are widely used in all fields such as plastics, miners, energy, aviation and etc. High-quality products can be developed according to customer needs combined with the actual working conditions. Whether it is high temperature, high corrosion conditions, or high torque, high strength mechanical needs, Bloom’s products can perform the task excellently. It can achieve excellent performance, stable quality, reasonable price, timely delivery, perfect after-sales.
We will advance with the times with the management idea of cooperation, win-win, integrity and open, to provide customers better products and more efficient service. Share a brilliant tomorrow with you!

Products Scope of Bloom Alloy

Nickel and iron base  Alloy(KCF alloy, Nickel alloy)

Spot Welding Accessories(Electrodes, Cap tips , Guide Pins and so on)
Twin Screw Extruder Spare Parts
Parallel Twin Screw Extruder Parts
Conical Screw Extruder Parts

Other Precision Alloy Materials and Parts

Service  of Bloom

Alloy Material  Self Production

Non-Standard Product Reseach and Test

Precision Machinning

Spot Welding Parts offering

Twin Screw Extruder Spare Parts Supply

Logistics Service

After sales service

Advantages of Bloom

Experienced Engineers in Alloy Businss
More then 20 years experience in alloy materials offering

High Quality Control System

Authorized Certificates

Guaranteed Delivery and Quality

More then 20+Countries customers trust.

Bloom is engaged in offering special and high quality performance alloy and parts to the whole world, Choose Bloom, Choose a sucessful business partener!
