| Categories | Underground Dump Truck |
|---|---|
| Brand Name: | Beijun |
| Model Number: | UQ-35 |
| Certification: | CE,ISO |
| Place of Origin: | China |
| MOQ: | 1 |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 Set/Sets per Month |
| Delivery Time: | 7 days |
| Packaging Details: | Customized packaging |
| Engine Model: | YC6L340-33 |
| Engine Power: | 243kW |
| Transmission Model: | 10JS220 |
| Drive Mode: | 6x4 |
| Size of the Bucket:Length×width×height: | 5400x2500x1350mm |
| Total Dimension: | 8650x2500x2852mm |
| tire model: | 12.00R20 |
| Loading Capacity: | 35 Tons |
| Dumper lift type: | Front cylinder |

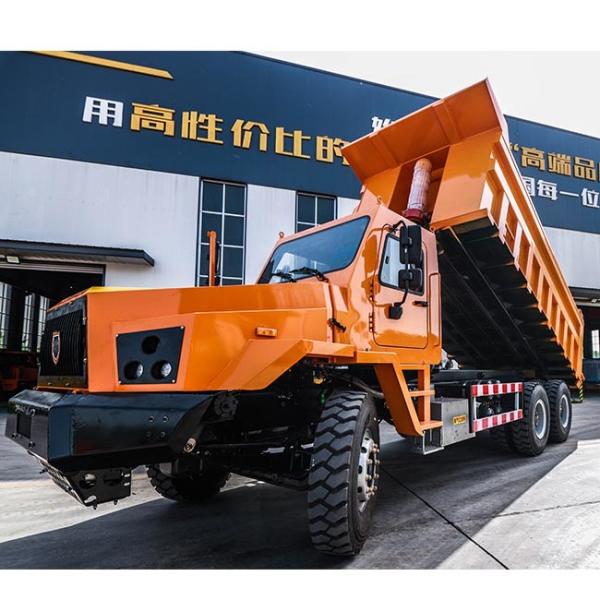

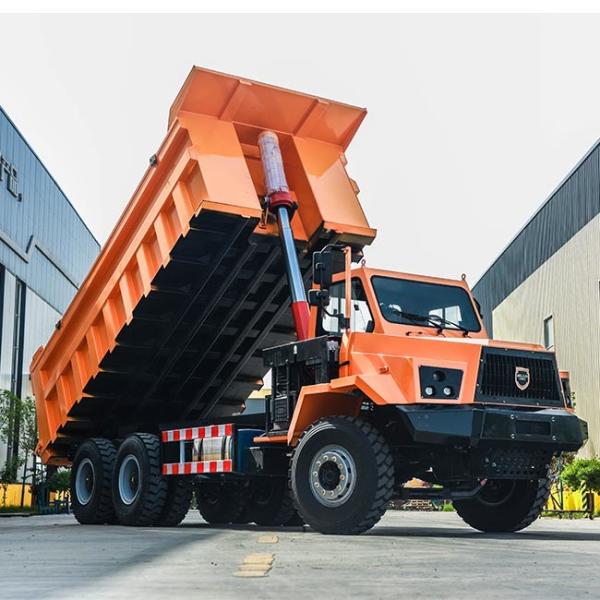

Product Features of 35 Tons Underground Mining 6*4 Dump Truck
The Beijun underground tunnel dump truck is designed to be highly maneuverable in narrow spaces, thanks to its specialized cab, suspension frame, vehicle frame, cargo compartment, and lifting mechanism. Its compact structure and small turning radius make it well-suited for use in underground mining operations. Additionally, the truck has been designed with safety in mind, with improved lighting, anti-slip tires, and moisture-proof components that make it able to handle the humid air, insufficient light, and slippery road surfaces found in underground environments.
The truck is also designed for strong performance, with powerful torque, excellent grade, and starting capabilities. Its bearing capacity is 50% higher than that of an ordinary road vehicle, making it capable of handling heavy loads and steep inclines. Overall, the Beijun underground tunnel dump truck is a well-engineered vehicle that is capable of meeting the unique demands of underground mining operations.
Product parameters of 35 Tons Underground Mining 6*4 Dump Truck
| Specification of UQ-35 35 tons Undergroud Dump Truck | |||
| Item | parameter | Item | parameter |
| Dimensions (length x width x height) (mm) | 8650x2500x2852 | Minimum turning radius (outside) (mm) | 12000 |
| (The minimum optional height is 2721) | |||
| Curb weight (kg) | 16500 | Approach angle (°) | 25 |
| Car volume (m 3 ) | 16 | Gradeability (heavy load) (°) | 14 |
| Rated load (kg) | 35000 | Maximum lifting angle of carriage (°) | 46 |
| Maximum traction force (kN) | 250 | Car box lifting time (s) | 35 |
| Maximum height of the machine when unloading (mm) | 6000 | Carriage falling time (s) | 15 |
| Loading height (mm) | 2800 | Maximum forward speed (Km/h) | 55 |
| Minimum ground clearance (mm) | 300 | The maximum speed of retreating (Km/h) | 12.5 |
| Diesel engine brand | Yuchai Engine | Large frame type | 300x80x(8+8+8) cold riveted frame |
| Diesel model | YC6L340-33 | Cabin | Closed Cabin |
| Diesel engine power | 243kW | Air Conditioning System | Heating and cooling air conditioner |
| Engine braking | Exhaust brake | Meter type | LCD Gauge |
| Air filter purification | Dry three-stage filtration | radio | With USB audio interface |
| Exhaust purification | Water tank purification | Cab dome light | Built-in switch (24V) |
| Gearbox brand | Shaanxi Fast | Number of headlights | 6 |
| Transmission model | 10JSD220 | Front light function | Far and near light switch |
| Transmission type | 10 speed gearbox | taillight | Driving lights, turn signals |
| Drive axle brand | Hand Axle | Reversing lights, brake lights | |
| Drive axle model | Hand Axle 20T | Wiper | Double wiper with high and low speed |
| Drive axle type | Dual rear axle cut-off brakes | Parking brake type | Electronic parking |
| Front axle leaf spring | 90x16 (11 pieces) | Rear axle differential lock | Standard (users activate by themselves) |
| Rear axle leaf spring | 90x30 (12 pieces) | Dumper type | U-carriage |
| tire brand | Chaoyang Tire | Carriage size (mm) | 5400x2500x1350 |
| tire model | 12.00R20 | Dumper lift type | Front cylinder |
|
