200M Deep Water Well Drilling Machines

Categories Waterwell Drilling Rig
Brand Name: Beijun
Model Number: XYC-200
Certification: CE,ISO,TUV
Place of Origin: China
MOQ: 1
Supply Ability: 1000 Set/Sets per Month
Delivery Time: 14-30 days
Packaging Details: Customized packaging
Drilling depth(m): 30-200
Drilling diameter(mm): 300-75
Drilling angel(mm): 90-75
Spindle rotating speed(r/min): 64/128/287/557
Spindle stroke(mm): 450
Main hoisting line capacity (m): 35
Hoisting speed(r/s): 17/35/75/151
Wireline diameter(mm): 12.5
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

200M Deep Water Well Drilling Machines

XYC-200 vehicle-mounted hydraulic water well drilling rig is a versatile and efficient tool designed to perform a variety of drilling tasks, including water well drilling, exploration drilling, and geotechnical drilling. Its compact design, high-performance mud pump, shifting device, and hydraulic folding mast make it easy to use and transport on different job sites. The rig can be used for a variety of applications, including exploring soil and rock conditions for construction projects, drilling holes in concrete structures, installing monitoring wells on river embankments, grouting subgrade and other underground structures, drilling and injecting grout directly into formations, drilling water wells for domestic or commercial use, and drilling boreholes for geothermal heating and cooling systems. Overall, the XYC-200 vehicle-mounted hydraulic water well drilling rig is a valuable asset for any drilling operation that requires versatility, efficiency, and ease of use.


Parameters of XYC-200 vehicle-mounted hydraulic water well drilling rig
Drilling depth(m)30-200
Drilling diameter(mm)300-75
Drilling angel(mm)90-75
Spindle rotating speed(r/min)64/128/287/557
Spindle stroke(mm)450
Main hoisting capacity (single line)(Kg)1600
Main hoisting line capacity (m)35
Hoisting speed(r/s)17/35/75/151
Wireline diameter(mm)12.5
Mast height(mm)7000
Mast effective height(mm)6500
Kelly/active pipe(mm)59*53
Drill rod(mm)42/50/60
Drill rig weight(kg)1150
Power unitModelZS1115 diesel engine
Rated power14.7kw/2200rpm
BW-160 mud pumpRated flow(l/min)160
Rated pressure(mpa)1.3
Driving power(kw)5.15
Main machine weight (kg)190
Dimension(mm)1110*725*965

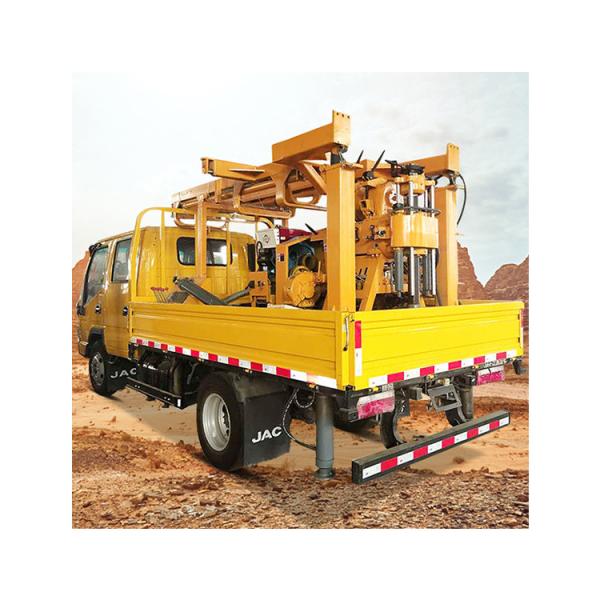

Chassislight truck(Pictures of vehicle-mounted drilling rigs for reference only)
