| Categories | Inconel Alloy |
|---|---|
| Brand Name: | KAIXIN |
| Model Number: | KX-Alloy725 |
| Certification: | ISO9001:2015 |
| Place of Origin: | China |
| MOQ: | 200KG |
| Price: | To negotiate |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 50~80 TONS per MONTH |
| Delivery Time: | 45~60days |
| Packaging Details: | Wooden Box, size as per guests' request |
| Shape: | Wire,Strip,Rod,Pipe,Plate |
| Alloy Type: | Nickel-chrome-molybdenum-niobium Alloy |
| Raw Materials: | Ni:55-59%，CR:19-22.5%，Mo:7-9.5% |
| Executive standard: | ASTM |
| Delivery State: | Sosoloid |
| Application: | Used for pipe fittings, joints and bearings in acid resistant equipment. It is also widely used in Marine equipment. |
| Features: | Corrosion resistance |
| Size: | Negotiable |
| Company Info. |
| Danyang Kaixin Alloy Material Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

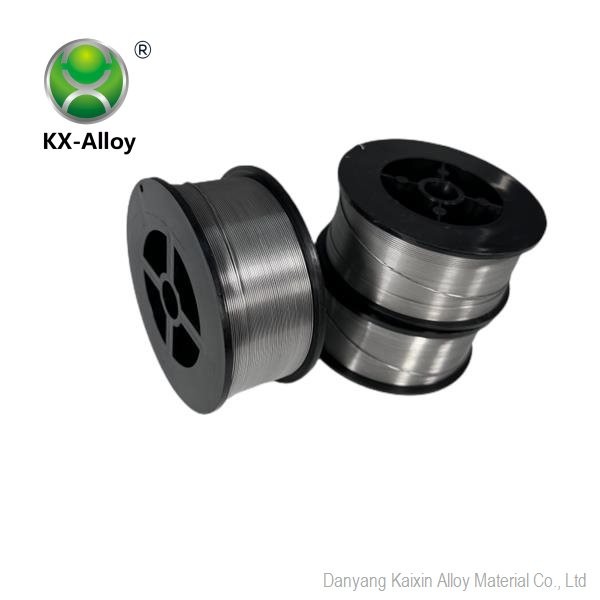

KX Inconel 725 Nickel Alloy Wire Round Bar Tube Steel Sheet Light
Rod on Inconel Alloy
Product Description and Application
Inconel 725 is Nickel-chrome-molybdenum-niobium alloy with high
corrosion resistance and age hardening to extremely high strength.
It has the same corrosion resistance as Inconel 625, which is
widely used in more severe corrosive environments. The strength of
age hardened Inconel 725 is twice that of annealed Inconel 625. The
performance of Inconel 725 is suitable for applications requiring
excellent corrosion resistance and high strength. The alloy can
also be used in high strength fasteners for offshore use.
Process Performance and Requirements
Vacuum Induction Furnace(VIM) and Electroslag Remelting
Furnace(ESR)
| Element | C | Si | Mn | P | S | Cr | Ni | Mo | Ti | Nb | Al | More |
| Min | - | - | - | - | - | 19 | 55 | 7 | 1 | 2.75 | - | Fe Rem |
| Max | 0.03 | 0.2 | 0.35 | 0.015 | 0.01 | 22.5 | 59 | 9.5 | 1.7 | 4 | 0.35 |
| Density | 8.31g/cm3 |
| Melting Range | 1271-1343℃ |
| Condition | Heat Treatment or State | Tensile strength MPa | Yield point MPa | Elongation after Breaking % | Hardness HBW |
| Spar | Anneal | 855 | 427 | 57 | Rc |
| Spar | Age hardening | 1241 | 917 | 30 | 36 |
| Spar | Age hardening | 1241 | 903 | 31 | 36 |
| Pipe | Anneal | 783 | 334 | 60 | --- |
| Age hardening | 1268 | 921 | 27 | 39 |
Professional Customization
| Cold-drawn Wire | ¢0.3~¢18mm(Delivery in rolls or trays) |
| Hot-Rolling Wire | ¢5.5~¢20mm(Delivery in rolls) |
| Strip | thickness 0.1~4.5*width 6~350mm(Supply in rolls or straight strips) |
| Smooth Forged Rod on a Lathe | ¢60~350mm,L800-2500mm |
| Hot-rolled Burnishing | ¢20~80mm,L1000-5000mm |
| Cold Drawn and Burnishing | ¢2.5~18mm,L1000-8000mm |
| Seamless Tube | ¢1~275mm,wall thickness 0.2~30,L1000-8000mm |
|
