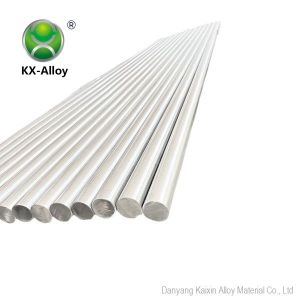

ASTM Monel Alloy K 500 Sheet / Welding Wire / Strip / Round Bar / Rod

Categories Monel Alloy
Brand Name: KAIXIN
Model Number: KX-Alloy MO500
Certification: ISO9001:2015
Place of Origin: China
MOQ: 200KG
Price: To negotiate
Payment Terms: T/T, L/C
Supply Ability: 50~80 TONS per MONTH
Delivery Time: 45~60days
Packaging Details: Wooden Box, size as per guests' request
Shape: Wire,Strip,Rod,Tube,Plate
Alloy Type: Nickel-cu-al Alloy
Raw Materials: NI63%,CU27-33%,AL2.3-3.15%
Executive Standard: ASTM
Delivery status: Sosoloid
Application: Applications for Aero engine, shipbuilding, papermaking equipment parts
Features: Corrosion resistance, wear resistance and heat resistance
Size: Negotiable
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

ASTM Monel Alloy K 500 Sheet / Welding Wire / Strip / Round Bar / Rod

KX Monel K-500 Sheet Welding Wire Strip Round Bar Light Rod Process Performance On Monel Alloy


Product Description and Application

Monel K-500 is also known as UNS N05500

Monel K-500 alloy has comparable corrosion resistance to Monel 400, but has higher mechanical strength and hardness. It has good heat resistance and long-term structure stability. It is mainly used in the manufacture of turbine blades and gas turbine blades with operating temperature below 750℃ on aeroengines. It is also used for making fasteners and springs on ships, Pump and valve parts on chemical equipment, pulp blade on paper making equipment and etc.


Process Performance and Requirements


  • Product Fusion Process

Vacuum Induction Furnace(VIM) and Electroslag Remelting Furnace(ESR)


  • Product Chemical Composition

Alloy%NiCuAlTiFeMnSCSi

Monel

K-500

Min6327.02.300.35
Max33.03.150.852.01.50.010.250.5

  • Product Physical Property

Density8.44g/cm³
Melting Point1315-1350℃

  • Product Mechanical Property

Alloy and State

Tensile Strength

Rm N/mm2

Yield Strength

RP0.2N/mm2

Elongation

A5 %


Monel K500


110079020

  • Productive Process


  • Professional Customization

Cold-drawn Wire¢0.3~¢18mm(Delivery in rolls or trays)
Hot-Rolling Wire¢5.5~¢20mm(Delivery in rolls)
Stripthickness 0.1~4.5*width 6~350mm(Supply in rolls or straight strips)
Smooth Forged Rod on a Lathe

¢60~350mm,L800-2500mm


Hot-rolled Burnishing¢20~80mm,L1000-5000mm
Cold Drawn and Burnishing¢2.5~18mm,L1000-8000mm
Seamless Tube¢1~275mm,wall thickness 0.2~30,L1000-8000mm
