| Categories | Expansion Alloy |
|---|---|
| Brand Name: | KAIXIN |
| Model Number: | KX-Alloy42 |
| Certification: | ISO9001:2015 |
| Place of Origin: | China |
| MOQ: | 200KG |
| Price: | To negotiate |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 50~80TONS per MONTH |
| Delivery Time: | 45~60days |
| Packaging Details: | Wooden Box, size as per guests's request |
| Shape: | Wire,Strip,Rod,Tube,Plate |
| Alloy Type: | Fe-Ni constant Expansion Alloy |
| Raw Materials: | NI41.0-42.5%，Fe Rem |
| Executive standard: | ASTM |
| Delivery State: | Sosoloid |
| Application: | Tools for aerospace composites, thermostatic rods, semiconductor lead frames, thermostatic bimetallic strips, glass seals for microelectronic components, vacuum devices and light bulbs. |
| Features: | There is a constant expansion coefficient in the range of 20~300°C |
| Size: | Negotiable |
| Company Info. |
| Danyang Kaixin Alloy Material Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
KX 42HA(Russian) Corrosion Resistant Alloy Light Rod On Expansion Alloy
Product Description and Application
42HA(Russian) Fe-Ni constant expansion alloy is a series of
constant expansion alloys which can be matched with soft glass and
ceramic with different expansion coefficient in a given temperature
range by adjusting the nickel content. The expansion coefficient
and Curie point of 42HA(Russian) Fe-Ni constant expansion alloy would increase with the nickel
content increase . The alloy is a widely used sealing structure
material in the electric vacuum industry, which is used to match
the sealing with soft glass and ceramic on the production of
electrical components, matching and sealing with corresponding soft
glass in electric vacuum industry.
Process Performance and Requirements
Vacuum Induction Furnace(VIM) and Electroslag Remelting
Furnace(ESR)
| Alloy Grade | C | P | S | Mn | Si | Al | Co | Ni | Fe |
| 42HA(Russian) | ≤0.05 | ≤0.02 | ≤0.02 | ≤0.8 | ≤0.3 | ≤0.1 | ≤1 | 41.0～42.5 | Rem |
| Density | 8.1g/cm3 |
| Melting Point | 1430℃ |
| State Code | State | Tensile strength/MPa |
| R | Soft | <590 |
| I | Hard | >820 |
| State Code | State | Tensile Strength/MPa |
| R | Soft | <570 |
| I | Hard | >700 |
| Alloy Grade | Sample Heat Treatment Institution | Average Coefficient of Linear Expansion α(10-6/ K) | ||
| 20～ 300 oC | 20～ 400 oC | 20～ 450 oC | ||
| 42HA(Russian) | It is heated to 900±20 oC in hydrogen atmosphere, insulated lh, and cooled to less than 200 oC at a speed of no more than 5 oC/ min | 4.0～ 5.0 | ------ | 6.5～7.5 |
| Alloy Grade | Average Coefficient of Linear Expansion α(10-6/ K) | ||||||
| 20～100℃ | 20～200℃ | 20～300℃ | 20～400℃ | 20～450℃ | 20～500℃ | 20～600℃ | |
| Alloy 42 | 5.6 | 4.9 | 4.8 | 5.9 | 6.9 | 7.8 | 9.2 |
Professional Customization

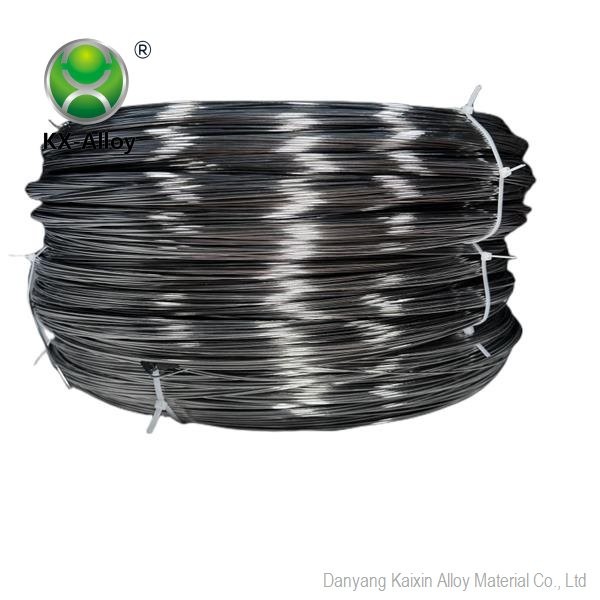

| Cold-drawn Wire | ¢0.3~¢18mm(Delivery in rolls or trays) |
| Hot-Rolling Wire | ¢5.5~¢20mm(Delivery in rolls) |
| Strip | thickness 0.1~4.5*width 6~350mm(Supply in rolls or straight strips) |
| Smooth Forged Rod on a Lathe | ¢60~350mm,L800-2500mm |
| Hot-rolled Burnishing | ¢20~80mm,L1000-5000mm |
| Cold Drawn and Burnishing | ¢2.5~18mm,L1000-8000mm |
| Seamless Tube | ¢1~275mm,wall thickness 0.2~30,L1000-8000mm |
|
