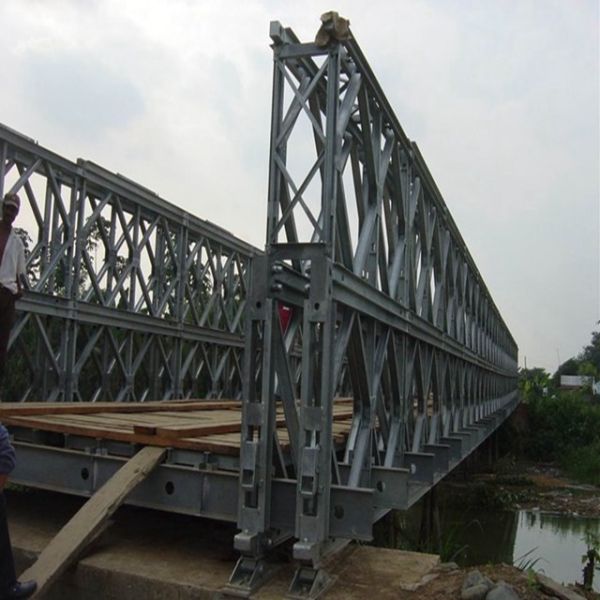

Prefabricated Galvanized Steel Truss Bridge For 50t Tracked Load

50t Prefabricated Bridge Galvanized Steel Bridge for Tracked Load

50t Prefabricated Bridge Galvanized Steel Bridge for Tracked Load(also is named compact panel bridge or PSB) are manufactured by China Harzone Industry Corp., Ltd. 60ft bridge are Single-single construction, and the 90ft bridge are Double-Single Reinforced 2 (DSR2) construction according to the request made by the owner. We provide the all the components except the launching tools.

Panel of 50t Prefabricated Bridge Galvanized Steel Bridge for Tracked Load

The panels of 50t Prefabricated Bridge Galvanized Steel Bridge for Tracked Load are monolithic unit welded in the factory and assembled by panel pin on the construction site, and the main structures are assembled according with the request of span and loading. The hole to hole distance of panel is 3048mm, and the height is 1448mm. the material of up and down chord is 10# slot steel and the middle is 8# slot steel.

End system of 50t Prefabricated Bridge Galvanized Steel Bridge for Tracked Load

The bridge end of 50t Prefabricated Bridge Galvanized Steel Bridge for Tracked Load is composed of post end male, post end female, tie beam, bearing and bearing plate.

Launching equipment and tools of 50t Prefabricated Bridge Galvanized Steel Bridge for Tracked Load

The launching equipment and tools of 50t Prefabricated Bridge Galvanized Steel Bridge for Tracked Load are made up of nose, roller, rock roller, joint, bolt and various spanners. The max loading of roller is 25t and the rock roller id 6t. The nose is netlike structure assembled by bridge components (not offered in this project).

The mechanical properties of Q345B

This is China Harzone Industry Corp.,Ltd., our company was founded in 1967,and we are a member of China State Shipbuilding Corpration Limited(CSSC),which is the largest central state-owned shipbuilding and military enterprise in China. As the pioneer in the research and manufacturing of emergency and rescue equipment in China, Harzone is the first company from the emergency industry listed in the stock exchange.

China Harzone dedicates itself to the following fields:

Design and manufacturing of military bridges and emergency rescue equipment

Design,manufacturing and installation of various kinds of steel bridges and steel structures

Research and re-fitting of special-purpose vehicles and equipment

Engineering contracting

Import and Export trading business

China Harzone Industry Corp., Ltd. ,built in 1967, is the subsidiary of China State Shipbuilding Corporation Limited(CSSC) and one military enterprise whose conservation was given priority status in China.


Harzone Industry has the qualification of design, manufacturing and installing various steel products: emergency mechanized bridges; temporary and permanent steel bridges such as Pontoon Bridge, Bailey Bridge, Truss Bridge, Suspension Bridge, Girder Bridge and Cable Stayed Bridge; steel structures for industrial workshops, commercial buildings and habitation buildings; special equipment such as power transmission tower, television tower, radio tower, microwave tower, communication tower, and railway steel pole.


Harzone Industry has the first-grade steelwork manufacturing qualification; has the ISO9001-2000 quality system, the ISO14001-2004 Environmental Management System, and has GB/T28001-2001 Occupational Safety Management System Certification.


Harzone Industry owns two Production Bases, one Research & Design Department in Hubei province, and one subsidiary company in Beijing. Our products have been exported to over 40 countries in Asia, Africa and Latin America.
