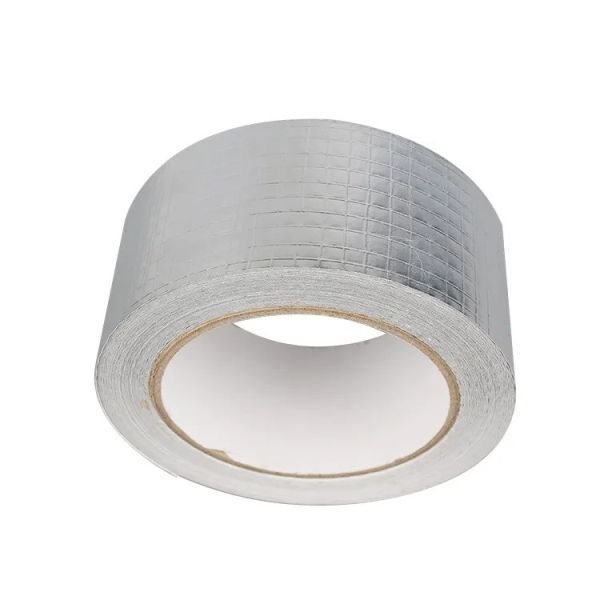

HVAC Reinforced Aluminum Foil Scrim Tape 2 Way FS Rubber Resin Adhesive

Categories Aluminum Foil Tape
Brand Name: OEM
Place of Origin: CHINA
MOQ: 2000 Rolls
Delivery Time: 15-25 days after receiving 30% deposit.
Packaging Details: Individually packing, shrink, carton, pallet
Material: Aluminum Foil 18u / 2-way Scrim: 5x5mm
Product name: 2-Way Aluminum Foil Scrim Tape
Adhesive: Synthetic Rubber-Resin Adhesive
Product Code: FS1805B
Backing Thickness: 43mic
Total Thickness: 83mic
Service Temperature: -20℃ ~ + 80℃
MOQ: 2000 Rolls
Feature: Waterproof, Thermal Insulation
Application: Duct board joints and seams
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

HVAC Reinforced Aluminum Foil Scrim Tape 2 Way FS Rubber Resin Adhesive

2-Way Reinforced Aluminum Foil Scrim Tape - FS1805B

Description:


FS1805B

2-way Foil-Scrim facing laminated fiberglass blanket backing(Foil: 18u / 2-way Scrim: 5x5mm), combined with a transparent high performance rubber-resin adhesive, protected by an easy-release silicone release paper.


Standard Products:

Product codeAluminum Foil Scrim Tape - FS1805B
MaterialAluminium Foil Scrim facing laminated fiberglass
GuleHigh Performance Synthetic Rubber-Resin Adhesive
Cut Roll48 / 50mm (2") / 60 / 63mm (2.5") / 72 / 75mm (3") / 96mm / 100mm (4")
Log Roll1200mm x 45M / 50M
Jumbo Roll1200mm x 500M / 750M
SampleFree, Freight on buyer

Typical Physical Properties:

PROPERTIESMETRICENGLISHTEST METHOD
Backing Thickness43 Micron1.7 MilPSTC-133 / ASTM D 3652
Total Thickness83 Micron3.3 MilPSTC-133 / ASTM D 3652
Adhesion to Steel20 N/25mm72 Oz./In.PSTC-101 / ASTM D 3330
Tack Rolling Ball20 cm6.0 In.PSTC-6 / ASTM D 3121
Tensile Strength100 N/25mm22.7 Lb/InPSTC-131 / ASTM D 3759
Elongation%.3.0PSTC-131 / ASTM D 3759
Service Temperature-20 ~ +80 °C-4 ~ +176 °F------------
Applying Temperature+10 ~ 40 °C+50 ~ +105 °F------------

Features:

• Reflection of both heat and light.

• Strong viscosity

Not easy to break

Quality Assurance

Applications:

HVAC industry for joining and sealing Foil-Scrim Facing laminated fiberglass blanket / duct board / pipe section joints and seams; joining and sealing flexible air duct seams and connections.

May also be used for other industrial uses requiring a tape with these characteristics and benefits.

Packaging & Shipping

Surface Preparation

It is essential, as with all pressure-sensitive tapes, that the surface to which the tape is applied must be clean, dry, free of grease, oil or other contaminants.


Product Use

It is essential that the user evaluate the KintTape product to determine whether it is fit for a particular purpose and user’s method of application. Good results will be obtained when applied to a clean, dry surface with a suitable pressure on KintTape products between +10℃ ~ 40℃(+50°F ~ +105°F).
