ADSS 12 Core Armid Yarns Outdoor Fiber Optic Cable

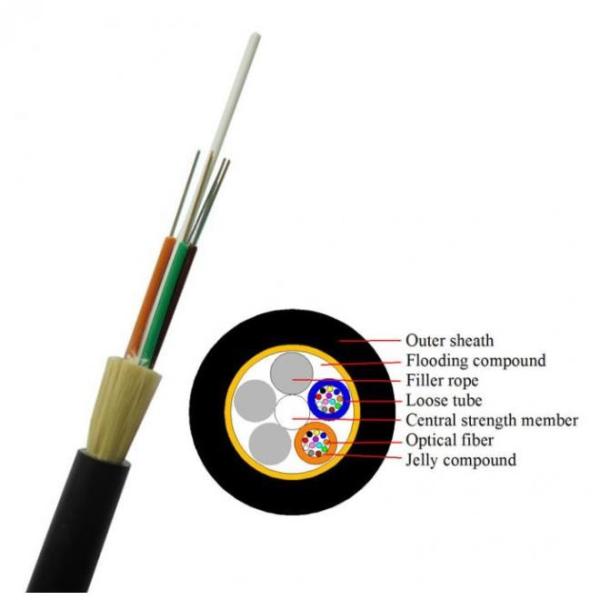

ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.

Double Jacket ADSS span 100m :

Single Jacket ADSS span 50m/100m :

Characteristics

1. Can be installed without shutting off the power

2. Excellent AT performance, The maximum inductive at the operating point of AT sheath can reach 25kV

3. Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops

4. Large span lengths and the largest span is over 1000m

5 Good performance of tensile strength and temperature

6.The design life span is 30 years

4:Standards All Dielectric Self-Supporting Fiber cable complies with Standard IEEE P 1222 as well as IEC 60794-1.

Packing details:
