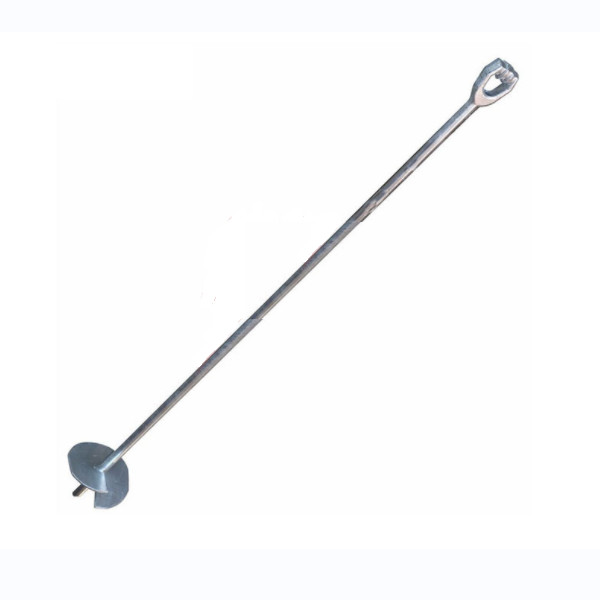

H.D.G. No Wrench Screw Anchor

The no wrench screw anchor is a type of earth anchor; it functions by basically guying cables or wires within utility poles, which is comprised of an angle-cut tip, welded helix and an anchor rod of forged-eye.

To ensure that the anchor is screwed on the ground, both the thimble eye and triple eye anchors have a rod with a wide opening to withhold the turning bar.

The best thing about this anchor is that it can be power-installed because of its eye that takes part in the adapter of the hole-boring machine.

When installed, the no wrench screw anchor reduces the holding capability by about 10-20%, while this failure is to stick with 5 degrees of installation alignment with the guying mass will reduce the strength. Also, these ratings are only valid for anchors that are installed correctly.

Features:

• The no wrench screw anchor is very suitable for manual or machine installation
• It is a triple guy eye
• No wrench anchor is an integral forged eye with a helix welded to the shaft
• The anchor is made up of hot-dip galvanized material
• It weighs 55lbs, 14 inches of height and width with depth up to 96 inches.
