| Categories | Travel Motor Assy |
|---|---|
| Brand Name: | Belparts |
| Model Number: | pc 240 pc60-6 pc71 |
| Place of Origin: | Made in China |
| MOQ: | 1 piece |
| Price: | Negotiable price |
| Payment Terms: | T/T, Paypal and Trade Assurance |
| Supply Ability: | 1000pcs |
| Delivery Time: | 1-7days |
| Packaging Details: | Wooden packing |
| Model Name: | pc 240 pc60-6 pc71 |
| Brand: | Belparts |
| Part name: | travel motor |
| Part Number: | 201-60-67200 |
| Appliion: | Crawler excavator |
| Payments: | T/T, PayPal, Trade Assurance |
| Packing: | 89*67*78 |
| Company Info. |
| GUANGZHOU BELPARTS ENGINEERING MACHINERY LIMITED |
| Verified Supplier |
| View Contact Details |
| Product List |

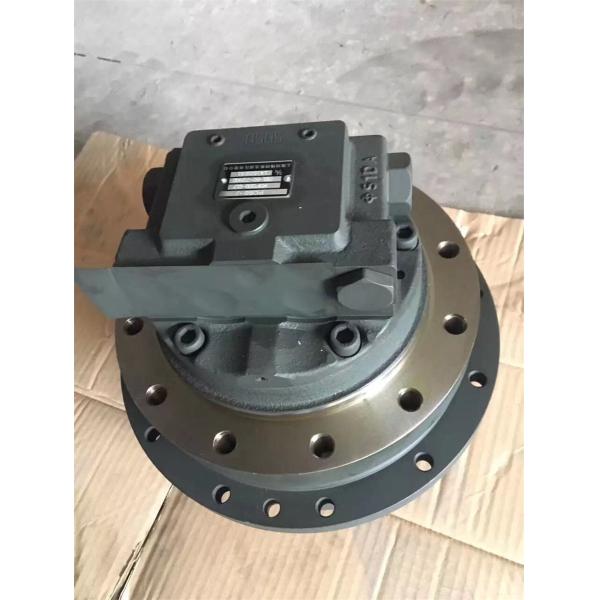

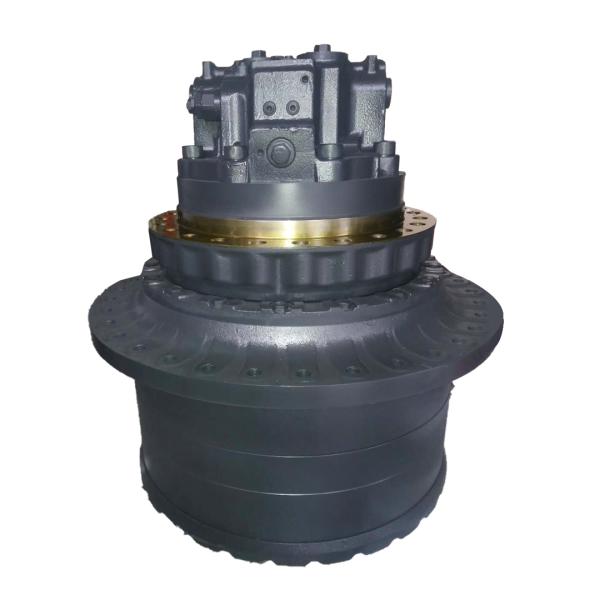

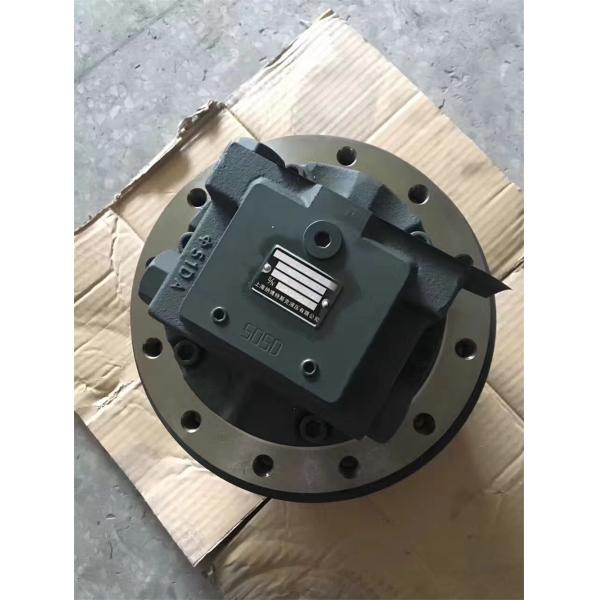

Belparts Excavator travel motor komatsu pc 240 pc60-6 pc71 final drive 201-60-67200
Appliion:Excavator machine
Part name:travelling motors assy
Model: pc 240 pc60-6 pc71
Package:56*54*67
Warranty:1 Year
Brand:Belparts
Delivery:2 days after the payment received
Shipment:by sea, by air, by express or as required
Appliion | Crawler Excavator |
Part name | final drive |
Part number | 201-60-67200 |
Model | pc 240 pc60-6 pc71 |
MOQ | 1PC |
Brand | Belparts |
Delivery | 2 days after the payment received |
Shipment | by sea, by air, by express, or as required |

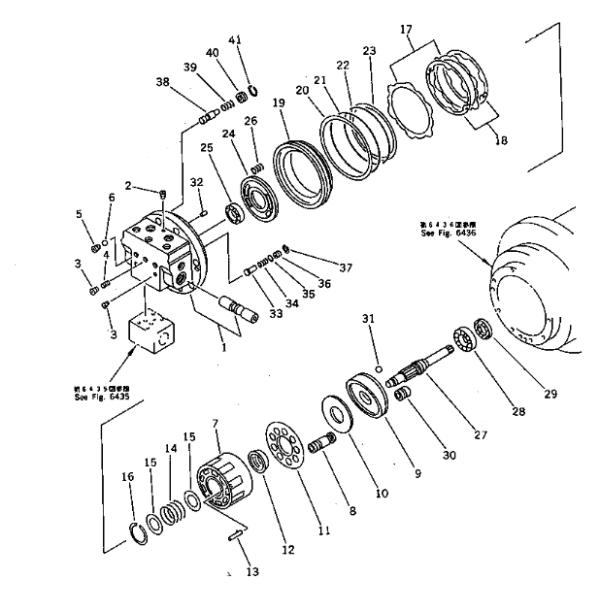

| # | Part No | Part Name | Qty. | Price request |
| 1 | (201-60-67200) | TRAVEL MOTOR ASS'Y,(SEE FIG.6437) | 2 | |
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.6425 TO 6427 | ||||
| 1 | TZ910B210100-A | FLANGE KIT,REAR | 1 | |
| 2 | TZMB700-060 | EXPANDER | 8 | |
| 3 | TZGM1-8 | Plug | 3 | |
| 4 | TZ121F2070-00 | Orifice | 1 | |
| 5 | TZGM1-4 | Plug | 2 | |
| 6 | 04260-00793 | BALL,STEEL | 2 | |
| 7 | TZ810B2004-00 | BLOCK,CYLINDER | 1 | |
| 8 | TZ810B2105-00 | PISTON KIT (9 PIECES) | 1 | |
| 9 | TZ910B200300-L | PLATE,SWASH | 1 | |
| 10 | TZ800B2032-00 | PLATE,THRUST | 1 | |
| 11 | TZ810B2007-00 | PLATE,RETAINER | 1 | |
| 12 | TZ810B2008-00 | THRUST BALL | 1 | |
| 13 | TZJB150625-238 | Roller | 3 | |
| 14 | TZ810B2014-00 | Spring | 1 | |
| 15 | TZ880A2010-00 | Washer | 2 | |
| 16 | TZIRTW-42 | RING,SNAP | 1 | |
| 17 | TZ800A2016-00 | Plate | 2 | |
| 18 | TZ800A2015-00 | FRICTION DISK | 2 | |
| 19 | TZ880A2012-00 | Piston | 1 | |
| 20 | TZSUN-2BG140 | RING,BACK-UP (KIT) | 1 | |
| 21 | 07000-12140 | SEAL, O-RING | 1 | |
| 22 | TZJW1516-G28-9 | O-RING (KIT) | 1 | |
| 23 | TZSUN-2WG28 | RING,BACK-UP (K1) | 1 | |
| 24 | TZ860A2009-01 | TIMING PLATE | 1 | |
| 25 | 06000-06203 | BEARING,BALL | 1 | |
| 26 | TZ880A2013-00 | Spring | 8 | |
| 27 | TZ910B2002-00 | Shaft | 1 | |
| 28 | TZ880A2029-00 | BEARING,BALL | 1 | |
| 29 | TZ15Z-22-42-10 | SEAL,OIL (KIT) | 1 | |
| 30 | TZ800B2070-01 | PISTON ASS'Y | 1 | |
| 31 | TZJB1501-22 | Ball | 2 | |
| 32 | TZJB1354-4-10 | Parallel pin | 2 | |
| 33 | TZ860A2019-00 | Valve | 1 | |
| 34 | TZ860A2020-01 | Spring | 1 | |
| 35 | 07000-11009 | O-RING,(FOR DUAL TILT DOZER) | 1 | |
| 36 | TZ860A2018-00 | SEAT,VALVE | 1 | |
| 37 | TZ100A2022-00 | RING,SNAP | 1 | |
| 38 | TZ200B2073-00 | Valve | 1 | |
| 39 | TZ300B2043-01 | Spring | 1 | |
| 40 | TZ300B2039-00 | Retainer | 1 | |
| 41 | TZ300B2042-00 | RING, SNAP | 1 |
Company Information

GZ Belparts Engineering Machinery Co., Ltd, founded in September
2013, is a foreign trade company, which is specialized in procuring
and selling excavator parts.
Our main products are excavator hydraulic pump, hydraulic parts,
travel motor and gearbox, swing motor, and gearbox. Our products
have been exported to more than 100 countries and regions.
Factory

Certifiion

Product Testing

Product Packing

Our Services

Why choose us:
1.24-hour online consultation and communiion
2.Large stock of a single product
3.Product quality is guaranteed.
Packaging Details:
1.According to orders,pack the spare parts one by one by oil paper;
2.Put them into small carton boxes one by one;
3.Put the packed small carton boxes into bigger carton boxes one by
one;
4.Put the bigger carton boxes into wooden boxes if necessary
especially for the shipments by sea.
5. Goods is packed by oil paper and plastic bags inside
6.Using wooden case package.
7.We support the custom-made demand for package
|
