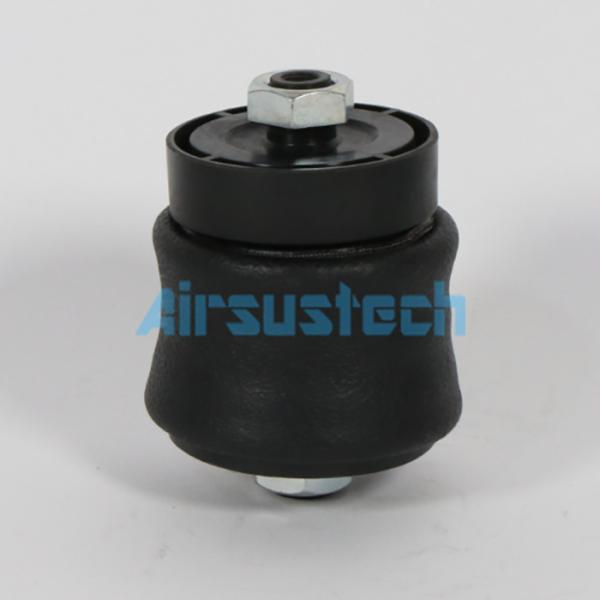

Firestone W02-358-3002 Industrial Air Springs Pneumatic Bellows Contitech SZ 37-10 P02 1/8 NPT X2 Sleeve

Firestone W02-358-3002 Pneumatic Bellows Contitech SZ 37-10 P02 1/8 NPT X2 Sleeve Industrial Air Springs

Cross reference

The detailed Specifications and techical data

The top plate and bottom plate blind nuts qty: 2pcs

Air inlet: 1/8NPT x2, Both Ends

Applications: Industrial machines or others

HS Code: 8708809000
INDUSTRIAL BELLOWS ACTUATOR
2M1A-0 ASSY
AIRSPRING
REVERSIBLE SLEEVE TYPE
5/8-11X1.00" PLASTIC STUDS WITH 1/8" NPT PORTS BOTH ENDS

Other model

Firestone style 2M1A

1/8 NPT, each end, brass studs

Firestone assembly number: W02-358-3004/ W02 358 3004 / W023583004 / WO2-358-3004 / WO2 358 3004 / WO23583004

Air spring can be used in motocycle

In order to alleviate and attenuate the impact and vibration of the motorcycle due to the unevenness of the road during driving, to ensure the smoothness and comfort of driving, and to improve the service life of the motorcycle and the stability of the operation, the motorcycle is equipped with a shock absorber. Vibrator device. The air spring is a very good shock absorbing element, which can slow down the vibration caused by the uneven road to the body and the rider and the occupant, reduce the inertial force on the body and the occupant, and restrain the elastic wheels caused by the uneven road. continuous beating, improving the grounding of the wheels.

Except from motocycle, air spring also can be used in industrial machinery. When it used, air springs are used to isolate shock and vibration in heavy machinery, such as presses and injection molding machines.

Advantages

1. Affordable
In most cases, the initial cost is approximately 50% lower than a traditional pneumatic or hydraulic cylinder of the same force. The larger the size, the greater the savings.

2. A wide range of
Pneumatic actuators are available in diameter sizes from 2.2 inches to 37 inches. Strength capacity is 100,000 lbs. Travel up to 14 inches.

3. Durability
Durable Air Springs

4. No internal rod, piston or sliding seals
Inside the actuator, there are no internal rods, pistons or sliding seals like many traditional cylinders, which is an advantage in applications where dirt or grit would corrode traditional cylinder seals.

5. Frictionless
As there are no sliding seals, the actuator has no separating friction.

6. Flexible
Actuators are suitable for various media, liquid or gas
