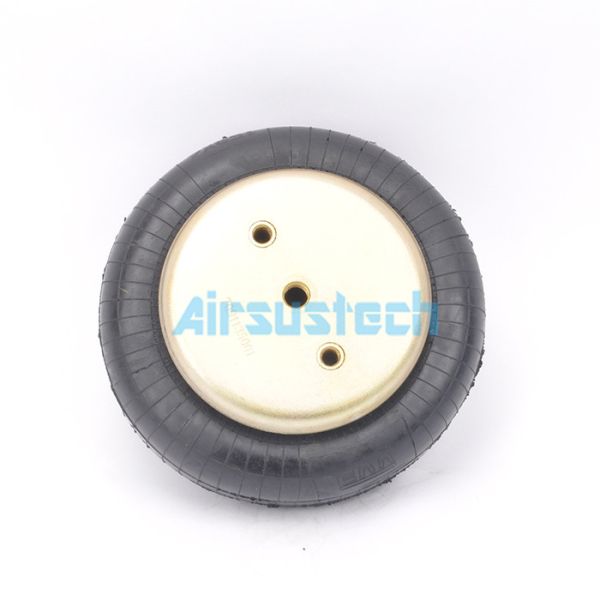

Single Convoluted Industrial Air Springs Contitech FS 120-12 CI 3/4 NPT CA Goodyear 1B8-562 1B8-564

Contitech FS 120-12 CI 3/4 NPT CA Goodyear 1B8-562 1B8-564 Single Convoluted Industrial Air Springs

Cross reference

The detailed Specifications and techical data

The top plate and bottom plate blind nuts qty: 2pcs

Air inlet: 3/4NPT

Convolutions: Single

Rubber bumper: Without

Girdle ring: 1 pieces

Type: Industrial air springs

Material: Rubber and Steel

Applications: Industrial machines or others

HS Code: 8708809000

Air spring components

1. Blind Nut (Threaded Hole)
A permanent part of the bead plate assembly providing an alternative mounting system to the Stud.
2. Air Fitting Hole
A tapped hole providing air entrance for the part.
3. Bead Plate (Top Plate/Bottom plate)
Permanently crimped onto the bellows, diaphragm during manufacture.
4. Bellows
The heart of the airspring. Includes at least four ply, or layers of material - an inner layer, two ply of cord reinforced fabric and an outer layer.
5. Bumper (Bump Stop)
A solid moulded rubber fail safe device used on many suspension applications. Prevents excessive damage to the vehicle and suspension in the case of sudden air pressure loss.
6. Girdle Hoop (Centre Ring)
A ring between the convolutions of the convoluted type air spring, helps provide stability in the part.

Applications

Rubber air springs are mainly used in the papermaking machinery industry for stroke adjustment and tension control in correctors, calenders, presses, scrapers, wires and other parts. In addition, they are also used in automobiles, trains, construction, and chemical industries. , mechanism, installation and military industry and other industries that require shock absorption, shock isolation and stroke control.

Characteristic

Compared with traditional linear springs, air springs have the characteristics of strong bearing capacity, good nonlinear characteristics, adjustable stiffness, excellent damping characteristics, adjustable natural frequency, good sound insulation performance, and light weight. The main performances are: adjustable height and internal air pressure It can be adjusted at any time, the ideal characteristic line can be designed according to the needs, the performance of absorbing high and low frequency vibration and noise reduction, the rigidity can be changed by the volume and effective area of the additional air chamber, the natural frequency is very low and basically unchanged, the main force of the air spring There is an orifice or pipeline between the air chamber and the additional air chamber, and the best damping coefficient can be achieved by changing the diameter of the orifice and the diameter and length of the pipeline.

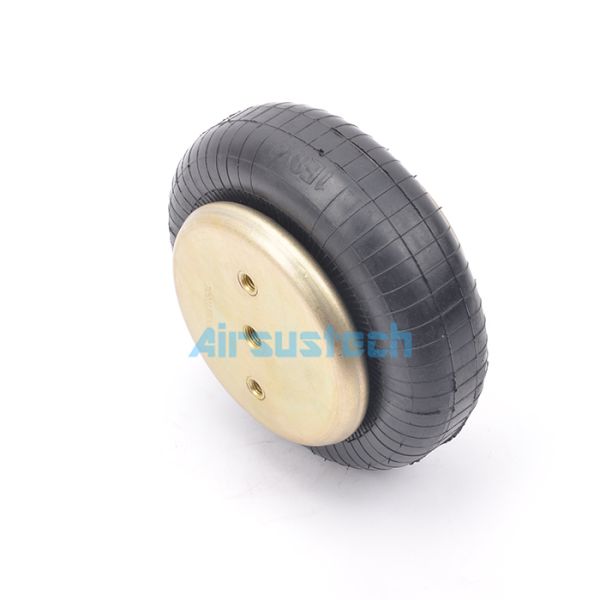

The reated picture
