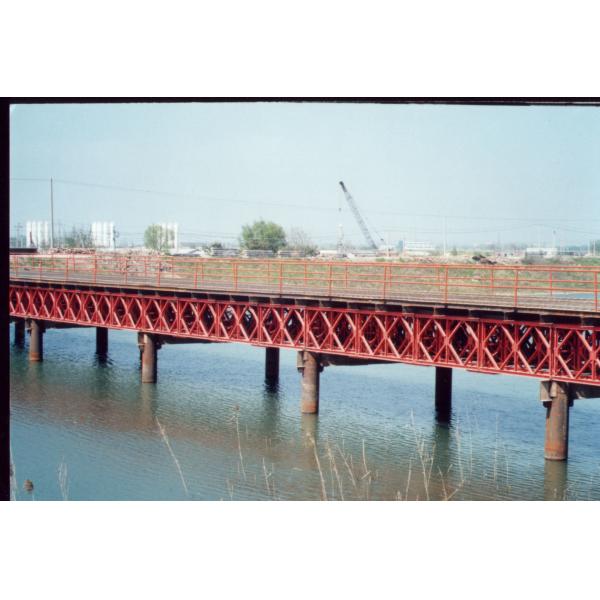

Cb250 Prefabricated Steel Bailey Suspension Bridge Length 25-87.6m

CB250 Steel Bridge Length 25-87.6m Bailey Suspension Bridge

CB250 Steel Bridge Length 25-87.6m Bailey Suspension Bridge(also is named compact panel bridge or PSB) are manufactured by China Harzone Industry Corp., Ltd. 60ft bridge are Single-single construction, and the 90ft bridge are Double-Single Reinforced 2 (DSR2) construction according to the request made by the owner. We provide the all the components except the launching tools.

Panel of CB250 Steel Bridge Length 25-87.6m Bailey Suspension Bridge

The panels of CB250 Steel Bridge Length 25-87.6m Bailey Suspension Bridge are monolithic unit welded in the factory and assembled by panel pin on the construction site, and the main structures are assembled according with the request of span and loading.

End system of CB250 Steel Bridge Length 25-87.6m Bailey Suspension Bridge

The bridge end of CB250 Steel Bridge Length 25-87.6m Bailey Suspension Bridge is composed of post end male, post end female, tie beam, bearing and bearing plate.

Launching equipment and tools of CB250 Steel Bridge Length 25-87.6m Bailey Suspension Bridge

The launching equipment and tools of CB250 Steel Bridge Length 25-87.6m Bailey Suspension Bridge are made up of nose, roller, rock roller, joint, bolt and various spanners. The max loading of roller is 25t and the rock roller id 6t. The nose is netlike structure assembled by bridge components (not offered in this project).

The mechanical properties of Q345B

Before offering the quotation, we need to know the exact usage condition so that we can propose a proper technical specification. Hereon, pls kindly supply the following information as detailed as possible:

1. Type of Bridge
2. Span, Centre to Centre of Bearing of Supports (Bridge Length)
3. Type of Deck
4. bridge Width
5. Sidewalk
6. Design Loading
7. Environmental Condition
8. Life service requirement ( for how many years the bridge is intended for use)
9. Regarding the form of anti-corrosion, is it paint (what is the color requirement?) or hot-dip galvanizing?
10. Quotation terms (FOB which port or other)
11. Better if there are site pictures can be provided.

Please feel free to contact with us if you have any questions.

China Harzone Industry Corp., Ltd. ,built in 1967, is the subsidiary of China State Shipbuilding Corporation Limited(CSSC) and one military enterprise whose conservation was given priority status in China.


Harzone Industry has the qualification of design, manufacturing and installing various steel products: emergency mechanized bridges; temporary and permanent steel bridges such as Pontoon Bridge, Bailey Bridge, Truss Bridge, Suspension Bridge, Girder Bridge and Cable Stayed Bridge; steel structures for industrial workshops, commercial buildings and habitation buildings; special equipment such as power transmission tower, television tower, radio tower, microwave tower, communication tower, and railway steel pole.


Harzone Industry has the first-grade steelwork manufacturing qualification; has the ISO9001-2000 quality system, the ISO14001-2004 Environmental Management System, and has GB/T28001-2001 Occupational Safety Management System Certification.


Harzone Industry owns two Production Bases, one Research & Design Department in Hubei province, and one subsidiary company in Beijing. Our products have been exported to over 40 countries in Asia, Africa and Latin America.
