4 6 8 12 Core Indoor fiber optic cable GJBFJV Breakout Tight Buffered Fiber Optic Cable

4 6 8 12 Core Indoor fiber optic cable GJBFJV Breakout Tight Buffered Fiber Optic Cable

4 6 8 12 Core Indoor fiber optic cable GJBFJV Breakout Tight Buffered Fiber Optic Cable
4 6 8 12 Core Indoor fiber optic cable GJBFJV Breakout Tight Buffered Fiber Optic Cable
Categories Fiber Optic Cable
Model Number: GJBFJV, GJBFJV
Place of Origin: China
Brand Name: OEM
Packaging Details: 2KM/Wood Spool
Supply Ability: 10000 Kilometer/Kilometers per Day
MOQ: 5000 meters
Price: $0.50/meters 5000-49999 meters
Certification: RoHS, CE
Payment Terms: T/T, Western Union
Type: Fiber Optic Cable
Use: FTTH
Warranty Time: 3
Network: 3G
Product name: GJBFJV Indoor Fiber Optic Cable
Jacket color: Yellow or customize
Structure: Tight buffer
Jacket Material: PVC or LSZH
central strength member: FRP
Fiber Count: 2-48 Core
Fiber Type: single mode
Application: FTTB/FTTH/FTTX Network
Operating temperature: -20℃-60℃
Contact Now
Company Info.
A Fiber Solution Technology Co., Ltd
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

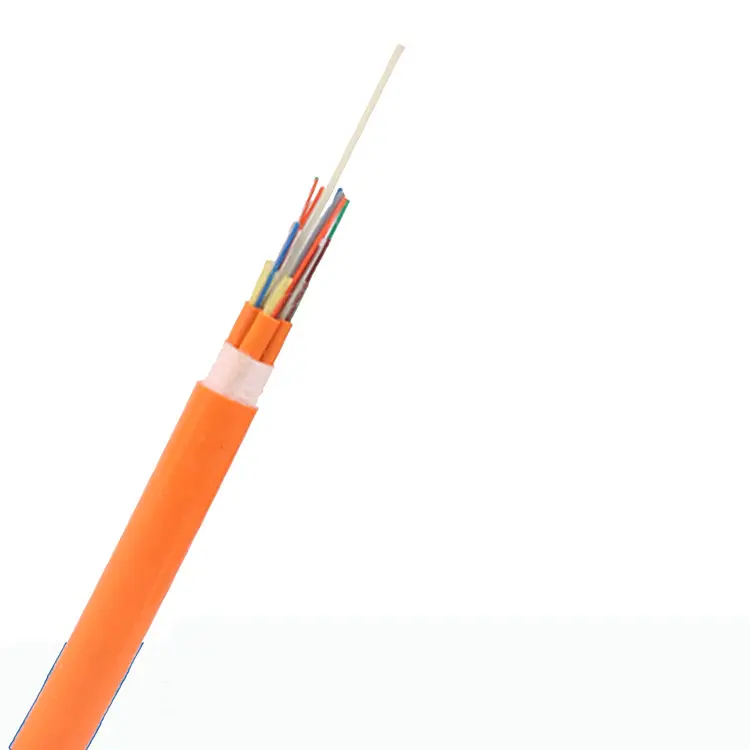

4 6 8 12 Core Indoor fiber optic cable GJBFJV Breakout Tight Buffered Fiber Optic Cable

Products Description

Indoor singlemode multicore Tight buffer Branch cable GJPFJV GJBFJV break out cable 4 8 12 24 core fiber optic cable

GJBFJV Break out Cable

GJBFJV Break out Cable contains several tight-buffered fibers , kevlar / aramid strength members to stiffen the cable and prevent kinking . Three cable fire ratings , Riser / Plenum / LSZH for your choice to meet differenst installation environments.

Applications:

1.Indoor horizontal wiring, building vertical wiring, LAN network. 2.The standard fiber core can be directly installed with connectors for connection with equipment. 3·Suitable for floor connection and easy maintenance

Each requirement:

1.Fiber count------- 2/4/6/8/12/16/24/48. 2.Characteristic of tight buffered-----OD: 0.87±0.05mm. 3.Aramid yarn for round strength. 4.Inner jacket-----OD: 2.0±0.05mm. 5.Central strength member: FRP. 6.Water barrier tape. 7.Out jacket: LSZH.

Fiber account


OD(mm)

Max.tensile Strength(N)

Min.Bending Radius(mm)
Short-term
Long-term
Dynamic
Static
2
7.5±0.5
660
200
20D
10D
4
7.5±0.5
660
200
20D
10D
6
9.0±0.5
700
200
20D
10D
8
10.5±0.5
800
250
20D
10D
10
11.5±0.5
1000
300
20D
10D
12
12.5±0.5
1200
400
20D
10D
16
13.0±0.5
1200
400
20D
10D
24
15.5±0.5
1200
400
20D
10D
48
20.5±0.5
1800
600
20D
10D

GJPFJV cable


GJPFJV cable is made by the tight buffer fiber wrapped with a layer of aramid yarn as strength member units,multi fibers as the sub unit twist with FRP into the circle ,and finally into fiber optic cable with PVC or LSZH sheath, with dry-type water-blocking materials between fiber and sheath.
Company Profile
We are a leading company in developing and manufacturing advanced fiber optic products,mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter.With years of experiences in the fiber optic industry, our factory is fully equipped over 5000 square meters and more than 30 non dust production lines .About 250 well-trained staff and engineers are contributing to our proud products. We have 5 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 15 production lines for standard jumper and 8 PLC Splitter production lines. The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on. All of our optical products are RoHS compliant and also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, Looking forward to cooperate with you.
FAQ
Q1. Do you provide OEM ODM service ? Yes, we can print your logo or label on the products or on the box.
Q2. How can you guarentee the quality ? Build on our perfect quality management system, all of our products were 100% tested before the shipment.
Q3. What is your delivery time ? Generally, sample: 3~5 working days. formal order: 7-10 working days.
Q4. What's the method of shipment? We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.
Q5. What's the Payment? We accept all payments , such as LC,TT,DP,DA,Paypal,Western Union,Money Gram.
Q6. Do you provide sample service? A: Yes, we provide free or low price samples for you to test and check quality. Mixed samples are acceptable.
