Steel Tape 4 Core Armoured Cable , Outdoor Underground Fiber Cable

Steel Tape 4 Core Armoured Cable , Outdoor Underground Fiber Cable

Steel Tape 4 Core Armoured Cable , Outdoor Underground Fiber Cable
Steel Tape 4 Core Armoured Cable , Outdoor Underground Fiber Cable
Categories Fiber Optic Cable
Model Number: GYXTW
Place of Origin: China
Brand Name: ODM/OEM
Certification: CE/ROHS/ISO9001
Packaging Details: 2-4 km/wooden drum
Supply Ability: 100 Kilometer/Kilometers per Week
MOQ: 2000 meters
Price: $0.10 - $0.40/meters
Payment Terms: T/T, Western Union
Type: Outdoor Fiber Optic Cable
Number of Conductors: 4
Fiber Type: G652D/G657A1/G657A2
Fiber count: 2-24 Cores
Strength Member: 0.8mm Steel Wire
Loose Tube: PBT
Water Blocking layer: PSP Water Blocking Tape
Armoring: Steel Strip
Outer Sheath: MDPE
Color: Black
Contact Now
Company Info.
A Fiber Solution Technology Co., Ltd
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

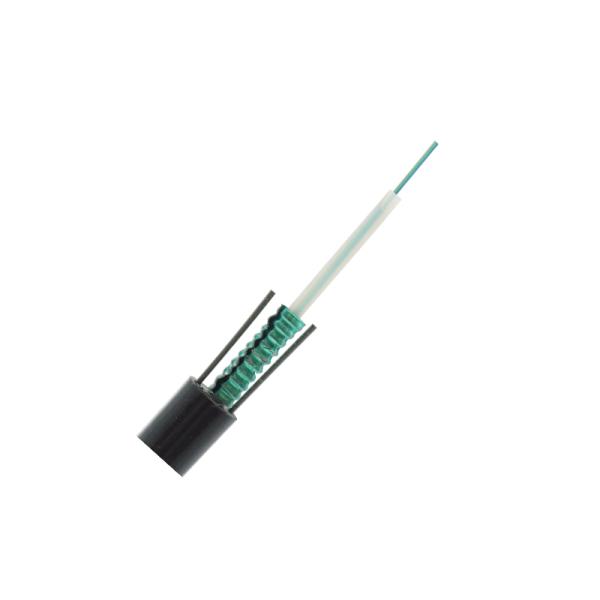

Steel Tape 4 Core Armoured Cable , Outdoor Underground Fiber Cable

Manufacturer outdoor steel tape 4 core armored cable underground fiber optic cable
Description
1.The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic.
2.The tubes are filled with a water-resistant filling compound.
3.The tube is wrapped with a layer of PSP longitudinally.
4.Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight.
5.Two parallel steel wires are placed at the two sides of the steel tape.
6.The cable is completed with a polyethylene (PE) sheath.
Feature
* Good mechanical and temperature performance
* High strength loose tube that is hydrolysis resistant
* Special tube filling compound ensure a critical protection of fiber
* Crush resistance and flexibility
* PSP enhancing moisture-proof
* Two parallel steel wires ensure tensile strength
* Small diameter, light weight and friendly installation
* Long delivery length
Technical data
No. of cable
2~8
10~12
14~24
Fiber Model
G.652D
Strength Member
Material
Steel Wire
Diameter(±0.05)mm
0.8
0.8
0.8
Loose Tube
Material
PBT
Diameter(±0.06)mm
2.1
2.4
2.8
Thickness(±0.03)mm
0.32
0.35
0.4
The Max.Core NO./Tube
8
12
24
Water Blocking layer(Material)
Water Blocking Tape
Armoring
Material
Steel Strip
Thickness(±0.03)mm
0.25
Outer Sheath
Material
MDPE
Thickness(±0.2)mm
2
Cable Diameter(±0.2)mm
7.9
8.1
8.5
Cable Weight(±5)kg/km
60
63
68
Min. bending radius
Without Tension
10.0×Cable -φ
Under Maximum Tension
20.0×Cable -φ
Temperature range(℃)
Installation
-20~+60
Transport&Storage
-40~+70
Operation
-40~+70
Application
Our Company
We are a hi-tech enterprise having a self-owned brand and specialize in the R&D, manufacture and sales of fiber optical communications equipment. The main products include all kinds of fiber optic cables, PLC splitters, and terminal boxes. Our products are widely used in telecommunications, broadband, broadcast, CATV and network industry.
We also promise all the features and advantages are the high technology, which are full of professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.
FAQ
Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available

Q3. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q4. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
B.Secondly We quote according to your requirements or our suggestions.
C.Thirdly customer confirms the samples and places deposit for formal order.
D.Fourthly We arrange the production.
