FTTH 3 Ports Fiber Optic Splitter Wdm 1310 1490 1550 Fwdm Steel Tube Type

FTTH 3 Ports Fiber Optic Splitter Wdm 1310 1490 1550 Fwdm Steel Tube Type

FTTH 3 Ports Fiber Optic Splitter Wdm 1310 1490 1550 Fwdm Steel Tube Type
FTTH 3 Ports Fiber Optic Splitter Wdm 1310 1490 1550 Fwdm Steel Tube Type
Categories Fiber Optic Splitter
Model Number: CWDM/DWDM
Place of Origin: China
Brand Name: ODM/OEM
Certification: RoHS, CE
Packaging Details: Plastic box
Carton box
Or as customers requirements
Supply Ability: 10000 Piece/Pieces per Day
Price: $15.20/pieces 1-999 pieces
Payment Terms: T/T, Western Union,
Type: WDM
Use: FTTH
Warranty Time: 3
Network: 4g, 3G
Product name: FWDM Steel Tube Type
Fiber Count: 3
Operating Wavelength Range: 1260~1620 nm
Fiber Type: G652D, G657A1, G657A2
Connector Type: SC, LC, FC, ST
Transport Package: One PC in One Box
Length: 1m, 2m, 3m
Application: FTTH FTTxFTTB Network
Single-Mode Fiber: single mode
Contact Now
Company Info.
A Fiber Solution Technology Co., Ltd
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

FTTH 3 Ports Fiber Optic Splitter Wdm 1310 1490 1550 Fwdm Steel Tube Type

Product Description
Hot Sale FTTH 3 Ports FTTH Wdm 1310 1490 1550 Fwdm Steel Tube Fwdm
The 1310/1550nm Filter Wavelength Division Multiplexer is based on environmentally stable thin-film filter technology. The devices combine or separate light at different wavelength in a wide wavelength range. They offer very low insertion loss, low polarization dependence, high isolation and excellent environmental stability. High power handling capability can be achieved through unique pigtail processing and high quality AR coating. These components have been extensively used in EDFAs, Raman amplifiers, WDM networks and fiber optical instruments.
Parameter
Unit
Values
Transmission Wavelength Range
nm
1530~1600 (or 1270~1350)
Reflect Wavelength Range
nm
1270~1350 (or 1530~1600)
Max. Insertion Loss
Transmission
dB
0.6
Reflect
dB
0.4
Min. Isolation
Transmission
dB
30
Reflect
dB
12
Max. PDL
dB
0.1
Min. Channel Flatness
dB
0.3
Min. Return Loss
dB
50
Max. Power Handling(CW)
W
0.3, 0.7, 1, 2, 3
Max. Tensile Load(N)
N
≤5
Fiber Type
-
SMF-28e
Operating Temperature
℃
-5 to +70
Storage Temperature
℃
-40 to +85
Package Dimensions
mm
Ø5.5 x L35
Company Profile

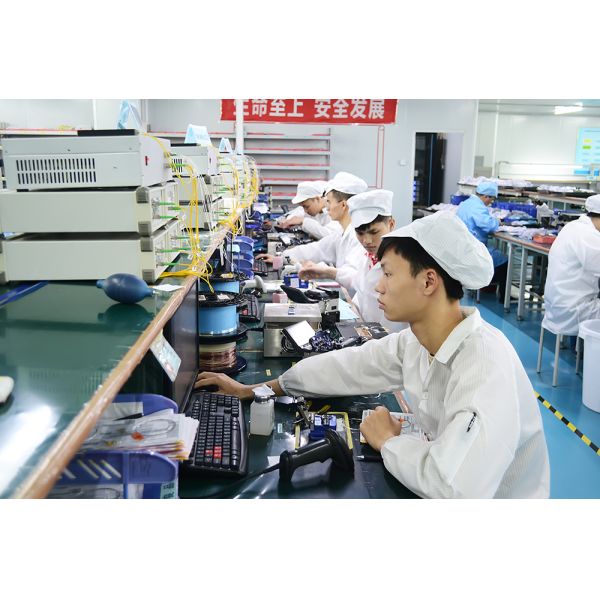

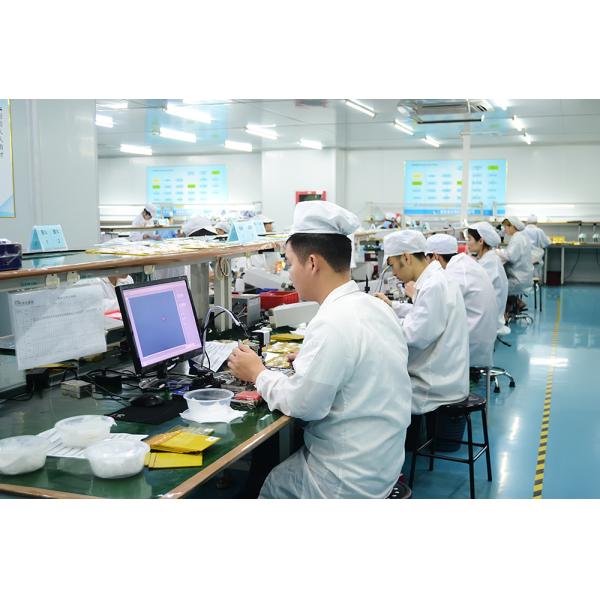

We are a leading company in developing and manufacturing advanced fiber optic products,mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter. With years of experiences in the fiber optic industry, our factory is fully equipped over 5000 square meters and more than 30 non dust production lines .About 250 well-trained staff and engineers are contributing to our proud products. We have 5 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 15 production lines for standard jumper and 8 PLC Splitter production lines. The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on. All of our optical products are RoHS compliant and also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, our fiber optic is looking forward to cooperate with you.
FAQ
Q1. Do you provide OEM ODM service ? Yes, we can print your logo or label on the products or on the box.
Q2. How can you guarentee the quality ? Build on our perfect quality management system, all of our products were 100% tested before the shipment.
Q3. What is your delivery time ? Generally, sample: 3~5 working days. formal order: 7-10 working days.
Q4. What's the method of shipment? We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.
Q5. What's the Payment? We accept all payments , such as LC,TT,DP,DA,Paypal,Western Union,Money Gram.
Q6. Do you provide sample service? A: Yes, we provide free or low price samples for you to test and check quality. Mixed samples are acceptable.
