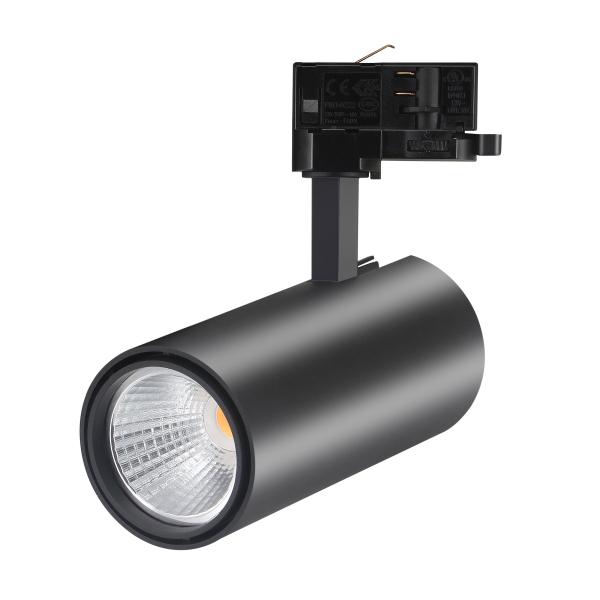

F1 plus Series Integrated LED track light, Lifud driver TYF Tri-color LED by DIP switch 90-120LM/W 80/90Ra track light

Categories	LED Ceiling Track Lights
Brand Name:	ADO
Model Number:	AD-TL-F01-20W
Certification:	ENEC, GS,TUV-CE,RoHS,CB,SAA,C-tick
Place of Origin:	China
MOQ:	100pcs
Price:	USD
Payment Terms:	T/T, L/C, Western Union, MoneyGram
Supply Ability:	2000pcs
Delivery Time:	3-7 days
Packaging Details:	including white/brown box, brown carton
CCT:	2700-6500K 3000-5000K
Power:	10W 15W 20W 25W 30W 35W
Led driver:	Lifud Brand
Voltage:	AC200-240V
PFC:	0.9
Track adapter:	4-wire 3-phase
Beam Angle:	15/24/38/60°
Dimmable:	DALI, TRIAC, 0/1-10V, BLE, ZigBee,RF
CRI:	CRI80+/90+
LED Chip:	TYF TW COB

Contact Now

Add to Cart

Company Info.

ADO ELECTRONICS LIMITED

View Contact Details

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

F1 plus Series Integrated LED track light, Lifud driver TYF Tri-color LED by DIP switch 90-120LM/W 80/90Ra track light

1. F1 plus Series Integrated LED track light Specification:

1. Body materials: ADC12 Die cast aluminum

2. CCT&CRI: 2000K, 2700K, 3000K, 3500K, 4000K, 5000K, 6500K, Ra>80/90/97

3. Optics & Beam angle: Lens and Reflector, 15/24/38/60°

4. Size & Wattage: D62X160mm (10-20W), D75x170mm (20-30W), D85x180mm (30-40W)

5. Track adapter: 2/3/4 wire 1 phase, 4/6 wire 3 phase

6. Dimmable solution: DALI, TRIAC, 0/1-10V, BLE, ZigBee,RF

7. Finish color: Matt White, Matt Black, Matt Grey and other customized color

8. Warranty: 5 years from the delivery time Lens version Reflector version

9. Certificates: CE ROHS, SAA

2. F1 plus Series Integrated LED track light Techinical Data :

3. Different Optics:

Both lens and reflectors are ok for this track light
Full beam angle:15/24/38/60°
80-140lm/W lumen output

4. Tri-Color By Switch: 3000/4000/5000K in one light

6. F1 series LED track light:

8. Installation Procedure:

9. Installation for track:

10. Applications:

1. Shopping malls (clothing stores, furniture stores and other brand stores),

2. Car displays, jewelry, star hotels, branded apparel, high-end clubs, museums, chain stores,

3. Brand business offices, professional windows, counters

11. Introduction:

This track light is an elegant design. High lumen COB chip and PMMA lens and Aluminum reflflector offffer a uniform

lighting output. Die-casing aluminum lamp body provides excellent heat dissipation.

Lens and reflflector design meet difffferent customer needs, and creates a comfortable visual experience. Multiple

beam angle lens and reflflector optional,Easy installation, recreational for various application.

12. Mechanical drawing:
