| Categories | Mini DC Motor |
|---|---|
| Brand Name: | Tronsun Motor |
| Model Number: | RF-020CH |
| Certification: | RoHS / ISO9001 |
| Place of Origin: | China |
| MOQ: | 100 |
| Price: | Negotiation |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 500kpcs/month |
| Delivery Time: | 15-25 working days |
| Packaging Details: | TBD |
| Product name: | 20000 rpm DC motor |
| Voltage Range: | 3v-6v |
| End cap: | Metal |
| Brush Type: | Metal brush or carbon brush |
| Shape: | Round |
| Shaft length: | Custom made |
| Motor Diameter: | 17.1 |
| Motor length: | 17.8 |
| Company Info. |
| Shenzhen Tronsun Motor Co., Ltd |
| View Contact Details |
| Product List |
High Quality Precious metal brush mini dc motor 3v 6v RF 020 dc motor for tatto machine
Model No.: RF-020CH
Application:
Tattoo machine
Home appliance
Electric shaver
Toys
Wireless control model
Features:
Output power 0.3-1.5W
Precious metal brush or carbon brush
17.1*17.8mm round housing
Oil-impregnated bearing
Bi-direction
1.5mm diameter stainless steel shaft

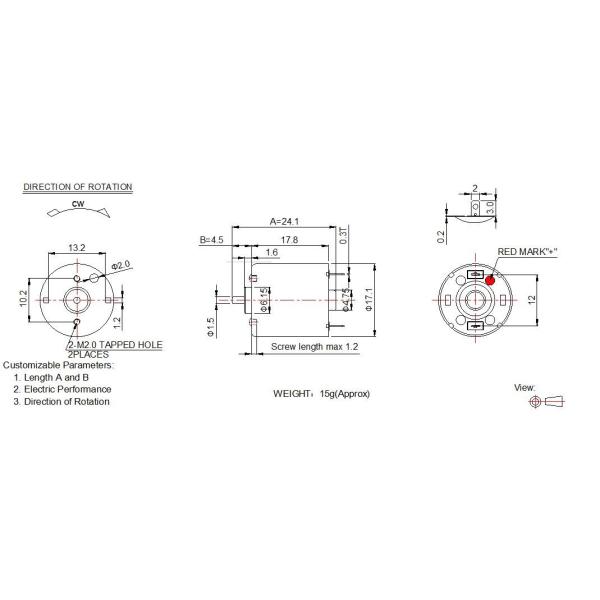

2D Drawing:

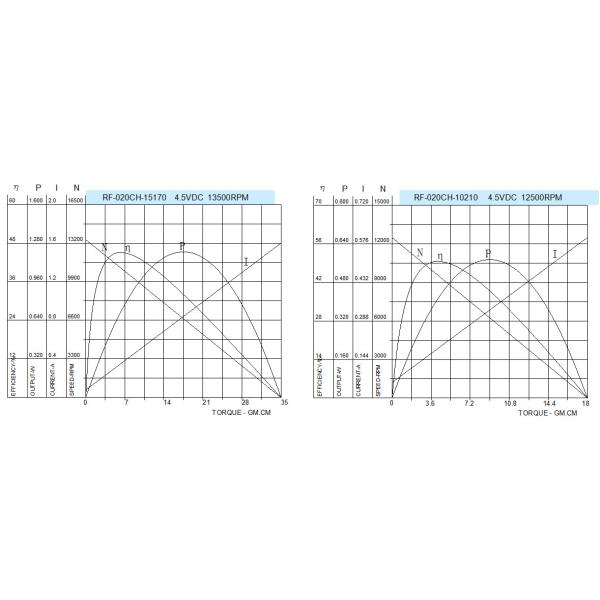

Motor Performance:
MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | ||||||||
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | |||
| V | rpm | A | rpm | A | g.cm | mN.m | W | g.cm | mN.m | A | ||
| RF-020CH-15170 | 2.0~5.0 | 4.5 | 13500 | 0.078 | 11058 | 0.35 | 6.3 | 0.62 | 0.72 | 35 | 3.43 | 1.6 |
| RF-020CH-10210 | 2.0~5.0 | 4.5 | 12500 | 0.058 | 9312 | 0.35 | 5.8 | 0.57 | 0.56 | 18 | 1.77 | 0.6 |
| RF-020CH-16125 | 2.0~4.0 | 3.0 | 11000 | 0.065 | 9100 | 0.12 | 5.1 | 0.50 | 0.48 | 30 | 2.94 | 1.55 |

Pls download the PDF document for referrence.

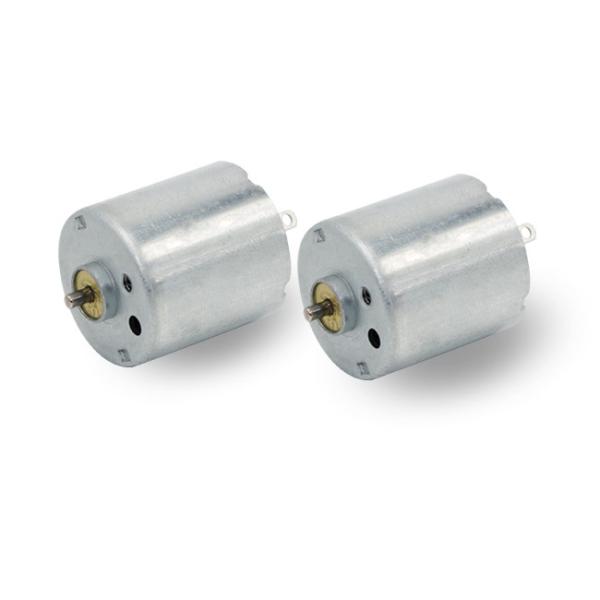

Product Showcase:

FAQ
Q: What's the minimum order quantity?
A: Our minimum order quantity depends on different motor models,
please email us to check. Also, we usually do not accept personal
use motor orders.
Q: What's your shipping method for motors?
A: For samples and packages less than 100kg, we usually suggest
express shipping; For heavy packages, we usually suggest air
shipping or sea shipping. But it all depends on our customers'
needs.
Q: What certifications do you have?
A: We currently have CE and ROSH certifications.
Q: Can you send me your price list?
A: Since we have hundreds of different products, and price varies
per different specifications, we are not able to offer a price
list. But we can quote within 24 hours once got your inquirues to
make sure you can get the price in time.
Q: Can I visit your company?
A: Yes, welcome to visit our company, but please let us know at
least two weeks in advance to help us make sure no other meetings
during the day you visit us. Thanks!
|
