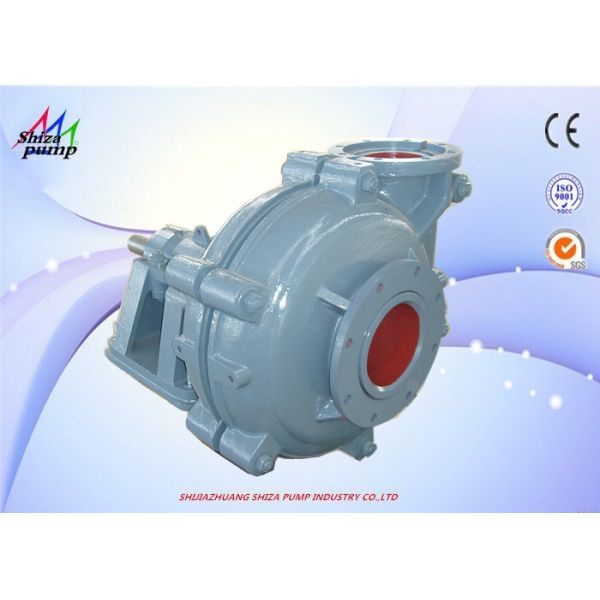

Single Suction Centrifugal Slurry Pump Wear Resistant CE / ISO Approved

Wear Resistant Single Suction Centrifugal Slurry Pump , CE And ISO Approved

Product overview

The lining of 8/6E- is made of high-chromium wear-resistant alloy. Lining is used for wear-out, extending maintenance intervals and reducing operating costs. The direction of the pump outlet can be rotated by 8 angle installation.Widely used in metallurgical,mining,coal,power,building material and other industrial departments etc.

Designed and bulit for long life with low maintenance:

1. Shaft Sleeve: A hardened, heavy-duty corrosion-resistant sleeve with “O” Ring seal at both ends protects the shaft. A slip fit allows the sleeve removed or installed quickly.

2. Centrifugal Shaft Seal: A large precentage of duties allow the use of the centrifugal seal which eliminates the need of sealing water.

3. Gland Shaft Seal: Apacked gland type shaft seal is also acailable and can be fitted with a low flow or a full flow flish seal water arrangement.

4. Shaft and Bearing Assembly: A large diameter shaft with a short overhang minimizes deflection and vibration. Heavy -duty roller bearings are housed in a removable bearing cartridge.

5. Pump Base: A minimum number of through bolts hold the pump casing to a the frame. A means of impeller adjustment is provided in a convenient positopn below the bearing housing.

6. Outer casing: Split outer casing halves of cast or dectile iron contain the wear liners and provide high operation pressure capabilities.

7. Impeller: The impeller may be either moulded elastomer or hard metal. Deep size sealing canes relieve seal pressure and minimize recirculation. Cast-in impeller threads are better suited for slurries.

8. Interchangeable Hard Metal and Moulded Elastomer Liners: Mating faces in hard metal liners are tapered to allow positive alignment during assembly and allow components to be easily removed for replacement. Hydraulic seal rings give positive sealing between mating faces

Specifications

Type meaning

Advantages of 8/6 E- slurry pump

-Wear resistant metal or rubber wet end parts, long service life

-Wide options for impeller

-Various types of pump seals to suit different working condition

-Grease or oil lubrication

-Discharge branch can be positioned at intervals of 45 degree

-Can be installed in multistage series
-Easy to maintain

Structure of slurry pump

Shaft Seal Module Design

Shijiazhuang ShizaPump Industry Co.,Ltd. founded in 2008, is a professional industrial pump manufacturer engaged in researching slurry pump, wear and corrosion resistant materials and OEM processing.

Shizapump group covers more than 40000 square meters, the registered capital is 18 million yuan. Over the years with strong strength and people-oriented concept, we absorb a large number of high-quality management and technical talents. Existing staff is more than 220 people, of whom 30% are technicians.

Our production area covers an area of 24000 square meters, the total production capacity of an annual output is 10000 units (sets), and the annual output of all kinds of high chromium alloy castings is 2000 tons.The production area is divided into five districts one area and two centers, namely mould casting, heat treatment, fine machining, forge welding and assembly coating of five production areas; finished spare parts; quality analysis and water experiment. The main material of products: A05, A49, A33, A51 and other high chromium white cast iron.

Shijiazhuang ShizaPump Industry Co.,Ltd. fully implements the ISO9001 management system and observes the process of inspection. Quality inspection records are available in all production processes. Professional instruments include spectrometer, metallographic analyzer, flaw detector, mechanical test machine (strain, impact, hardness), magnetic flowmeter, pressure gauge, ammeter, vibration meter, noise meter, hydraulic experimental curve of professional software. Perfect detection guarantees the quality of equipment to ensure that each pumps and parts are fully in line with the requirements.

Shijiazhuang ShizaPump Industry Co.,Ltd. has spread all domestic market in China over 30 provinces and municipality. Also has been successfully used in 20 countries in global .First line staff have professional experience to provide service for customers.
