led kitchen ceiling track lighting dimmable 40W White aluminum housing 15° beam angle 5000K IP44 5years warranty

Categories	LED Ceiling Track Lights
Brand Name:	ADO
Model Number:	AD-TL-O-40W
Certification:	ENEC, GS,TUV-CE,RoHS,CB,SAA,C-tick
Place of Origin:	China
MOQ:	100pcs
Price:	USD
Payment Terms:	T/T, L/C, Western Union, MoneyGram
Supply Ability:	2000pcs
Delivery Time:	3-7 days
Packaging Details:	including white/brown box, brown carton
CCT:	2700/3000/4000K
Power:	40W
Led driver:	Power gear
Voltage:	AC200-240V
Size:	D110*L90mm
Track adapter:	4-wire 3-phase
Beam Angle:	15/24/38/60°
Dimmable:	DALI, TRIAC, 0/1-10V, BLE, ZigBee,RF
CRI:	CRI80+/90+/97
LED Chip:	Citizen Version 6
Material:	Die-casting Aluminum Alloy
THD:	<15%
IP Rating:	IP44
Fixture Color:	WHite Black
Series:	O Series

Contact Now

Add to Cart

Company Info.

ADO ELECTRONICS LIMITED

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

led kitchen ceiling track lighting dimmable 40W White aluminum housing 15° beam angle 5000K IP44 5years warranty

track ceiling lights 25W 2500LM 80Ra Flicker free IP44 AC220V Citizen Chip Power gear driver for commercial lighting

1. LED track light Techinical Data :

Technical Specification						Driver
LED brand	Citizen Version 6	Driver brand	Power gear +Osram	Housing materials	Die-casting Aluminum Alloy	Driver in track
CCT	2700/3000/4000K	Output Voltage	DC36V	IP Rating	IP44	Powergear no flicker
CRI	80/90/97	Current	250mA	Finish color	White / Black	Global fliker free
Lamp efficiency	90-100lm/W @CRI80 /90/97	Input Voltage	AC200-240V	THD	<15%	Lifud no flicker
Lens beam angle	15°/24°/38°/60°	PF	>0.9	Dimmable	Yes	Osram no flicker
Track adapter	4-wire 3-phase	System wattage	40W	Warranty	5 years	Powergear TCI DALI

2. track ceiling lights 25W Introduction:

This track light is an elegant design. High lumen COB chip and PMMA lens and Aluminum reflflector offffer a uniform

lighting output. Die-casing aluminum lamp body provides excellent heat dissipation.

Lens and reflflector design meet difffferent customer needs, and creates a comfortable visual experience. Multiple

beam angle lens and reflflector optional,Easy installation, recreational for various application.

3. track ceiling lights 25W Features:

-Lens & reflflector design.

-CRI 80/90/97Ra available.

-Modular lens and reflflector design: 15°/24°/38°/60°

-Flicker free internal driver.

-Dimming way: Non-dim, triac dim, DALI dim.

-Power: 10w, 15w, 20w, 25w, 30w, 35w,40w, 45w

-LED Driver Options: Lifud, Powergear, Osram, Global

4. Lumen Data:

Model No.	CCT	CRI	LED Power	System Power	LED Output	System Output
AD-TL-O-15W	2700K	CRI97/90/80	12.5W	15W	1750LM	1500LM
AD-TL-O-20W	3000K	CRI97/90/80	18W	20W	2400LM	2000LM
AD-TL-O-25W	4000K	CRI97/90/80	22.5W	25W	3000LM	2500LM
AD-TL-O-30W	3000K	CRI97/90/80	27W	30.5W	3600LM	3000LM
AD-TL-O-35W	4000K	CRI97/90/80	29.5W	34.5W	3900LM	3400LM
AD-TL-O-40W	5000K	CRI97/90/80	34.5W	39.5W	4600LM	3900LM

4. track ceiling lights 20W Specification:

1. Track adapter: 2/3/4 wire 1 phase, 4/6 wire 3 phase

2. Size & Wattage: D62X140mm(10w, 15w), D90x108mm(20w, 25w, 30w), D110x150mm(35w, 40w, 45w)

3. Optics & Beam angle: Lens and Reflector, 15/24/38/60°

4. CCT&CRI: 2000K, 2700K, 3000K, 3500K, 4000K, 5000K, 6500K, Ra>80/90/97

5. Finish color: Matt White, Matt Black, Matt Grey and other customized color

6. Body materials: Die cast aluminum

7. Dimmable solution: DALI, TRIAC, 0/1-10V, BLE, ZigBee,RF

8. Warranty: 5 years from the delivery time Lens version Reflector version

9. Certificates: CE ROHS, SAA

5. Packing Details:

Code	Dimension(mm)			Size(mm)	Produce Weight(kg)		Carton Weight(kg)		Carton Size	Qty/ CTN
Code	A	B	C	Size(mm)	N.W/ PC	G.W/ PC	N.W/ CTN	G.W/ CTN	Carton Size	Qty/ CTN
AD-TL-O-10W	L140	D62	L160	D62*L140	0.45	0.55	13.5	16.5	443742	30
AD-TL-O-15W	L140	D62	L160	D62*L140	0.45	0.55	13.5	16.5	443742	30
AD-TL-O-20W	L108	D90	L160	D90*L108	0.85	0.95	17	19	543940	20
AD-TL-O-25W	L108	D90	L160	D90*L108	0.85	0.95	17	19	543940	20
AD-TL-O-30W	L108	D90	L160	D90*L108	0.85	0.95	17	19	543940	20
AD-TL-O-35W	L150	D110	L160	D110*L150	1.07	1.17	17.12	18.72	594340	16
AD-TL-O-40W	L150	D110	L160	D110*L150	1.07	1.17	17.12	18.72	594340	16
AD-TL-O-45W	L150	D110	L160	D110*L150	1.07	1.17	17.12	18.72	594340	16

6. Application:

Applicable for residential lighting in bedroom, living room, corridor etc, also suitable for commercial lighting in office, hotel, restaurant etc.

7. Installation Procedure:

8. Dali Driver Installation:

9. Track installation:CEILING MOUNTED:

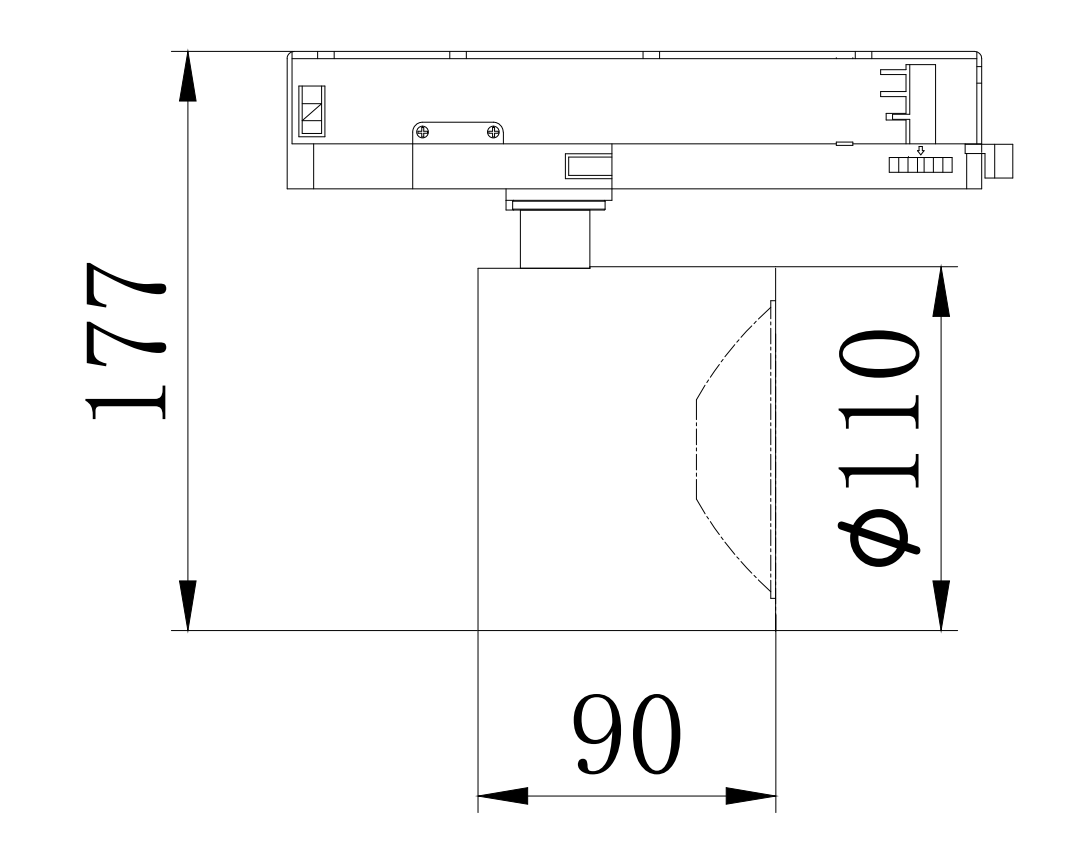

10. 40W Mechanical drawing D110*L90mm:

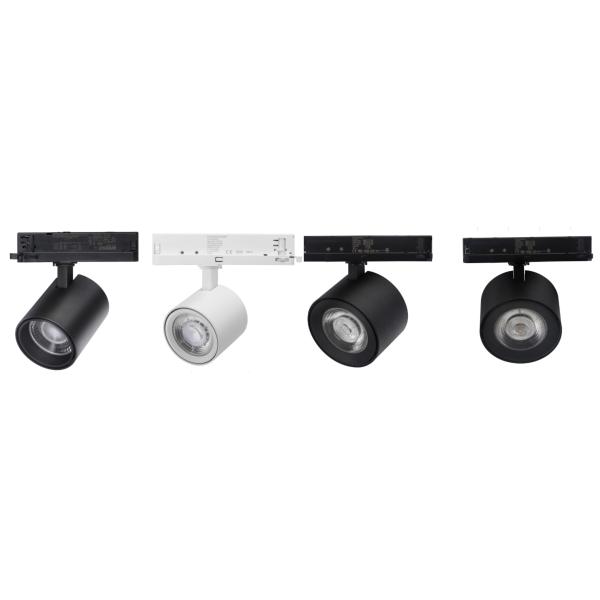

11. Picures of LED Track Lights:

12. Remarks

MOQ: 100pcs, if order quantity is less than MOQ, price will be 10% higher.

Deliery time: 7-15 Working days

Payment: Small order 100% paymentsi in advanced; over 10000 USD can pay 30% deposit, 70% before shipment

Packing: Only including white/brown box, brown carton, for customized color box/ label and laser marking, please contact us to negotiate the extra cost.
