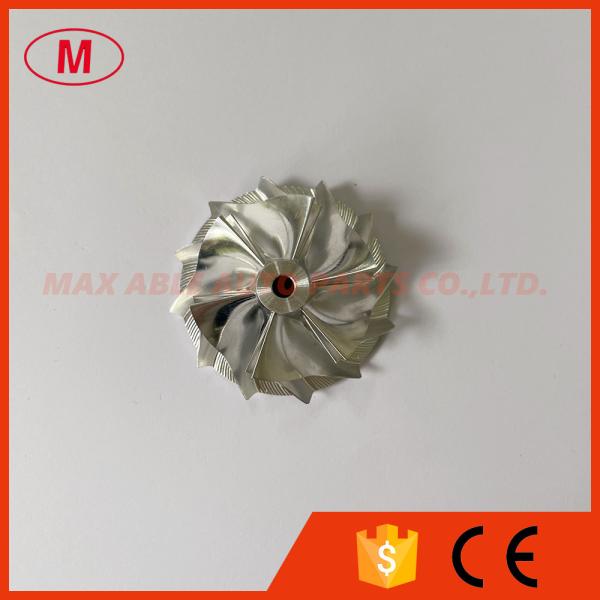

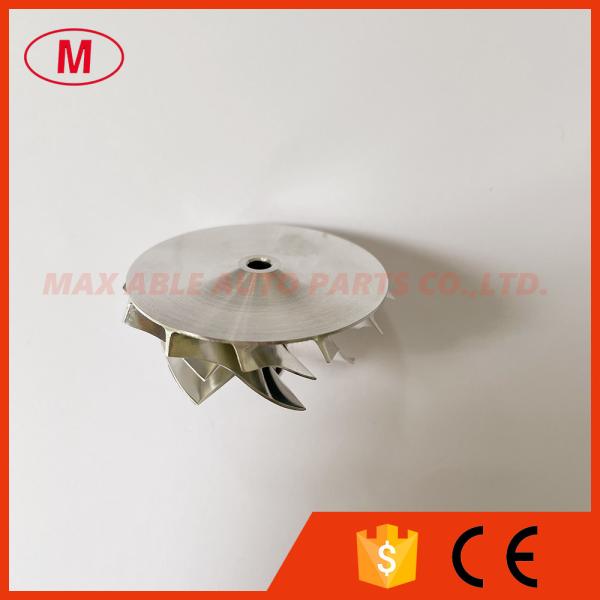

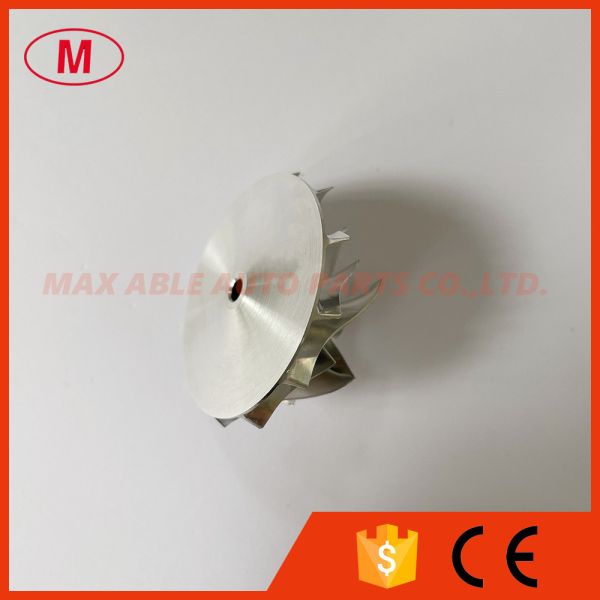

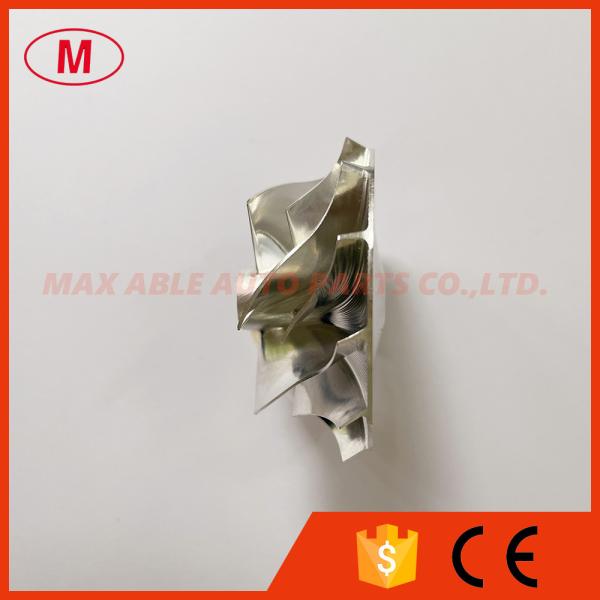

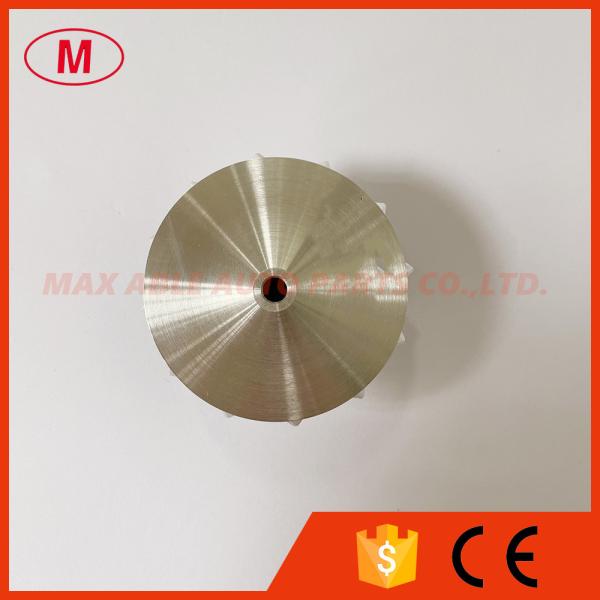

TD03 35.09/44.01mm 6+6 blades 1401-403-401 Turbo milling/aluminum 2618/billet compressor wheel for 49131-05400/08610

1. MODEL:TD03 forward

2.TD03 35.09/44.01mm 6+6 blades 1401-403-401 Turbo Billet/milling/aluminum 2618 compressor wheel for 49131-05400/08610/5210/05211/05212/05252/05312/05313/05353/05401/05402/05403/05452

3.Size:

Nose Diameter:9.67mm

Inducer:35.09mm

exducer:44.01mm

Tapered tip exducer:47.57mm

Tip height:4.09mm

Superback:1.68mm

bore size :4.00mm

bore type:through

Overall height:21.60mm

Trailing angle:30 degree

Blade height:17.14mm

Cutback:0.0mm

Sp Height angle:-3.60

Splitter height:11.65mm

Tapered tip angle: 30 degree

6+6 blades forward

It is for OE compressor housing

4.High quality and competitive price.

5.if you want more details, please send email to me.

All the compressor wheels have been balanced.
