EX270-1 Swing Gearbox Assy For EX300-1 Excavator Swing Drive 9083736

Categories Excavator Swing Gearbox
Brand Name: TGFQ
Model Number: EX300-1 EX270-1
Place of Origin: CHINA
MOQ: 1
Price: 200.00-800.00USD
Payment Terms: L/C, T/T, D/P, D/A
Supply Ability: 500 pcs / month
Delivery Time: 2-3days
Packaging Details: NNER PACKING: Wrap by plastic film, clear label for each item. OUTER PACKING: Carton or Plywood Case PACKING SIZE: Depend on packing type
Product Name: Komatsu Swing Gearbox Assy
Part Number: 9083736 / 9097706
Model: EX300-1 EX270-1
Outer Packing: wooden case
Shaft: 14/42T
Port: Huangpu,Guangzhou
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

EX270-1 Swing Gearbox Assy For EX300-1 Excavator Swing Drive 9083736

TGFQ Factory EX270-1 Swing Gearbox Assy For EX300-1 Excavator Swing Drive


Product Parameter:

Product Name: Excavator Swing Gearbox Assy

Place of Origin: China (Mainland)

Model: EX300-1 EX270-1

Part Number: 9083736 / 9097706

MOQ: 1 PCS

Payment term: L/C, T/T, D/P, D/A

Delivery time: Within 1-3 days after receiving the payment

Means of Transport: By Sea, By Air or By Express

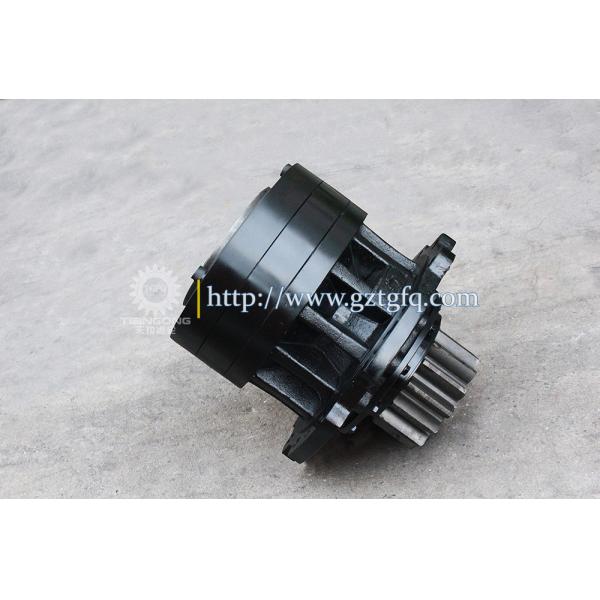

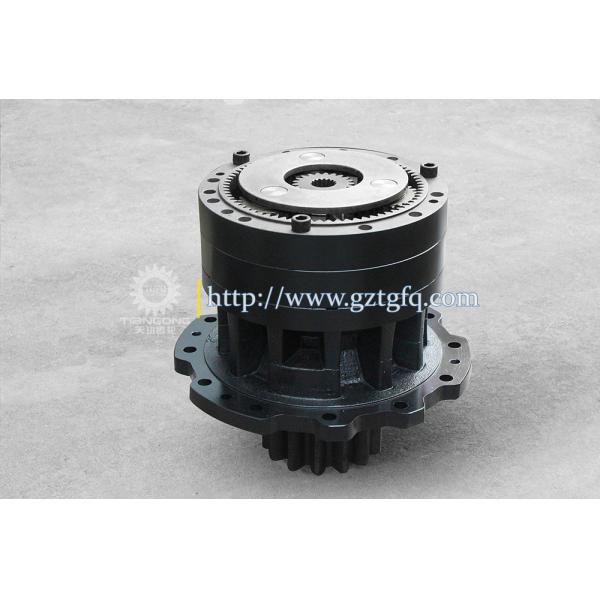

EX300-1 Product Photo:

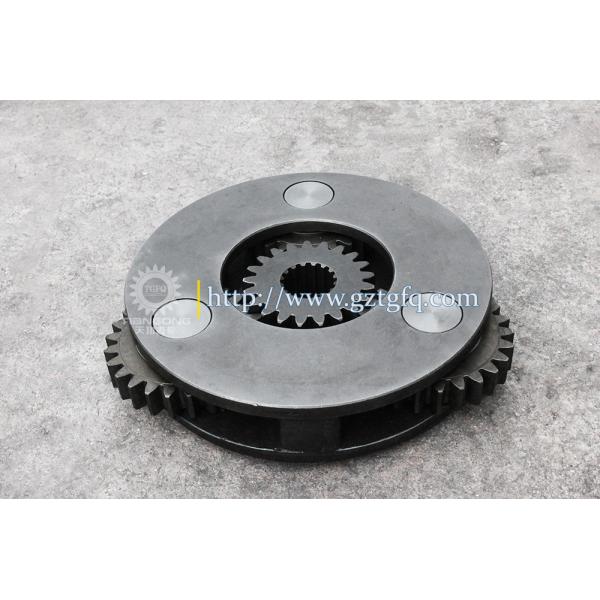

EX300-1 Parts Photo:

EX300-1 Swing Drawing:

Parts on group SWING DEVICE:

Pos.Part NoQtyParts NameComments
22023371[1]CARRIER
34194454[2]PLATE;THRUST
44187588[3]PIN
51010618[1]HOUSING
6986954[6]PIN;SPRING
73036571[1]GEAR;SUN
93036572[3]GEAR;PLANETARY
114187318[3]BRG.;NEEDLE
129726338[3]GEAR;PLANETARY
134187591[12]PLATE;THRUST
15991354[1]RING;RETAINING
164176247[1]BRG.;SPH.ROL.
174019558[1]BRG.;ROL.Y 4305425
174305425[1]BRG.;SPH.ROL.
19J401640[2]PIN;KNOCK
202023381[1]GEAR;INTERNAL
222023369[1]SHAFT;PROP.Y 2034610
222034610[1]SHAFT;PROP.
30J901235[10]BOLT
31A590912[10]WASHER;SPRING
322024789[1]SLEEVE
344187681[1]SEAL;OILY 4250326
344250326[1]SEAL;OIL
39A811140[1]O-RING
464194712[1]COCK
483039026[1]COVER
494204138[1]O-RING
504206425[1]RING;RETAINING
514204644[2]MAGNET
524204645[2]SCREW
5394-2024[1]PLUG
542024993[1]CARRIERY 2033936
542033936[1]CARRIER
554207808[3]PINY 4244694
554244694[3]PIN
563039518[1]GEAR;SUN
572024994[1]GEAR;INTERNAL
618043498[1]COVER(for transportation)
62J902015[6]BOLT(for transportation)
63A590920[6]WASHER;SPRING(for transportation)
644232537[1]SHIM 0.5(for transportation)(for transportation)
654232696[3]SHIM 1.0(for transportation)
114959499[1]RING;RETAINING
124J912013[12]BOLT
124J912013[12]BOLT
124J912016[12]BOLTI J912017
124J912017[12]BOLT
124J912017[12]BOLT
125A590920[12]WASHER;SPRING
128J932270[12]BOLT
129A590922[12]WASHER;SPRING
1374080398[2]PIN;KNOCK
14194-2025[1]PLUG
1443035979[1]GAUGE;LEVELI 3043290
1443035979[1]GAUGE;LEVEL
1443043290[1]GAUGE;LEVEL
1443043290[1]GAUGE;LEVEL
1454191879[1]PIPE
1454191879[1]PIPE
1454229787[1]PIPE
1454229787[1]PIPE
1584197829[1]MOTOR;OIL
1584197829[1]MOTOR;OIL
1584224993[1]MOTOR;OIL
1584224993[1]MOTOR;OIL
1593053093[1]NAME-PLATE
160M492564[2]SCREW;DRIVE
2009083736[1]SWING DEVICEY 9097706 (WITHOUT MOTOR)
2009097706[1]SWING DEVICE(WITHOUT MOTOR)

What is the function of swing motor on excavator?
Swing motors (sometimes called swing drives) provide the powerful turning force of excavator booms using hydraulic oil pressure and are finely engineered to ensure trouble-free operation and performance.

OUR STOCK

We have more than 4000 square meters of three-dimensional warehouse and more than 2000 square meters of outdoor warehouse
It ensures that we have sufficient inventory and respond to customers' needs faster. Fast delivery is our advantage

FAQ:
Q: Can I order one of our samples for testing first?
A: Of course!


Q: How do I order?
A: You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order.


Q: Do you have a factory?
A: Yes, we have our own factory and have 23 years of production experience in the excavated gear industry.
